Description
+/- 10-15VDC IN, 24VDC OUT 30W High Power DC to DC Converter/PoE inserter. 10/100Mb.
- Input Voltage +/- 10-15VDC
- Output 24VDC Passive PoE
- Integrated 10/100Mb PoE Inserter
- High Power of 30W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation 60°C
- Removable Wire Terminal Input for up to 12AWG wires

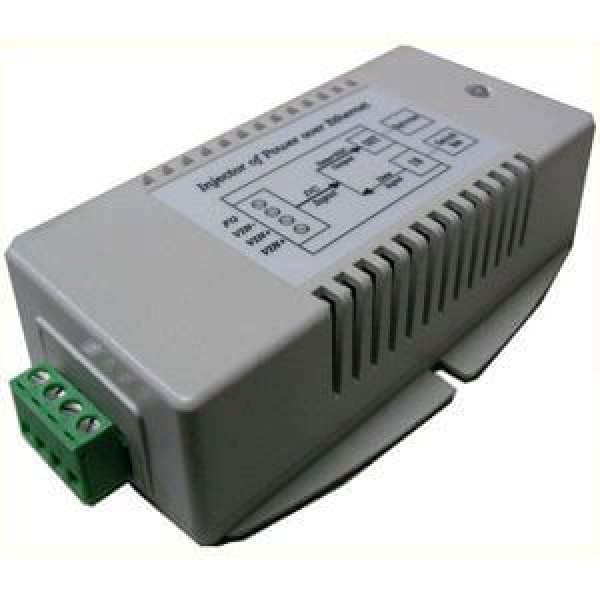

The TP-DCDC-1224-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a +/-12V battery system.
They have an integrated 10/100Mb Passive PoE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 10VDC and 15VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 30W.
Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)
