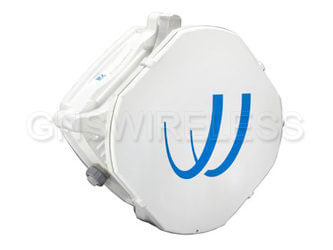

AR80-AES, 1.25 Gbps, Full-Duplex, med-range link, 80GHz U.S. licensed, AdaptRate, AES Encryption, SECURE-MGT, 12″ external antennas

Name: AR80-AES, 1.25 Gbps, Full-Duplex, med-range link, 80GHz U.S. licensed, AdaptRate, AES Encryption, SECURE-MGT, 12" external antennas
Brand: BridgeWave
SKU: AR80-AES
Availability: InStock

$0.00

Part #: AR80-AES

1.25 Gbps, Full-Duplex, med-range link, 80GHz U.S. licensed, AdaptRate, AES Encryption, SECURE-MGT, 12″ external antennas

Request Quote

Brand: BridgeWave

Availability:	Contact Us
MFG Part #:	AR80-AES
Category:	80 GHz Point-to-Point

Description

1.25 Gbps, Full-Duplex, med-range link, 80GHz U.S. licensed, AdaptRate, AES Encryption, SECURE-MGT, 12" external antennas, 1000Base-SX (LC), 10/100 Add Drop Port, 1 year warranty, export restrictions

Additional information

Weight	100.0000 lbs
Availability	Contact Us
MFG Part #	AR80-AES

Reviews

There are no reviews yet

Be the first to review “AR80-AES, 1.25 Gbps, Full-Duplex, med-range link, 80GHz U.S. licensed, AdaptRate, AES Encryption, SECURE-MGT, 12″ external antennas”

You must be logged in to post a review.

Broadband Frequency Band	80 GHz
Sub Band	None
Data Rate	1.25 Gbit/s
Frequency Range	71-86 GHz
Ethernet Capacity	1.25Gbps
Description	Complete AR80 Gigabit Ethernet Link with Adaptive Rate and Advanced Encryption Software (AES). 1.25 Gbps,full duplex. Includes wall and mast mounts. Integrated 12" Antennas.
Broadband System Configuration	All Outdoor
Interface	10/100/1000 Base-T with RJ45
Modulation	Adapt Rate
Security/Encryption	AES-256
Temperature Range	-33-55 deg C
Compression	No
Item Width	11.8 in
Item Height	4.72 in
Item Length	11.8 in
Carrier Aggregation	Single Carrier
Proprietary Antenna Interface	BridgeWave Proprietary Interface
Channel Bandwidth	1400MHz
Power Consumption	45W Max
Operating Voltage	100-240 VAC Input, +24 VDC Output
Mfg. Warranty	1 Year
