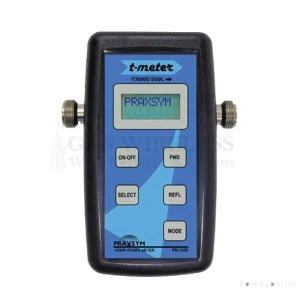

Part #: PM-2458
The Praxsym T-Meters provide the only hand-held solution for easily making measurements of forward power, reflected power and VSWR. Having a t-meter allows for quick and effective troubleshooting and verification of newly installed system-level hardware.
Without in-line attenuation, each meter will directly measure RF signals from 0dBm to +20dBm. With a 10dB inline attenuator, readings are scaled up to a range of +10dBm to +30dBm. With a 20dB attenuator, readings are scaled from +20dbm to +40dBm. With a 30dB attenuator, readings are scaled from +30dbm to +50dBm.
This wireless network test equipment captures peak power over a 200mSec window so that it is ideal to measure peak power of 802.11 CDMA packetized communications. The peak detection circuit will capture a transmission as short as 500 microseconds and hold the measurement for one second.
Tactile switches are integral to the main electronics board and sealed from the elements by a weather-resistant overlay.

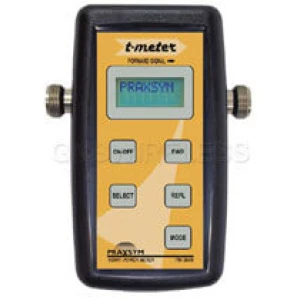

Part #: PM-3500
PM-3500, Praxsym T-Meter Broadband Wireless Power Meter for 3.5GHz Frequency bands$1,995.00 Add to cart

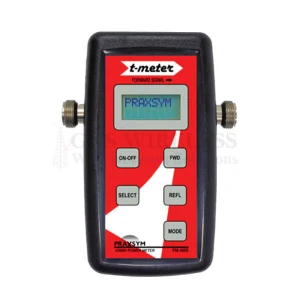

Part #: PM-4900
PM-4900, Praxsym T-Meter Broadband Wireless Power Meter for 4.9GHz Frequency bands$1,995.00 Add to cart
Part #: PM-6000
PM-6000, Praxsym T-Meter Broadband Wireless Power Meter for 6GHz Frequency bands$2,195.00 Add to cart

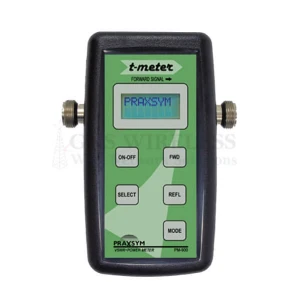

Part #: PM-900
PM-900, Praxsym T-Meter Broadband Wireless Power Meter for 900MHz Frequency bands$1,999.00 Add to cart
- Measure Forward Power, Reflected Power & VSWR
- All meters cover 2.4GHz, 5.3GHz, 5.4-5.7GHz* and 5.8GHz license-exempt bands, with application-specific coverage for 4.9GHz (PM-4900), 900MHz (PM-900), 3.5GHz (PM-3500), and the upper & lower 6GHz bands (PM-6000)
- Simple operation
- Small size (4.9" x 2.7", easily stores in your pocket or toolbox)
- Temperature range -10C to 50C
- Weight 10 oz.
- 10dB attenuator, N-N male adapter and 50Ω termination included
*the PM-2458 may be used out of specified coverage at 5.4-5.7GHz, see the FAQ document for more information
