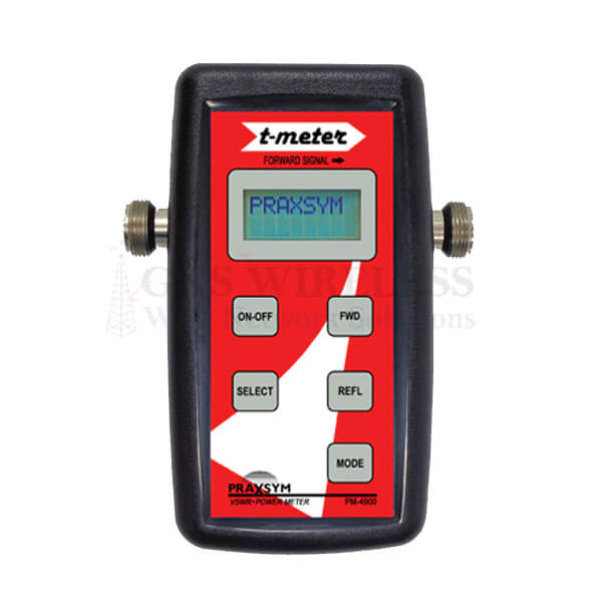

PM-4900, Praxsym T-Meter Broadband Wireless Power Meter for 4.9GHz Frequency bands

$1,995.00

Part #: PM-4900

Praxsym Broadband Wireless Power Meter for 4.9GHz Frequency

Brand:
Special Order
Availability: In Stock
MFG Part #: PM-4900
Category:

Description

The t-meter family provides the only hand-held solution for easily making measurements of forward power, reflected power and VSWR. Having a t-meter allows for quick and effective troubleshooting and verfication of newly installed system-level hardware. Without in-line attenuation, each meter will directly measure RF signals from 0dBm to +20dBm. With a 10dB inline attenuator, readings are scaled up to a range of +10dBm to +30dBm. With a 20dB attenuator, readings are scaled from +20dbm to +40dBm. With a 30dB attenuator, readings are scaled from +30dbm to +50dBm.

The Meter captures peak power over a 200mSec window so that it is ideal to measure peak power of 802.11 CDMA packetized communications. The peak detection circuit will capture a transmission as short as 500 microseconds and hold the measurement for one second. Tactile switches are integral to the main electronics board and sealed from the elements by a weather-resistant overlay. Family Features: * Measure Forward Power, Reflected Power & VSWR * All meters cover 2.4GHz, 5.3GHz, 5.4-5.7GHz and 5.8GHz license-exempt bands, with application-specific coverage for 4.9GHz (PM-4900), 900MHz (PM-900) and 3.5GHz (PM-3500) * Simple operation * Small size (4.9" x 2.7", easily stores in your pocket or toolbox) * Temperature range -10C to 50C * Weight 10 oz. * 10dB attenuator, N-N male adapter and 50 Ohms termination included

The Meter captures peak power over a 200mSec window so that it is ideal to measure peak power of 802.11 CDMA packetized communications. The peak detection circuit will capture a transmission as short as 500 microseconds and hold the measurement for one second. Tactile switches are integral to the main electronics board and sealed from the elements by a weather-resistant overlay.

Additional information

Weight 10.0000 lbs
Availability

In Stock

MFG Part #

PM-4900

Downloads

PM4900_Datasheet.pdf Size: (573.79 KB)
