Description

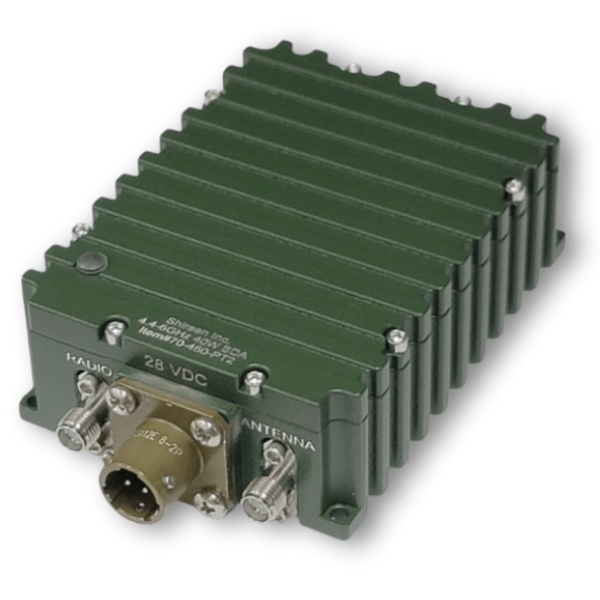

4.4 – 6.0 GHz, 40 Watt Bi-directional Amplifier
This miniature 40-watt amplifier is the highest power amplifier configured in its size and weight. Weighing in at 7.5 Oz enclosed, it comes equipped with the latest rapid switching technology while providing high performance for SDRs and other high-speed modulated, embedded RF, fixed, mobile, and aerial platforms.
- Offered in military bands of 4.4~5GHz and 5~6 GHz
- Manual switching via 3V / 5V TTL
- 26 dB of Tx gain makes it ideal for low output-power radios
Available in OEM packaging for system integrators and developers
Due to the high RF power outputs, these units are only offered for sale to Military, OEM, Licensed, or overseas customers.
Electrical Specifications
-
Frequency Range:
-
Version A: 4400 – 5000 MHz
-
Version B: 5000 – 6000 MHz
-
-
Operating Mode: TDD (Time Division Duplex)
-
Transmit Peak Power: 46 dBm
-
Transmit Gain: 26 dB (±1 dB)
-
Transmit Input Power: -4 dBm min, 28 dBm max
-
T/R Switching: Auto switching <1 µs, or manual 3V / 5V TTL
-
Receive Gain: 10 dB (±2 dB)
-
Noise Figure: <5 dB
-
LED Indicators: Red = Receive (default mode); Green = Transmit
-
DC Power Input: 28 VDC
-
Power Consumption:
-
30 mA (Rx)
-
1.6 A @ 10 W Tx CW
-
2.2 A @ 20 W Tx CW
-
3.4 A @ 40 W Tx CW
-
-
Operating Temperature: -40 °C to +70 °C (with appropriate heatsinking)
-
Temperature Sensor: Optional (per customer request)
Mechanical Specifications
-
Dimensions: 3.26” (82.8 mm) x 2.4” (60.7 mm) x 1.00” (25.4 mm)
-
Weight: 7.5 oz (212 g)
-
Connectors: Standard PT2 (Micro-D optional)
