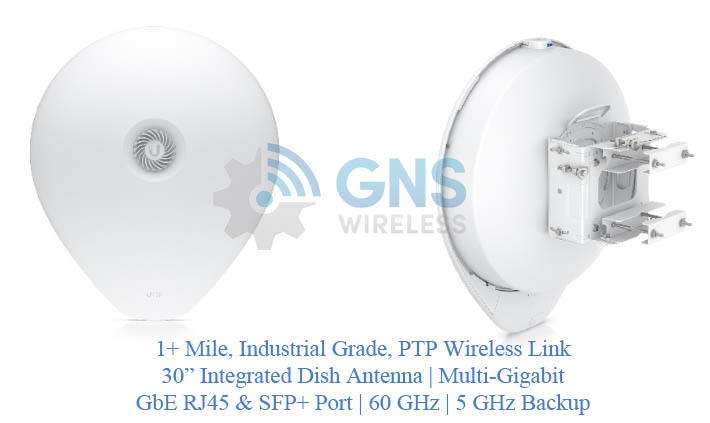

60 GHz Industrial Grade PTP Wireless Bridge, 3 Gbps, PoE, 5 GHz RF Backup

1. Frequency band: 57-66 GHz

2. Channel bandwidth: 2160 MHz/4320 MHz (with channel bonding enabled)

3. Modulation: 256 QAM

4. Up to 3.8 Gbps (1.9 Gbps DL and 1.9 Gbps UL) PTP MODE

5. Future channel bonding feature will increase capacity to up to 6 Gbps

6. Range: Up to 1 mile

7. Antenna gain: 30 dBi

8. Radio interface: 2×2 MIMO

9. Ethernet interface: 1x 10/100/1000 Base-T Ethernet (RJ45)

10. Power consumption: 31W (typical)

11. Power supply: PoE+ (802.3at)

12. Operating temperature: -40°C to +55°C

13. Dimensions (W x H x D): 779 x 664 x 383 mm (30.68 x 26.14 x 15.06″)

14. Weight: 28 lbs (including mount)

15. Processor Quad-Core ARM® Cortex
    ® A72 at 1.6 GHz
    Memory 2 GB DDR4

16. Networking interfaces (1) GbE RJ45 port |  (1) 1/10G SFP+ port
17. Wind Loading:  422 N at 200 km/h (94.86 lbf at 125 mph)
18. Operating Channels:  58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
    *depending on the channel bandwidth

These specifications make the GNS-5462-XG PTP link ideal for high-bandwidth applications such as video streaming, wireless backhaul, and high-speed data transfer over medium distances. The use of the 60 GHz band also means that interference from other wireless networks is minimized, resulting in reliable and secure connectivity.  Clear, un-obstructed line of sight is required.  Although 60 GHz is superior for point to point backhauls, and high throughput connectivity, LOS is highly recommended.

What’s included in this  60 GHz Wireless Bridge (complete link):

• 2x Outdoor 60GHz 802.11A Bridge Antennas
• 2x Gigabit Power over Ethernet Injector US-POE
• 2x 50ft. Shielded cat6e Ethernet Cable
• 2x Pole Mount Hardware for 1-2″ OD mast
• 2x Inline Surge Protectors
• Pre-Configured for Plug-N-Play
• US Based Technical Support
• Free Cloud Configuration
