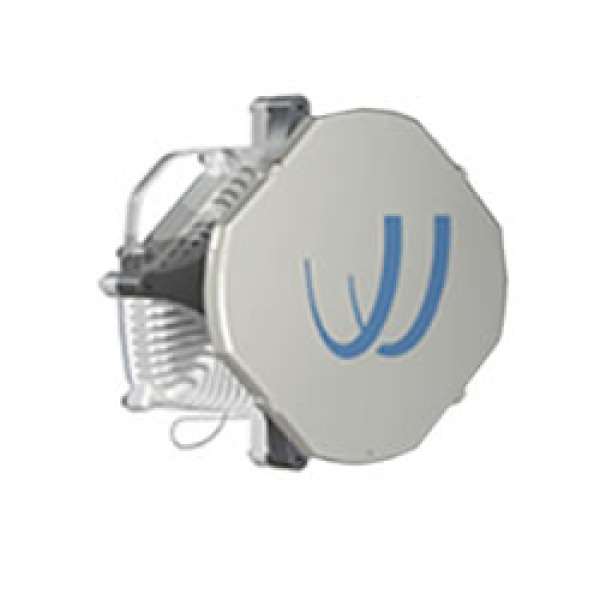

Bridgewave 80GHz, 5Gbps Wireless Backhaul, Complete Link. Upgradable to 9.7Gbps.


Contact Us

Part #: FL4G-10000

FL4G-10000, 5Gbps wireless backhaul, complete link, 80GHz

Availability: In Stock
MFG Part #: FL4G-10000


Ultra High Capacity 80GHz point to point wireless backhaul from Bridgewave.  The FL4G-10000 provides up to 5Gbps, and is upgradable to 9.7Gbps.  These are high reliability, high throughput, long distance links.

Performance Specifications:

* Upgradable to 9.7 Gbps data rate per 1+0 radio

* 1+0, 1+1 HSB, 2+0 Interface configuration supported

* Adaptive Code Modulation from QPSK through 256QAM

* Zero-footprint ODU with low power consumption and Power-over-Ethernet

* 500MHz, 1000MHz, and 2000MHz bandwidth support

* Highest bit/Hz spectral efficiency at the longest link distances

* Outstanding RF performance in the 80GHz band

* LDPC FEC providing threshold improvement over other FEC technologies

* RF channel tuning in 250 MHz steps

* FL4G-10000 uses ATPC or Automatic Transmit Power Control

Additional information

Weight 100.0000 lbs

In Stock

MFG Part #





Fl4G-10000 Specs Size: (162.11 KB)
