Description

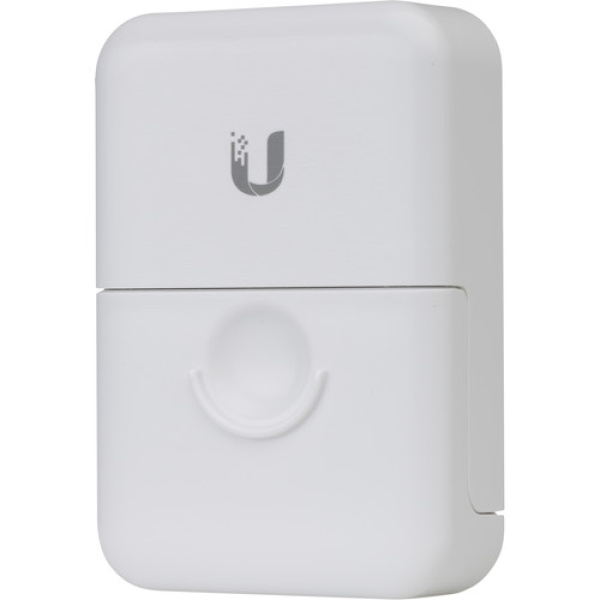

Gigabit Inline Surge Protector

The Ubiquiti Gigabit Network Interface Device (NID) is a sleek and cost-effective surge protector or arrestor. It’s designed for exterior wall mounting, providing outdoor technician access, ESD (electrostatic discharge) protection and grounding point for any installation that requires Ethernet cabling. The dust and water resistant design on this Gigabit Inline Surge Protector has a foam cable entry seal and a security fastener tie point.

Features:
• Compatible with Gigabit Networks
• Additional ESD Protection
• Plug and Play Installation

Product Specifications
• Dimensions: 91 x 61 x 32.5mm (3.58 x 2.4 x 1.28″)
• Weight: 80g (2.82oz)

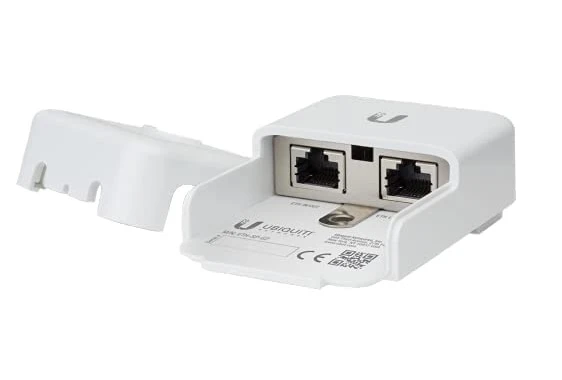

• Interface Connections: (2) RJ45 Female Connectors
• ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/us
• DC Spark-Over Voltage: 90V @ 100V/s
• Maximum Impulse Spark-Over Voltage: 700V @ 1kV/us
• Discharge Current: 5kA (maximum) / 0.5kA (normal)
• Maximum Insulation Resistance: 1GΩ @ 50V
• Maximum Capacitance: 1.0pF @ 1MHz
• Data Line Protection: RJ45 10/100/1000 Ethernet
• IEEE 802.3af PoE Support: Yes
• Shock and Vibration Certification: ETSI300-019-1.4 Standard
• Operating Temperature: -30 to 65°C (-22 to 149°F)
• Operating Humidity: 10 to 90% non-condensing
