Description

This is the FL4G-LITE, which is a complete link.  This is a paired radio set.  You get 2 antennas.

Please note, the FL4G-LITE-H is a spare radio set to High Frequency, and the FL4G-LITE-L is a spare radio set to Low Frequency.

The demand for point to point wireless backhaul capacity is constantly increasing.  BridgeWave responds with an ultra-high capacity 80GHz wireless bridge system offered at industry-leading price points.

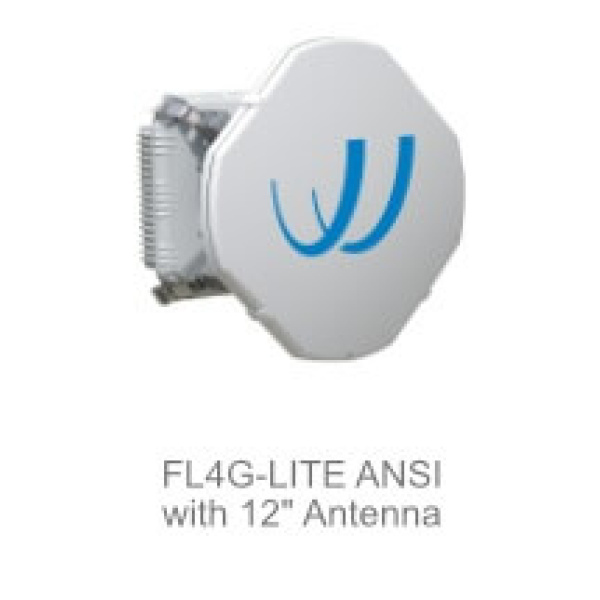

The Flex4G-LITE or FL4G-LITE is an ultra-low cost E-band (70/80GHz) millimeter wave system delivering up to 3Gbps full-duplex data throughput per radio. Its high capacity and reliability coupled with its long range, make it the ideal system for wireless backhaul applications, or fiber replacement.  The all outdoor antennas are lightweight and compact, the Flex4G-LITE features a single optical interface carrying 2.5 Gbps of capacity, simplifying installations and minimizing the deployment and connectivity costs which are incurred with older systems requiring multiple fiber runs.

With carrier networking features including CPRI protocol, the FL4G-LITE all-outdoor radio is the best choice for oem carriers and ISPs seeking to quickly scale deployments and increase its subscriber base. The FL4G-Lite has fiber quality performance making it ideal for a broad range of applications including business and residential broadband, HD video surveillance, and mobile and Wi-Fi backhaul.

BridgeWave offers a wide range of antenna options for the FL4G-LITE including a 90cm antenna to maximize range and an integrated antenna (for ETSI markets) to further simplify installation. FL4G-LITE is the first 80GHz radio with the option of a higher gain 3-foot antenna, enabling operators to reach distances far beyond those of conventional E-band systems.

Key features of the FL4G-LITE Backhaul Radio include:

• 3Gbps data rate per 1+0 radio with up to 6Gbps per 2+0 radio
• Adaptive Code Modulation from QPSK to 64QAM and Automatic Transmit Power Control to maximize range under different conditions
• 2.5 & 1G Ethernet interfaces along with CPRI (Mode 1-4) support for enhanced flexibilitiesM
• Outstanding RF performance benefiting from highly integrated architecture
• Carrier grade Layer 2 switch supporting Ethernet functionality and Timing Synchronization
• Integrated 20cm antenna (ETSI) or external 30cm, 60cm, or 90cm antennas

BridgeWave offers a wide range of antenna options for the FL4G-LITE including a 90cm antenna to maximize range and an integrated antenna (for ETSI markets) to further simplify installation. FL4G-LITE is the first 80GHz radio with the option of a higher gain 3-foot antenna, enabling operators to reach distances far beyond those of conventional E-band systems.

Primary Applications:

• Business and residential broadband
• Mobile and Wi-Fi backhaul
• HD video surveillance
• Long Range point to point wireless bridge
