Description

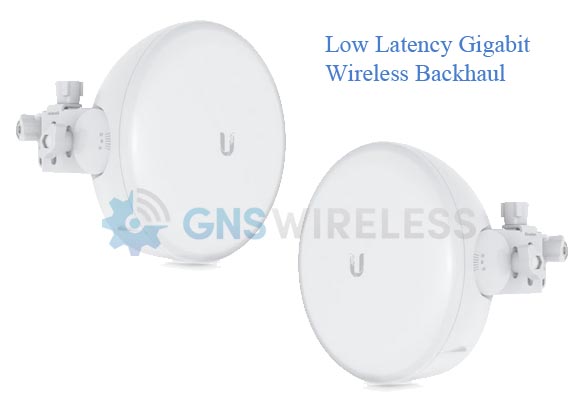

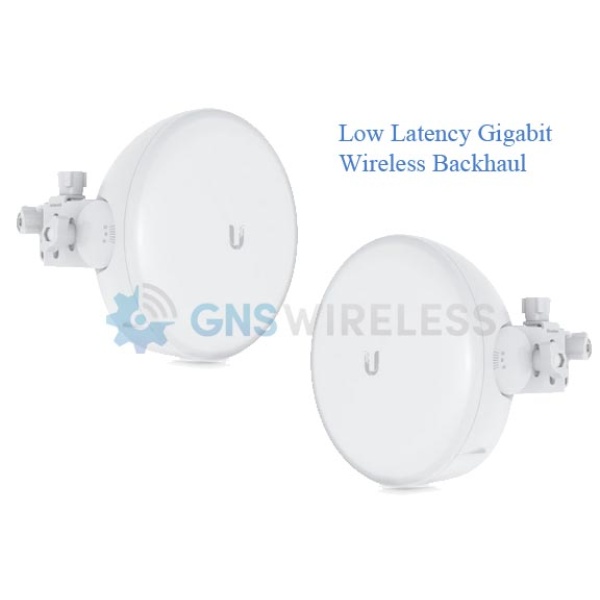

GNS-5460-HD Low Latency 60 GHz Wireless Bridge
High-Speed Outdoor Point-to-Point Backhaul (Up to ½ Mile)
The GNS-5460-HD is a high-performance 60 GHz point-to-point wireless bridge designed for short-range, high-throughput building-to-building connectivity. Engineered for low latency and interference-free operation, this outdoor wireless backhaul kit delivers gigabit-class performance ideal for video, voice, cloud access, and LAN extension between locations.
Operating on the 60 GHz spectrum, this bridge avoids congestion commonly found in 2.4 GHz and 5 GHz bands, making it an excellent solution for dense wireless environments where reliability and performance matter most.
Popular Features
- 60 GHz radio with 5 GHz radio backup
- Low-interference 60 GHz spectrum
- 1.5+ Gbps Bidirectional Throughput with Low Latency
- Optional 2.4 GHz management radio
- 2160 MHz channel width support at 60 GHz connectivity
- Small form factor (Antennas are 5″ round)
- Pre-Configured for out of the box “plug-n-play” installation
- 256 MB DDR3
- USA Technical Support included
- Wi-Fi Management Radio for ease of configuration/troubleshooting
- 35dBi Integrated Antenna
What’s included in this low latency Gigabit Wireless Ethernet bridge (complete link):
- 2x Outdoor 60GHz 802.11AC Bridge Antennas
- 2x Gigabit Power over Ethernet Injector (24V PoE)
- 2x 50ft. Shielded cat5e Ethernet Cable

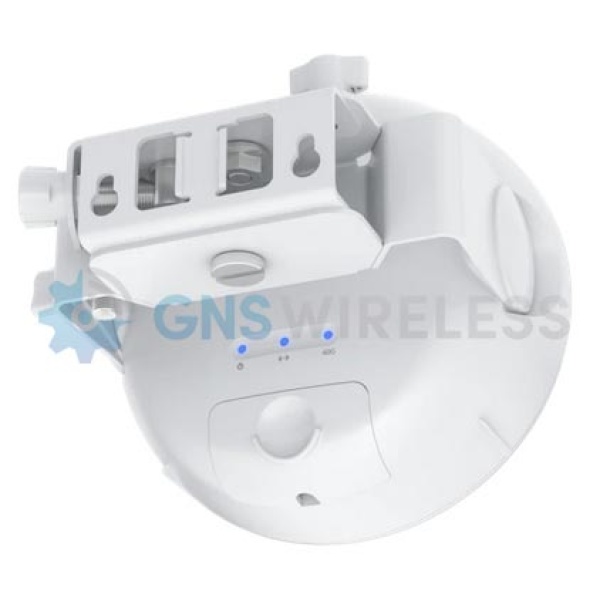

- 2x Pole Mount Hardware for 1-2″ OD mast
- 2x Inline Surge Protectors
*Availability Update*
This model may be limited or discontinued.
Recommended Replacement: GNS-5660 60 GHz Wireless Bridge (2 Gbps)
For links ½ mile or less, we strongly recommend upgrading to the GNS-5660, which delivers:
✔ Up to 2 Gbps aggregate throughput
✔ Interference-free 60 GHz performance
✔ Low latency for video and VoIP
✔ Clean, plug-and-play deployment
✔ Ideal for high-capacity short-range backhaul
If you’re building a new link today, the GNS-5660 is the preferred modern solution.
Why Choose a 60 GHz Wireless Bridge?
Traditional 5 GHz bridges can suffer from interference in busy areas. A 60 GHz wireless bridge offers:
-
Extremely low interference
-
Higher throughput capacity
-
Stable, predictable performance
-
Secure directional communication
-
Ideal short-range, line-of-sight performance
For distances under ½ mile with clear line of sight, 60 GHz is often the best-performing wireless backhaul option available.
Key Features (GNS-5460-HD)
-
60 GHz high-capacity wireless backhaul
-
Low latency performance for real-time applications
-
Ideal for building-to-building Ethernet extension
-
Pre-configured for easy installation
-
Outdoor-rated integrated directional antennas
-
Includes PoE injectors and mounting hardware
-
Designed for clear Line-of-Sight (LOS) installations
Ideal Applications
This wireless bridge is commonly used for:
✔ Connecting house to shop
✔ Linking warehouse to office
✔ Sharing internet between buildings
✔ Backhauling IP security camera systems
✔ Extending RV park or marina networks
✔ Industrial yard connectivity
✔ Campus and municipal deployments
If trenching fiber or Ethernet is expensive or impractical, a point-to-point wireless bridge provides a fast and cost-effective alternative.
Technical Overview
| Specification | Details |
|---|---|
| Technology | 60 GHz Point-to-Point Wireless Bridge |
| Max Throughput | ~1.5 Gbps (Model Dependent) |
| Recommended Range | Up to ½ Mile (Clear LOS) |
| Antennas | Integrated Directional |
| Power | PoE Included |
| Use Case | Building-to-Building Backhaul |
| Installation | Pole or Wall Mount |
Frequently Asked Questions (FAQ)
What is a point-to-point wireless bridge?
A point-to-point (PTP) wireless bridge connects two locations using directional radios, creating a transparent Ethernet link over the air. It works like an invisible network cable between buildings.
How far will a 60 GHz bridge work?
With clear line of sight, 60 GHz bridges like the GNS-5460-HD or GNS-5660 typically perform best at ½ mile or less. Shorter distances often deliver maximum throughput.
Why choose 60 GHz instead of 5 GHz?
60 GHz operates in a much less congested spectrum, meaning less interference and higher performance — especially in suburban or urban environments where 5 GHz can be saturated.
Does this support video surveillance and VoIP?
Yes. Low latency and high throughput make it ideal for:
-
IP camera backhaul
-
VoIP phone systems
-
Cloud services
-
Remote desktop access
-
File transfers
Do I need line of sight?
Yes. Clear line of sight between antennas is critical for 60 GHz links. Trees, buildings, or obstructions will reduce performance or block the link entirely.
Is this plug and play?
Most GNS Wireless bridge kits are pre-configured for fast deployment. Proper mounting and alignment are still required for best performance.
Why Buy From GNS Wireless?
When you purchase from GNS Wireless, you get:
- Pre-configured, field-tested equipment
- Professional installation guidance
- RF link design assistance
- Real support from wireless specialists
- Complete system solutions (bridges, enclosures, PoE, mounting hardware)
We don’t just sell hardware — we build working wireless systems.
Ready to Connect Two Buildings Wirelessly?
If your link is ½ mile or less, the best solution today is the:
GNS-5660 60 GHz 2 Gbps Wireless Bridge
Upgrade to higher throughput and modern performance.
📞 Not sure which bridge is right for your project?
Contact GNS Wireless for free link planning and product recommendations.
👉 Request a Quote
👉 Call a Wireless Specialist
👉 View the GNS-5660 Now
