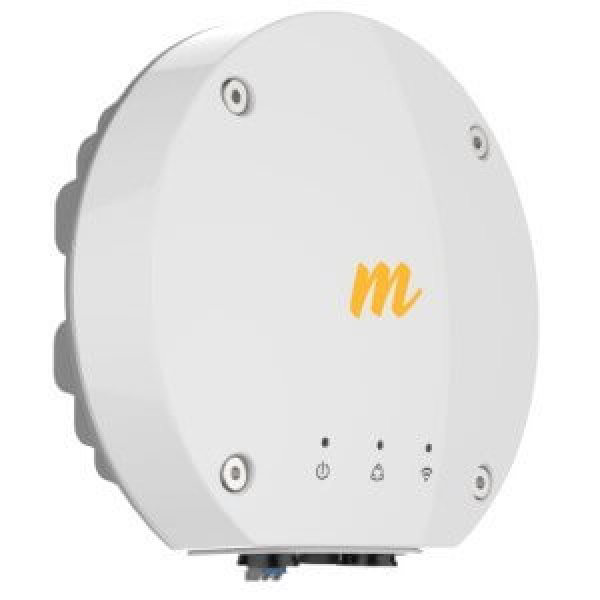

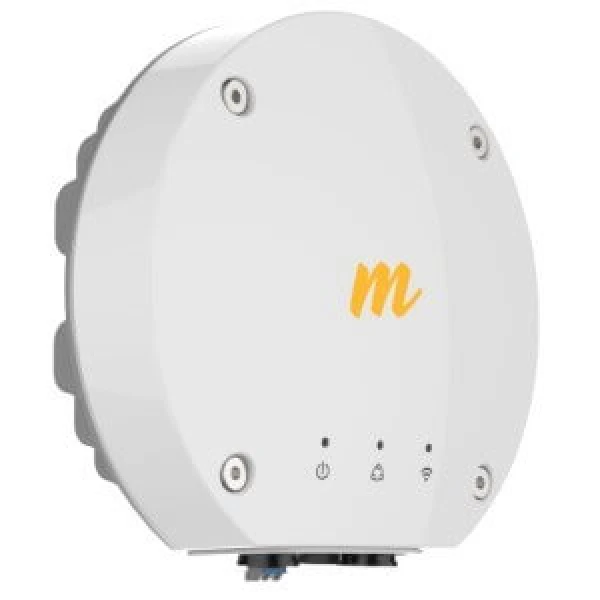

Mimosa B11 Licensed 11 GHz Wireless Backhaul Radio (2 Radios Required for Complete Link)

The Mimosa B11 11 GHz Licensed Backhaul Radio delivers carrier-grade wireless backhaul performance for networks that require reliable, interference-free connectivity.

Operating in the licensed 10.0–11.7 GHz microwave band, the B11 provides high-capacity point-to-point connectivity with exceptional reliability and extremely low latency. This makes it an ideal solution for service providers, municipalities, enterprise campuses, and critical infrastructure networks.

With up to 1.5 Gbps aggregate throughput, advanced 4×4 MIMO technology, and the ability to support extremely long link distances, the Mimosa B11 is designed to extend fiber-class connectivity across challenging terrain without the cost of trenching or leased circuits.

---

Why Choose the Mimosa B11?

Licensed Spectrum Reliability

Unlike unlicensed wireless systems, the B11 operates in licensed 11 GHz spectrum, dramatically reducing interference and ensuring predictable network performance.

Gigabit Wireless Backhaul

The B11 delivers up to 1.5 Gbps aggregate throughput, making it suitable for high-capacity network backhaul between buildings, towers, or aggregation points.

Ultra-Low Latency Performance

With sub-millisecond latency, the B11 supports real-time applications such as video surveillance, VoIP, and carrier traffic aggregation.

Long-Range Connectivity

Under ideal conditions, the B11 can support wireless backhaul links exceeding 100 km, enabling reliable connectivity across long distances.

---

Ideal Applications

The Mimosa B11 is commonly deployed for:

• Wireless ISP backhaul

• Carrier network aggregation

• Campus building connectivity

• Municipal broadband infrastructure

• Industrial and utility networks

• Video surveillance transport

• Rural fiber extension

• Data center interconnect

---

Fiber-Ready Network Architecture

The B11 supports both Gigabit Ethernet and SFP fiber connectivity, allowing operators to integrate wireless backhaul directly into fiber networks.

This flexibility makes the B11 ideal for:

• Fiber extension projects

• Last-mile broadband deployments

• Rapid network expansion

• Temporary or disaster recovery links

---

Built for Harsh Outdoor Environments

Designed for carrier and service provider deployments, the B11 features an IP67-rated enclosure and operates in temperatures ranging from -40 °C to +55 °C, ensuring reliable operation in extreme weather conditions.

---

Key Features

✔ Licensed 11 GHz microwave backhaul

✔ Up to 1.5 Gbps aggregate throughput

✔ Ultra-low latency (<1 ms) performance

✔ Long-range links exceeding 100 km

✔ 4×4 MIMO wireless technology

✔ Fiber-ready SFP connectivity

✔ Carrier-grade outdoor design (IP67)

✔ Cloud monitoring and network management

---

Technical Specifications

Wireless Performance

Frequency Range

10.0 – 11.7 GHz licensed band

Maximum Throughput

Up to 1.5 Gbps aggregate

Latency

<1 ms typical

Modulation

4×4 MIMO OFDM up to 256-QAM

Channel Bandwidth

20 / 40 / 80 MHz

Maximum Output Power

Up to 27 dBm

---

Networking

Ethernet

10/100/1000 Gigabit Ethernet

Fiber Connectivity

SFP cage supported

Management

Cloud monitoring

SNMP support

Web interface

---

Environmental

Operating Temperature

-40 °C to +55 °C

Ingress Protection

IP67 outdoor rated

Wind Survivability

Up to 125 mph (200 km/h)

Power Consumption

Approx. 30 W

---

Why Buy from GNS Wireless?

GNS Wireless specializes in carrier-grade wireless backhaul systems and outdoor networking infrastructure.

When you purchase through GNS Wireless, you receive:

✔ Expert system design assistance

✔ Antenna pairing recommendations

✔ Link budget analysis

✔ FCC licensing guidance

✔ Professional installation support

Our team helps customers deploy reliable licensed microwave backhaul links across industries including WISPs, utilities, municipalities, and enterprise networks.

---

Need help designing a licensed wireless backhaul link using the Mimosa B11?

Our engineers can help determine:

• Proper antenna selection

• Link distance capability

• FCC coordination requirements

• Optimal mounting and alignment

Contact GNS Wireless today for expert guidance on your wireless backhaul deployment.

---

FAQ

What is the Mimosa B11 used for?

The Mimosa B11 is a licensed microwave backhaul radio used to connect two network locations with high-capacity wireless links.

---

What distance can the Mimosa B11 support?

Depending on antenna selection and link design, B11 links can exceed 100 km under optimal conditions.

---

Does the Mimosa B11 require a license?

Yes. The B11 operates in the licensed 11 GHz band, which requires coordination and licensing with the FCC or regional authority.

---

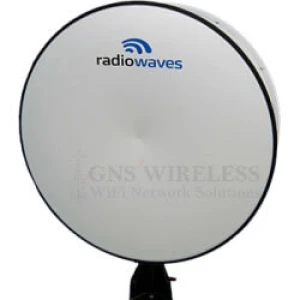

What antennas work with the Mimosa B11?

The B11 is commonly paired with high-gain 11 GHz parabolic antennas, such as the Mimosa NP11 series.
