Description

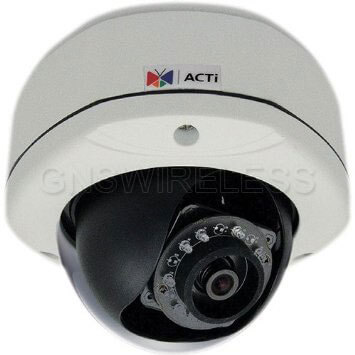

10MP Outdoor Dome Camera with D/N, IR, Basic WDR, Fixed Lens, f3.6mm/F1.8, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP66, IK10, DI/DO
The E77 10MP Outdoor Day/Night IP Camera from ACTi features a 10MP 1/2.3 progressive-scan CMOS image sensor to produce up to 1920×1080 resolution video at 30fps. It is capable of dual-stream feeds, allowing for simultaneous H.264 and MJPEG compressions for high-resolution recording and a lower-resolution display. This enables you to capture great detail for playback and back-up while easing the load on your computer's video card.
Designed for outdoor applications, the housing is IP66 rated to be water-resistant and dustproof, and IK10 rated for vandal-resistance. The Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) systems provide high-contrast in all light conditions, and when it gets dark, ten IR LEDs switch on and provide a night vision reach of up to 50'.
The camera is equipped with a terminal block that has audio in/out and alarm in/out. The audio terminals allow for external microphones and speakers to be used for 2-way communication, or for integrating the camera into a PA system. The alarm terminals allow for external appliances such as panic buttons, PIRs, contacts, or smoke detectors to trigger recording; while the output enables relays and sirens to be activated. This fully-customizable camera has multiple recording modes and camera options such as image quality, motion-detection zones and sensitivity, and privacy masking.
- Performance
-
- 10MP 1/2.3" progressive-scan CMOS sensor
- 101° field of view
- Up to 1920 x 1080 resolution at 30 fps with adjustable aspect ratios
- H.264 and MJPEG compression options
- Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) for high-contrast in all light conditions
- Dual-stream capable for high-resolution recording and lower-resolution viewing
- Multiple Recording Modes
-
- Manual mode: Turn recording on/off manually
- Motion-detection mode: when motion is detected, recording starts with adjustable pre and post-event intervals from 10 seconds before to 24 hours after
- Digital input mode: also called 'Alarm In', recording starts when an external appliance, like a PIR, door/window contact, or panic button, are tripped
- Scheduled mode: recording starts/stops at pre-determined times
- Accessibility
-
- Fully password protected for remote access
- RJ-45 Ethernet 10/100 port
- Use as a stand-alone camera or integrate into a surveillance system
- Store files to an NVR or NAS, and locally
- Accepts microSD cards up to 32GB
- View, playback, program, and backup to dedicated NVR or remote computer
- Fully compatible with Internet Explorer, limited compatibility with all other browsers
- ONVIF compliant makes it compatible with other ONVIF devices from multiple manufacturers
- Outdoor Installation
-
- 10 IR LEDs for low/no-light conditions
- Up to 50' night vision range
- IP66 rated weather resistant
- IK10 vandal resistant
- Shatter-resistant clear dome
- Included cable and conduit gland for preserving water-resistance
- Digital Input / Output
-
- One each, on a terminal block
- Use for wiring external appliances to the camera
- Camera can be set to record automatically, with programmable resolution, frame rate, and bit rate for maximum image quality
- Combine in/out appliances like a PIR and a light relay to enhance security in an area
- Programmable DO and recording intervals
- Customizable Camera Features
-
- Camera name and day/date/time stamp
- Recording resolution, frame rate, and bit rate
- Choose local memory-card and/or remote NVR or NAS to save files and logs
- Motion-detection zones, sensitivity, and trigger intervals
- Multiple privacy-masking zones blocks areas from viewing and recording
- Horizontal image flipping, vertical image mirroring
- Adjustable brightness, contrast, exposure, and saturation
- Automatic email notifications with video clip or snapshot, and audio attachment
- Audio In/Out
-
- One each, on a terminal block
- Connect external microphone to expand surveillance coverage
- Connect external speaker for 2-way communication
- Integrate into PA system
- Audio in/out carried over Ethernet cable
- Dual Power Options
-
- Compatible with IEEE802.3af Class 2 Power-over-Ethernet
- Can be powered by external power supplies if used stand-alone or if NVR is not PoE compatible
