Description
18 x 16 x 8 Weatherproof Enclosure with 120 VAC Power, Heat & Cooling
A professional, all-season enclosure for protecting wireless, networking and electronic equipment in demanding outdoor environments. This box combines a rugged fiberglass enclosure with internal 120 VAC power, a thermostat-controlled PTC heater and dual-fan cooling system.
Built for Year-Round Equipment Protection
Outdoor electronics face more than just rain and moisture. Summer heat, freezing winter temperatures, dust and corrosive environments can shorten equipment life and lead to unexpected network failures.
This enclosure provides a complete solution designed to protect sensitive equipment throughout changing seasonal conditions. Instead of purchasing a cabinet, mounting plate, AC power components, heater and cooling system separately, this Gen 2 enclosure integrates everything into one clean, professional package.
It is an excellent choice for wireless radios, PoE injectors, Ethernet switches, routers, power supplies, cellular equipment, surveillance systems and industrial controls.
Ideal Applications
Rugged Fiberglass Construction
The Gen 2 enclosure is manufactured from molded Fiberglass Reinforced Polyester (FRP) for excellent resistance to weather, UV exposure and corrosion. Unlike conventional steel cabinets, fiberglass will not rust, making it particularly well suited for outdoor wireless and industrial applications.
The fully gasketed lid helps protect the equipment inside, while stainless steel quick-release latches with padlock hasps provide secure, convenient access. An integral mounting flange simplifies installation on a wall or other flat surface, with mast mounting also available.
- Molded fiberglass reinforced polyester (FRP)
- Tool Gray – RAL 7035 finish
- Fully gasketed lid
- Stainless steel quick-release latches
- Integrated padlock hasps
- Integral mounting flange
- Mast mounting option available
- UL 94-5V flame-rated enclosure material

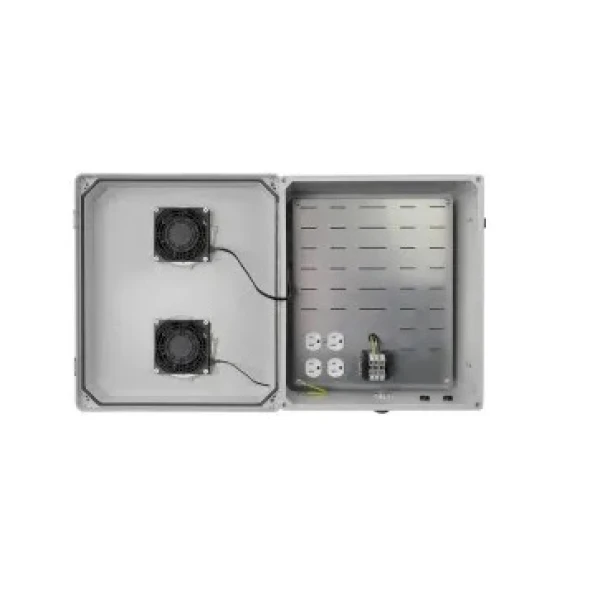

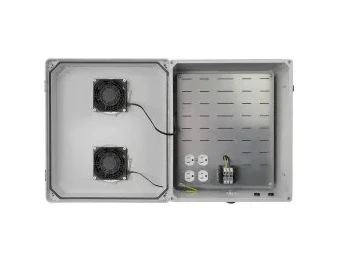

120 VAC Powered Mounting Plate
The internal anodized aluminum mounting plate provides a clean, organized platform for installing networking and electronic equipment. Integrated 120 VAC outlets make it easy to power devices such as PoE injectors, switches, routers and power supplies directly inside the enclosure.
The Gen 2 slotted mounting design provides flexibility when positioning equipment and accessories, helping installers create a clean layout without being restricted to a fixed mounting pattern.
Material: Anodized Aluminum
Input Power: 120 VAC
Automatic Thermostat-Controlled Heating
When outdoor temperatures fall, the integrated PTC-type heater automatically activates to help maintain a safer operating environment for equipment installed inside the enclosure.
Heater specification: 140°F (60°C) PTC-type.
Automatic Dual-Fan Cooling
High temperatures can be just as damaging to electronics as extreme cold. The box includes a built-in thermostat-controlled fan system that automatically activates as the enclosure temperature rises.
The fans move air through the enclosure to help reduce internal temperatures and provide a better operating environment for heat-generating networking and electronic equipment.
Fan power: 12 watts.
One Enclosure. Power, Heating & Cooling.
This box eliminates the need to piece together a separate enclosure, mounting plate, AC power system, heater and cooling fans. It arrives as an integrated solution for professional installations where equipment protection and year-round reliability matter.
Technical Specifications
Need Help Selecting an Outdoor Enclosure?
Not sure whether you need heating, fan cooling or a different enclosure size? GNS Wireless can help match the enclosure to your equipment and installation environment. Contact us before ordering and we’ll help you select the right configuration.
