2.4GHz PTP 24dBm N-Connector. LigoWave delivers the most robust 2.4 GHz PTP solution on the market by coupling ultra-high output power, flexible channel width capability (5/10/20/40 MHz), and industry-leading proprietary software mechanisms. The LigoPTP 2 Series products offer carrier-class link connectivity, delivering true TCP throughput capability of 70 Mbps and packets-per-second performance of 50,000 PPS. The LigoPTP 2 series products offer an unlicensed PTP solution, ideal for dedicated access or backhaul applications (including VOIP) where other frequencies may be unavailable.
Requires two of each to make a complete Bridge Kit.

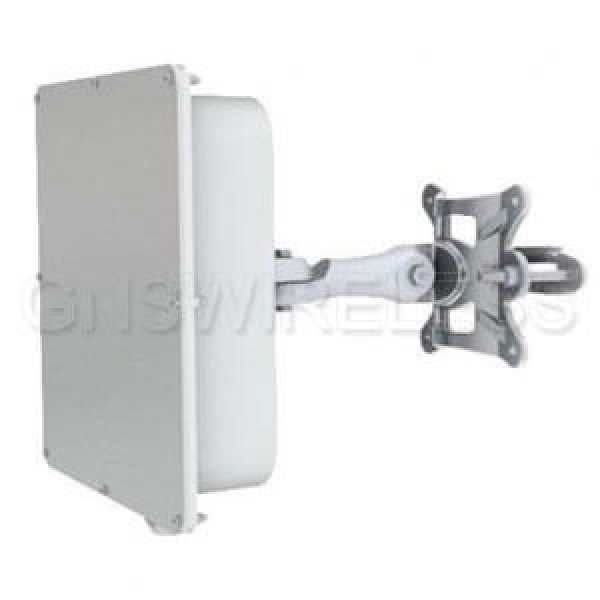

LigoWave delivers the most robust 2.4 GHz PTP (Point to Point) solution on the market by coupling ultra-high output power, flexible channel width capability (5/10/20 MHz), and industry-leading proprietary software mechanisms. The LigoPTP 2 Series products offer carrier-class link connectivity, delivering true TCP throughput capability of 40 Mbps and packets-per-second performance of 35,000 PPS. The LigoPTP 2 series products offer an unlicensed PTP solution, ideal for dedicated access or backhaul applications (including VOIP) where other frequencies may be unavailable. The LigoPTP 2-N product features an external N-Connector for custom antenna application, delivering long-range, rock-solid link connectivity capability for the 2.4 GHz spectrum.
The LigoPTP 2-N showcases an array of advanced software mechanisms that provide optimal point-to-point connectivity for high-throughput, long distance links. LigoWave's proprietary PTP mechanisms utilize techniques such as Dynamic Time Division Duplexing (TDD) to dynamically allocate bandwidth in the direction needed, thus increasing link efficiency and greatly decreasing the impact that distance has on throughput of the link. The LigoWave point-to-point products also feature selective repeat ARQ technology, an enhanced error-correction software mechanism that optimizes data traffic to provide very high throughput over high-bandwidth, long-range links even in the presence of interference. The LigoPTP 2-N is also compatible with WNMS, a centralized configuration, firmware, and statistics server offered by LigoWave for carrier class diagnostic and configuration management capabilities.
