TS-8-PRO, 8-Port, 24V/48V, Passive PoE, Gigabit Switch


Part #: TS-8-PRO

TS-8-PRO, 8-port, 24V/48V, Passive PoE, Gigabit Switch

Availability: Contact Us
MFG Part #: TS-8-PRO
Categories: ,

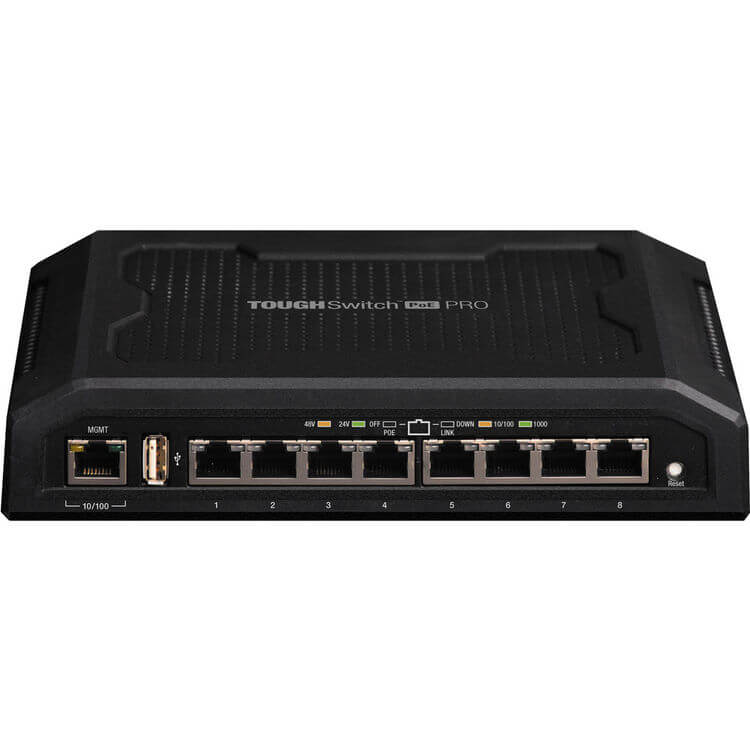

The TS-8-PRO TOUGHSwitch Pro 8-Port Advanced PoE Controller from Ubiquiti Networks is an industrial-strength, 8-port Gigabit switch with 150W power capability for powering 24V or 48V devices. The output voltage is controlled by the software. It delivers reliable passive PoE and fast 10/100/1000 Mb/s connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect the PoE devices, you need to enable PoE in the TOUGHSwitch configuration interface. Each port on this 8 Port Passive PoE Switch can be individually configured to provide PoE, so that both PoE and non-PoE devices can be connected.

Simplify Deployment
It allows network architects to design cleaner, less cluttered deployments. For example, integrating one Ubiquiti TS-8-PRO can eliminate the need of eight PoE adapters, eight power cords, eight power outlets, and eight Ethernet patch cables. The TOUGHSwitch PoE deployments increase efficiency and reduce the potential failure points, resulting in faster installations and less maintenance and troubleshooting
Intuitive Configuration Interface
The Ubiquiti TS-8-PRO provides a user-friendly configuration interface for efficient setup and control. Accessed via a secured management port and Web browser, the TOUGHSwitch configuration interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status of the POE Switch.
Tough full metal and rubber casing
Advanced Features
Port monitoring
System connection and management services
Virtual Local Area Network (VLAN) configuration
Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
Jumbo frame support
Ping watchdog
Configurable alerts

Additional information

Weight 15.0000 lbs

Contact Us

MFG Part #



TOUGHSwitch_PoE_8-Port_QSG.pdf Size: (3.53 MB)
