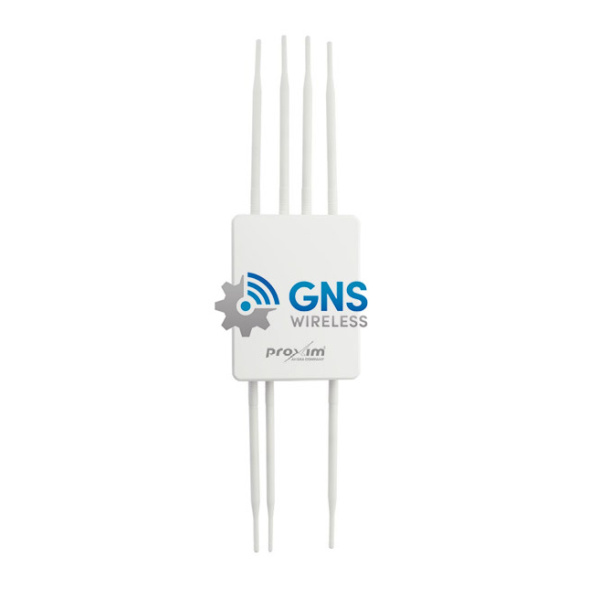

AP-9200R-US, ORiNOCO AP-9200R MU-MIMO 4×4 wave2 Dual Radio Connectorized Outdoor Access Point


Part #: AP-9200R-US

AP-9200R Indoor/Outdoor 4×4 wave2 Dual Band Access Point

Availability: In Stock
MFG Part #: 903-00035


AP-9200R-US, ORiNOCO AP-9200R MIMO 4×4 802.11ac wave2 Dual Radio Outdoor Access Point.

ORiNOCO® AP- 9200R, a Dual Radio 802.11ac wave2 Access Point Designed for Outdoor Use

ORiNOCO® AP-9200R takes advantage of Proxim’s expertise in both Wi-Fi and outdoor systems to deliver a dual radio 802.11ac wave2 Access Point ready for outdoor use.

ORiNOCO® AP-9200R features one 2.4 GHz MIMO 3×3:3 and one 5 GHz MU-MIMO 4×4:4 radio delivering up to 2 Gbps aggregate data rate and unparalleled flexibility. In addition, it benefits from the weatherproofed design of Proxim Tsunami® products.

Organizations of all sizes encompassing Carriers, Small and Medium Enterprises, Health Care, Governments and Public safety departments, can achieve higher performance than their existing wired and wireless LANs thanks to 802.11ac wave2 Advantage: multiple user simultaneous access, significantly higher throughput and longer range.

High Performance

ORiNOCO® AP-9200R products enable enterprises of all size to extend their LAN outdoor while providing greater performance to their existing Ethernet networks.

  • High performance with dual radio rates of 1733 + 450 Mbps
  • High power radio delivering up to 27 dBm (4 RF) at 5 GHz and up to 26 dBm (3RF) at 2.4 GHz
  • High reliability for quad play applications
  • Dual IPv4 and IPv6 stacks for transparent evolution to tomorrow networks

Highly Secure

ORiNOCO® AP-9200R provides enterprise class security to ensure full protection of sensitive information

  • 802.11i based security with AES 128 encryption and 802.1x Radius based authentication
  • Rogue scan listing surrounding devices
  • Secure management (SSL/TLS1.2, SSH and SNMPv3) preventing unwanted configuration changes
  • IP67 rated enclosure with surged protect ethernet port

Easy to Deploy

ORiNOCO® AP-9200R is a Fit Access Point operating on its own.

* High performance CPU locally managing traffic and QoS

* Bluetooth Low Energy interface for easy configuration via Proxim BlueConnect smartphone application (Android and iOS)

Unparalleled Flexibility and Convenience with Centralized Management

ProximVision® Advanced supports ORiNOCO® devices giving network architects unparalleled flexibility and control of the units.

* Rapid Network Deployment: automates configuration processes for faster, more efficient deployment of Proxim Wireless networks

* Advanced Configuration Capabilities: gives network managers an option for exhaustive device configuration with a software-based tool

* Greater Ease of Use and Upgradability: supports a greater number of devices than competitively priced solutions and provides the simplest path to configuration and upgrade

Additional information

Weight 25.0000 lbs

In Stock

MFG Part #



Proxim AP-9200R-US Spec Sheet Size: (79.68 KB)
