Bandwidth Management and Edge Gateway EG 3000L, 500 Mbps, 400 Devices


Part #: 930-3045-110

Authentication Gateway EG 3000L, 500Mbps/400 Devices

Availability: Out of Stock
MFG Part #: EG3000L

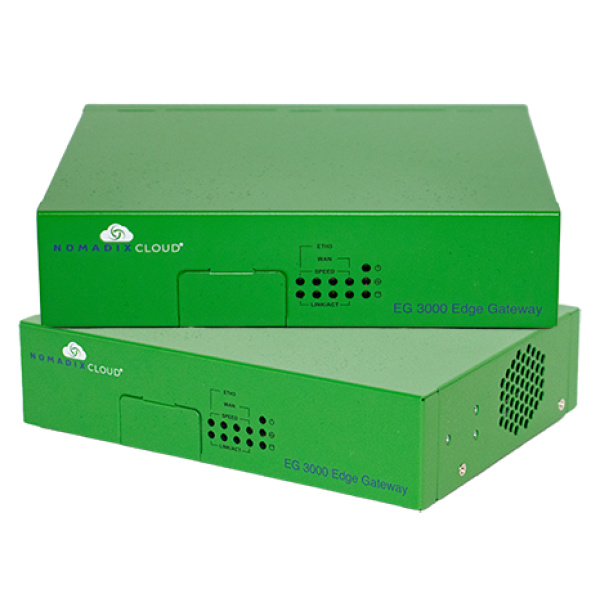

Bandwidth Management and Edge Gateway 3000L

Optimum Access and Bandwidth Management Gateway for Small-To-Mid-Sized Visitor-Based Networks (VBN)


Performance:  500Mbps

Capacity:  400 Devices

The EG 3000 family of network authentication gateways is ideal for value-driven, visitor-based networks. It is the perfect solution for small-to medium-sized venues, including hotels/motels/RV parks with up to 500 rooms/devices that want to offer fast and reliable internet access to their guests.

With four configurable WAN/LAN copper ports, the base configuration of the Bandwidth Management and Edge Gateway 3000L includes support for 400-500 concurrent devices and a standard throughput of 500 Mbit.

1st Year License, Support and Maintenance included.  Afterwards yearly fee of $299 is required to keep the gateway up to date with firmware and includes technical support and firmware updates.

Here are the specs for the Nomadix EG3000L:

  1. Hardware specifications:
  • Processor: Quad-core ARM Cortex-A7
  • Memory: 1GB DDR3 SDRAM
  • Storage: 4GB eMMC flash memory
  • Network interfaces: 4 x 10/100/1000 Ethernet ports
  1. Wireless specifications:
  • Wireless technology: 802.11a/b/g/n/ac
  • Dual-band: 2.4 GHz and 5 GHz
  • Antennas: 2 internal high-performance antennas
  1. Performance specifications:
  • Concurrent users: up to 500
  • Maximum downstream throughput: 1 Gbps
  • Maximum upstream throughput: 500 Mbps
  1. Security and authentication:
  • WPA2-Enterprise
  • 802.1X authentication
  • Captive portal with customizable login page
  • MAC-based authentication
  • RADIUS authentication
  1. Management and monitoring:
  • Web-based user interface (UI)
  • Command-line interface (CLI)
  • SNMP v1/v2c/v3
  • Syslog
  • Email alerts
  1. Power and dimensions:
  • Power supply: AC 100-240V, 50/60Hz, 0.5A
  • Power consumption: 8W
  • Dimensions: 9.9 x 5.8 x 1.3 inches
  • Weight: 1.3 pounds

In summary, the Nomadix EG3000L is a high-performance gateway with quad-core ARM Cortex-A7 processor, 1GB DDR3 SDRAM, and 4GB eMMC flash memory. It supports up to 500 concurrent users, with a maximum downstream throughput of 1 Gbps and maximum upstream throughput of 500 Mbps. The gateway features 802.11a/b/g/n/ac wireless technology, WPA2-Enterprise security, and a captive portal with customizable login page. It also has a web-based UI, CLI, SNMP, syslog, and email alerts for management and monitoring, and measures 9.9 x 5.8 x 1.3 inches with a weight of 1.3 pounds.



Additional information

Weight 20.0000 lbs

Out of Stock

MFG Part #



EG3000L Datasheet Size: (121.73 KB)
