1.5 Gbps, Wireless Bridge, 20dBi External Patch Antennas, WPA2, – 1 Mile, Pre-Configured – Complete PAIR


Part #: GNS-5432

1.7 Gbps, Wireless Bridge, 20dBi Antennas – 1 mile – Complete PAIR

Availability: In Stock

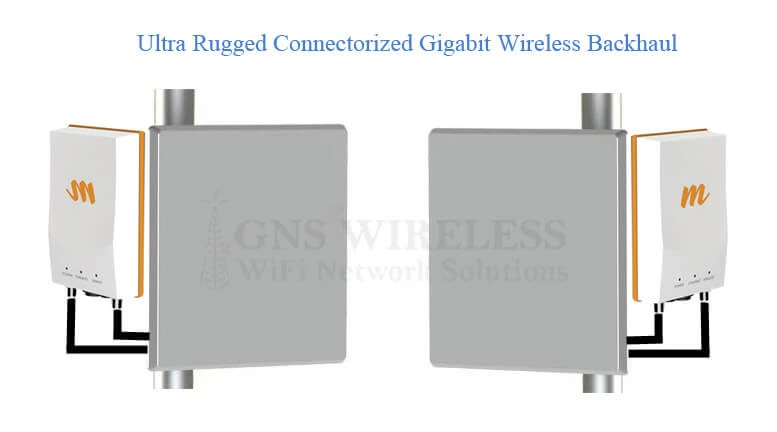

*NEW* High throughput, Industrial Grade Gigabit wireless building to building backhaul antenna using the full spectrum of 5GHz frequency.  This long range wireless gigabit radio link is a great option for short distance, high throughput, point to point wireless bridge applications.  Connect your two wireless routers, networks, remote solar or PLC's.   Capable of 1Gbps+ Mbps throughput, this ultra low latency radio pair can serve hard to reach remote locations with ease.  We recommend 1 Mile maximum distance, however longer distance is possible given the ideal scenerio and line of sight between buildings.  Point to Point distance can be acheived with clear, unobstructed line of sight only.  Trees, Buildings, Physical Land mass, and other obstructions must be avoided.  Please contact us for a free path analysis.

Whats included in this point to point wireless bridge kit:

2x Ultra Rugged Connectorized Wireless Bridge Radios
2x 20dBi Flat Panel Antenna
2x Gigabit Power over Ethernet Injector (PoE)
2x Power Supply
2x 100ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-3" OD mast
4x N-Male to N-Male Coaxial Cable

Wireless Bridge Setup:

This fixed wireless broadband package includes a pair of gigabit radios that are pre-configured and paired to each other, for "out of the box" installation and operation. Web based configuration, GUI menus, will assist with alignment and troubleshooting procedures using the default static IP addresses. Maximum cat5e cable to be used on each end is 250ft. (Shielded cat5e is recommended).  1 year warranty includes technical support from GNS Wireless for the life of the product.  The pre-configuration allows you or your customer to take the wireless bridge antennas out of the box, install, aim, power up…and use.  From our experience, the longest part of the installation is running the cat5e Ethernet cable from your network switch, or router, up to the roof top, or outside wall, where the antenna will be located.  Pole mount hardware is included.  We recommend using at least a 2" OD mast.  Contact us for hardware recommendations.

Maximum Throughput:

This point to point wireless bridge has a operating radio rate of 1.5Gbps IP aggregate throughput.  Maximum throughput depends on environmental conditions of your particular application.  Interference, line of sight, obstructions, reflection, fresnol zone obstructions, and other 5 GHz broadcasting equipment will affect the speed and range of this link.  Aggregate throughput is the sum of the throughputs in the uplink and the downlink direction.  This means actual transfer rate, or real time throughput will be in the 750Mbps range, in each direction.  This is assuming perfect conditions.   One of the many benefits of this wireless bridge is the way the radios handle interference.  The wireless bridge radios will automatically load balance across two non-contiguous channels to avoid outages due to interference. If one channel experiences interference the radio maintains connection while simultaneously searching for new replacement channel.  Now, bandwidth can be split across two different channels. Experience the same throughput, with less complication.


For more information on our Point to Point Broadband packages, please feel free to contact us at 877-209-5152.

Additional information

Weight 40.0000 lbs

In Stock


GNS-Wireless-Bridge-Pair-B5C.pdf Size: (304.94 KB)
