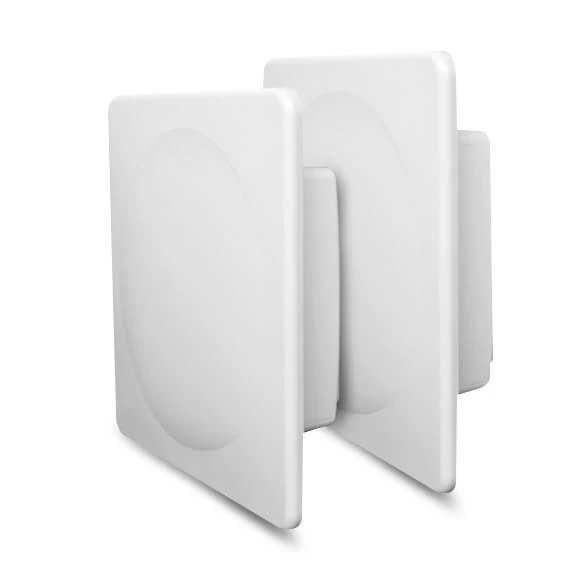

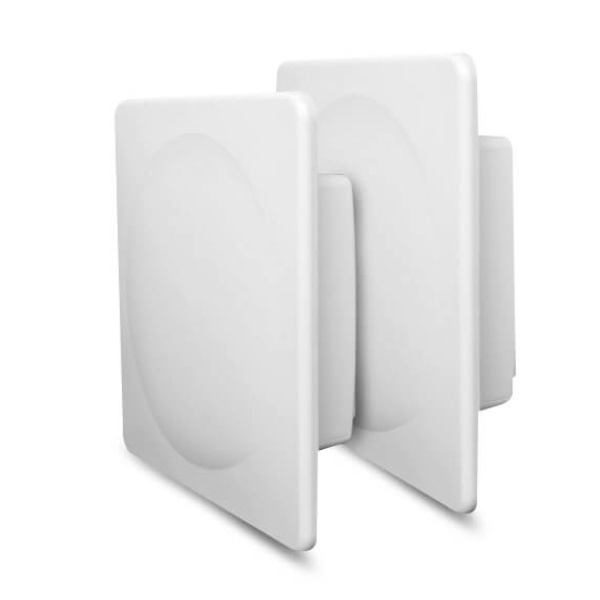

Tsunami QB 10150 Link, single radio, 866 Mbps, MIMO 2×2, 22 dBi antenna | Part Number : 902-00773


Part #: QB-10150-LNK-US

QB 10150 Link, single radio, 866 Mbps, MIMO 2×2, 22 dBi antenna

Availability: In Stock
MFG Part #: 902-00773
Categories: , ,


Tsunami® QB-10100 SeriesVery High throughput Point-to-Point Wireless Bridge Bundle

Proxim introduces the all new Tsunami Quickbridge® 10100 wireless backhaul solution that delivers over 600 Mbps throughput

Proxim Wireless is a leader and an early innovator in wireless technology providing high-speed, long-range broadband wireless solutions. Proxim introduces the Tsunami® QB-10100, a very high throughput, high power, extremely reliable and cost-effective, near-line-of-sight point-to-point (PtP) wireless backhaul solution.

Tsunami® QB-10100 can rely on the following features to satisfy carriers, wireless service providers and Government organizations that need very high-speed carrier class wireless backhaul:

– Proxim WORP®, a highly evolved prioritization platform tailored to deliver voice, video and data applications

– Proxim ClearConnect[tm], a suite of over 13 different techniques all working together to ensure robust and reliable radio communications in noisy deployments

World Class Performance

– Point-to-Point system that delivers 866 Mbps data rate at distances of over 7.5 miles (12 km)

– Very low latency of 2 to 3 ms to support voice and video applications over long distances

– Dual IPv4 and IPv6 stack for transparent evolution to tomorrow networks

– Built-in feature rich network protocols for bridging, routing and gateway functionality

Frequency Agnostic

– Operates in unlicensed bands from 5.150 to 5.925 GHz

– Flexible RF planning with 20, 40 and 80 MHz channel size

Near-Line-of-Sight and Advanced Features

– Near-line-of-sight capable, utilizing OFDM and enhanced 2×2 MIMO techniques for better RF propagation

– Features dual Gigabit Ethernet ports with PoE out to power other devices like surveillance cameras or additional radios

– Enables packet identification to create unique and sophisticated service rules and tiered service classes with ease

– Compatibility with LACP switches for link aggregation

– Spectrum analyzer to help study frequency bands for interference, and select a relatively low interference channel

Carrier-Grade Backhaul

– Implements AES encryption and Radius authentication for the most secure outdoor wireless communications in the unlicensed frequency spectrum

– Utilizes Proxim’s Wireless Outdoor Routing Protocol (WORP®), which prevents snooping, and features highly-secure remote management via SSL, SSH and SNMPv3

– Features Ethernet ports with pass-through IEEE 1588v2 synchronization and support for Jumbo frame

Additional information

Weight 50.0000 lbs

In Stock

MFG Part #



Proxim_QB-10100_LNK_Datasheet.pdf Size: (294.8 KB)
