LigoWave RapidFire with 23 dBi Integrated Antenna, Long Range PTP Wireless Data Bridge, 5 GHz


Part #: LigoPTP-5-23-RF

LigoPTP-5-23-RF, 700Mbps, Ligowave RapidFire

Availability: Contact Us
MFG Part #: LigoPTP 5-23 RapidFire
Categories: ,


LigoPTP RapidFire 5-23: (2 required for a complete link)

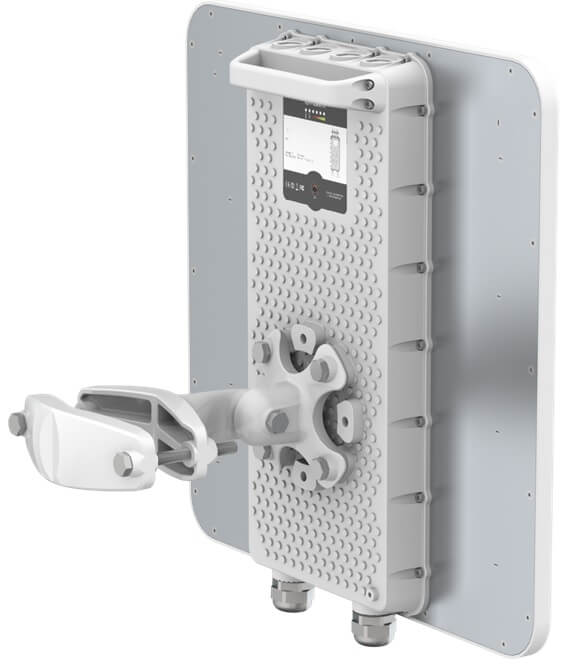

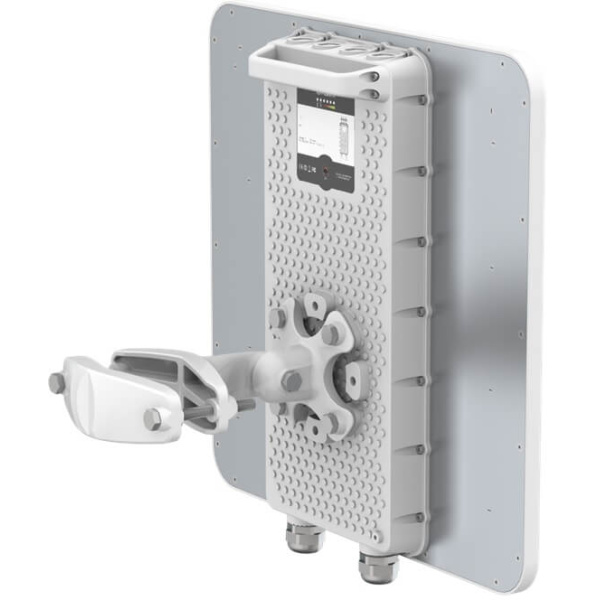

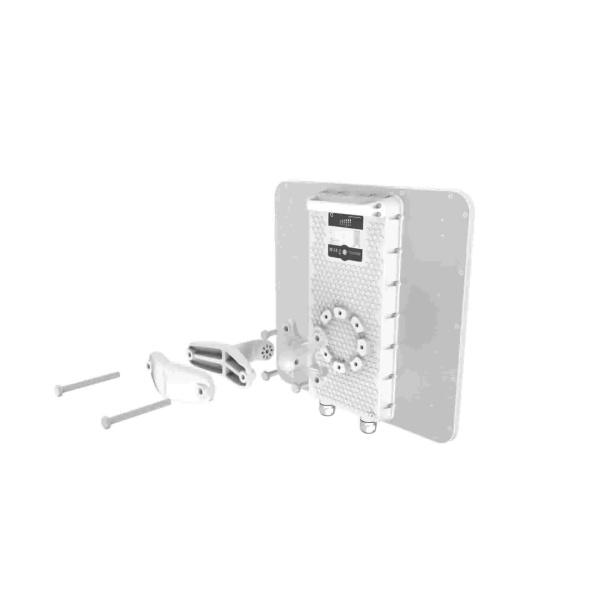

This is an outdoor rated, long-range PTP wireless data bridge for carrier-grade enterprise applications.  The radio operates at 5 GHz frequency, 802.11ac 2×2:2 (867 Mbps half-duplex rate). 700+ Mbps data throughput w/ W-Jet-V and ATPC. Dual gigabit Ethernet interfaces w/ IEEE 802.3af PoE passthrough. Integrated 23 dBi patch antenna for ease of installation. 2.4 GHz radio for management via mobile device. IP67. Metal enclosure. PoE injector and pole mount hardware included.

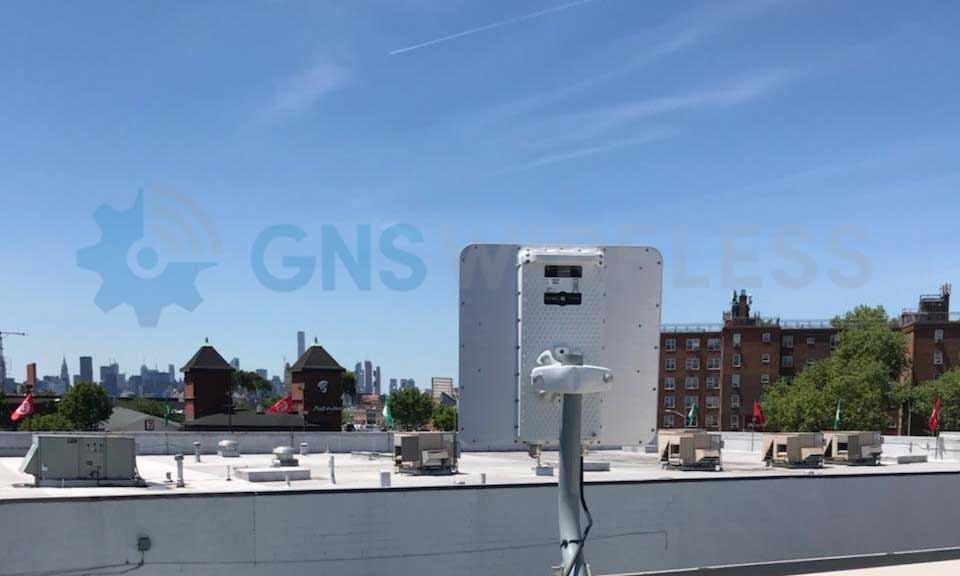

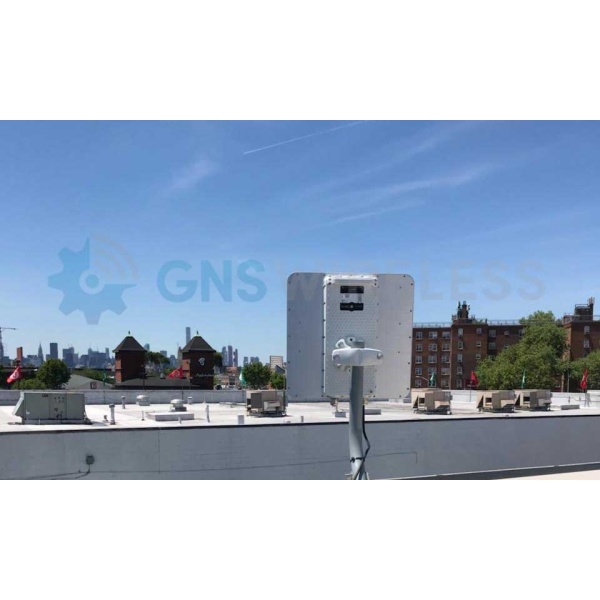

The Rapidfire antenna is a ultra high performance wireless bridge operating at 5 GHz.  This point-to-point system has exceptional performance that delivers 700+ Mbps throughput. The carrier grade design with a simple and friendly user interface makes RapidFire an ideal device for high capacity and performance demanding links.  Whether you are linking 2 building in the city, or have a short range connection through trees, this wireless bridge antenna will get the job done.

The Ligowave RapidFire antenna uses an integrated 23dBi panel antenna.  With the combined high transmit power of this radio, if you are installing the antennas close to one another (less than 500 feet), it is recommended to cross polarize the antennas, and turn the transmit power to the minimum of 6 dBm.  This will reduce transmit collisions, and keep the link operating at a more reliable throughput.

For more LigoWave Access Points and PTP Wireless Bridge antennas, click here.

Additional information

Weight 30.0000 lbs

Contact Us

MFG Part #

LigoPTP 5-23 RapidFire




LigoPTP 5-23 RapidFire Size: (1.26 MB)
