2.5 Gbps Point to Point Wireless Backhaul, 5 GHz, 24 dBi, 5 Mile – Complete Link


Part #: GNS-RW2000E-LNK

Availability: In Stock
Categories: ,


2.5Gbps High Capacity Point to Point Wireless Ethernet Backhaul | Complete Link.  Operating at 5 GHz, with 24dBi Panel Antenna.

Premium, ultra-capacity Point-to-Point (PtP) solution for backhaul, access and for connecting a wide variety of bandwidth demanding applications.  Mid Range for nLOS, Long Range with clear, unobstructed LOS.  Ultra High End, Ultra Secure PTP.

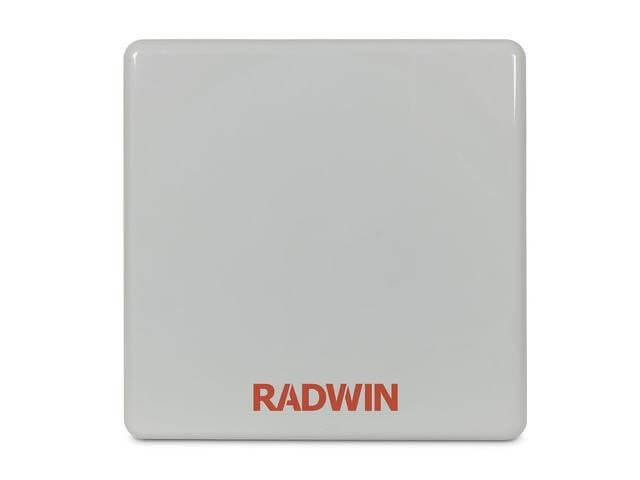

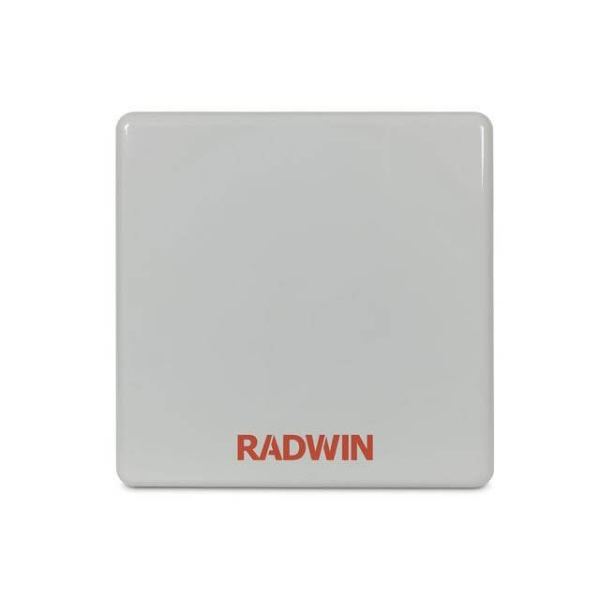

RADWIN 2000 E Point-to-Point is an outdoor radio that works in the 4.9 to 6 GHz band and delivers up to 2.5 Gbps. The radio ensures outstanding performance and the highest possible throughput in congested spectrum, using a field-proven air interface. The unit comes with an integrated antenna that assures best interference mitigation via remarkably low side lobe levels.

RADWIN 2000 E exceptionally powerful packet-switching performance facilitates high short packet traffic. It also leverages upon the industry-strong encryption scheme (AES 256), to ensure top level security. RADWIN 2000 E enables radio collocation using a built-in GPS, to save upon hub tower space when deployed in the hub site. IP 67 compliant.  This is a an extremely durable wireless broadband solution.

Product Highlights

  • Up to 2.5Gbps net aggregated*
  • 4.9-6.06 GHz
  • Ch. BW 20 / 40 / 80 / 160 MHz1
  • Integrated antenna – 24dBi, -22dB SLL
  • Up to 4096QAM
  • Latency (avg) < 2.5msec
  • Up to 120 km / 75 miles
  • Adaptive modulation
  • Dynamic CBW selection
  • Configurable UL/DL ratio
  • TDD synchronization for colocation**
  • AES-256 over-the-air encryption
  • 8 queues QOS (Diffserv/802.1P)**
  • Built-in GPS
  • Highly durable – IP 67
  • GPS-based regulation identification

Unmatched capacity with the industry’s highest capacity, supporting up to 2.5Gbps @160MHz and 1.2Gbps @ 80MHz.  Distance and External interference dependant.  We recommend a maximum range of 5 miles to achieve gigabit throughput.

Radio collocation capabilities:
With a built-in GPS, RADWIN 2000 E microwave back-haul enables radio collocation, saving upon hub tower space when deployed in a hub site.

Enhanced security:
Leveraging upon the industry-leading encryption scheme of AES 256, RADWIN 2000 E ensures top level security for mission critical applications.


  • PtMP base-stations backhaul
  • 4G mobile backhaul
  • Backup or gap filler for fiber networks
  • Business customer access
  • Private network connectivity (e.g., Campuses, smart cities, municipalities, critical infrastructure etc.)

Additional information

Weight 30.0000 lbs
