60 GHz High Throughput, Ethernet Bridge, 44 dBi Antennas, 7.6 Gbps, PoE, Mount

$3,849.00

Part #: GNS-5463

Availability: In Stock
Categories: ,
Tag:

Description

60 GHz High Throughput, Ethernet Bridge, 44 dBi Antennas, 7.6 Gbps, PoE, Tilt Mount Included.

This wireless bridge is a complete link, operating at 60 GHz, with wireless technology developed by Cambium Networks that offers very high-speed connectivity with low latency and zero interference. The V3000 radios are a specific model of the cnWave platform and offers a very low latency, high throughput, secure point to point link.

This high-capacity outdoor fixed wireless broadband system designed for multi-gigabit connectivity in point-to-point (PTP) and point-to-multipoint (PMP) applications.

Here are the specifications:

  • Radio frequency: 57-71 GHz
  • Modulation: QPSK to 256 QAM
  • Channel bandwidth: 2.16 GHz, 4.32 GHz* (future release)
  • Antenna gain: 44 dBi (for both integrated and external antennas)
  • Radio chains: 4×4
  • Maximum data rate: Up to 7.6 Gbps (3.8 Gbps Upload/3.8 Gbps Download) with channel bonding
  • Interfaces: 1x 100/1000/10G BaseT, 1x 100/1000 BaseT with 802.at POE OUT, 1x SFP+
  • Power options: Passive POE (42-57V) without AUX POE Out
  • Maximum power consumption: 55 watts
  • Operating temperature: -40°C to 60°C (-40°F to 140°F)
  • Dimensions: 14x16x14″
  • Weight: 9 lbs

The GNS-5463 point to point link is an ideal solution for point-to-point (PTP) fixed broadband links, offering several benefits over traditional wired links:

  1. High Capacity: The cnWave enables multi-gigabit connectivity for high-capacity data transfer and low-latency applications. This allows service providers to deliver higher-speed services to customers, and for businesses to support bandwidth-intensive applications.

  2. Interference-Free: The cnWave V3000 operates in the un-congested 60 GHz frequency band, which is unaffected by interference from other wireless devices and offers high levels of security.

  3. Easy Deployment: This link is designed for outdoor use and features a compact and rugged form factor, allowing for easy deployment in a variety of environments. The unit is also powered via PoE , making it simple to install without the need for additional power cabling.

  4. Cost-Effective: The cnWave offers a cost-effective alternative to traditional wired links, with lower installation and maintenance costs. It also offers greater flexibility, allowing for easy scalability as network requirements grow.

  5. Low Latency: The cnWaves low latency performance enables real-time applications such as video conferencing and online gaming, making it ideal for businesses and service providers that require high-performance connectivity.

Overall, this high capacity backhaul offers a reliable, high-performance, and cost-effective solution for point-to-point fixed broadband links, enabling service providers and businesses to meet the growing demand for high-speed connectivity.

What’s included in this  Wireless Bridge (complete link):

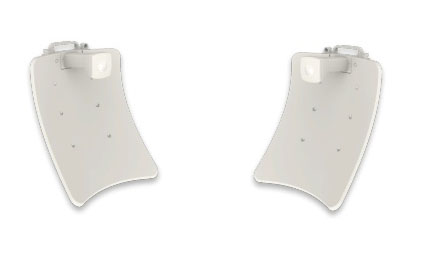

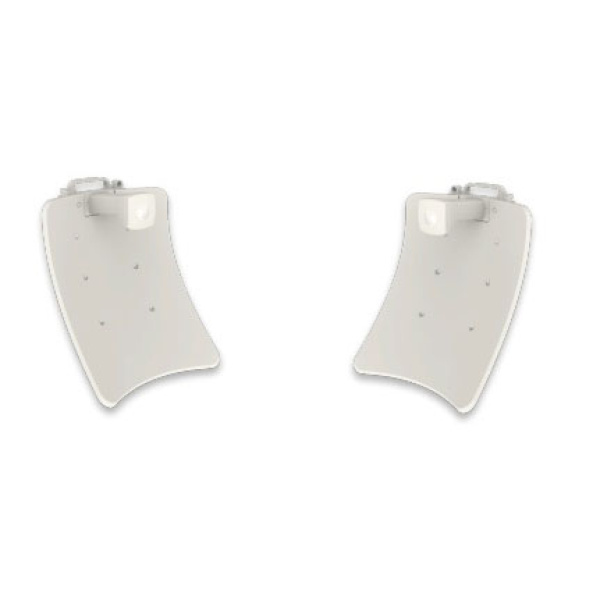

  • 2x Outdoor 60GHz 802.11AY Bridge Antennas
  • 2x 10 Gigabit Power over Ethernet Injector US-POE
  • 2x 50ft. Shielded cat6e Ethernet Cable
  • 2x Tilt Bracket Assembly
  • 2x 60 GHz cnWave V3000 Client Node Antenna Assembly
  • Pre-Configured for Plug-N-Play
  • US Based Technical Support
  • Free Cloud Configuration
The radios include a secondary, gigabit POE output, for powering access points, security cameras, or other PTP backhauls.

Maximum Range:

This building to building high speed Ethernet bridge is pre-configured and paired to each other, for “out of the box” installation and operation.  Operating at 60 GHz gives you an interference free wireless communication between any 2 buildings, but range is not like the 5 GHz counterparts.  Manufacturer specs state 1.5 KM, and we would recommend no more than 1 KM as a more realistic distance estimate.  In some scenarios, even with perfect line of sight, we would not recommend more than 1/2 mile to achieve the very high throughput potential these radios offer.  Clear, unobstructed LOS (Line of Sight) is a must.

No plastic tabs on this model.  Completely waterproof.  High quality construction.  Small Form Factor.  Cloud configuration included.  Get yours today!  Call now


Additional information

Weight 35 lbs
Availability

In Stock

Downloads

V3000 Backhaul Datasheet
