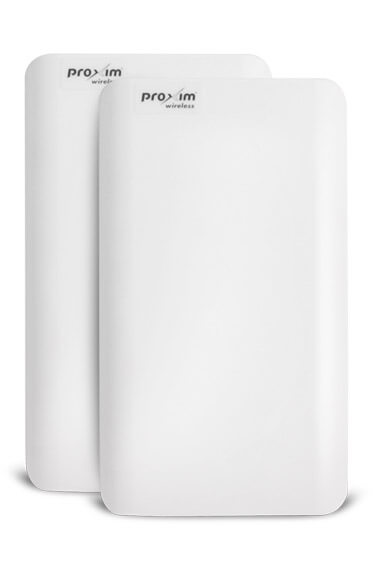

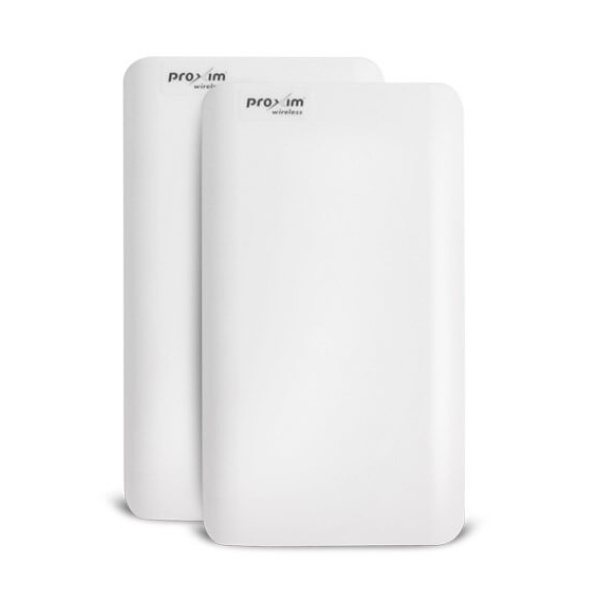

Tsunami QB 825 Link, 50 Mbps (upgradable to 100 Mbps), MIMO 2×2, 15 dBi Integrated Antenna, US PoE, Complete PAIR


Part #: GNS-QB825LNK

50 Mbps (upgradable to 100 Mbps), MIMO 2×2, 15dBi Antenna, US PoE

Availability: In Stock


Presenting Proxim’s newest compact Point-to-Point wireless backhaul solution.

Proxim Wireless is a leader and an early innovator in wireless technology providing high-speed, long-range broadband wireless solutions. Proxim introduces the Tsunami Quickbridge® 825 series, an incredibly cost-effective, non Line-of-Sight Point-to-Point (PtP) wireless backhaul solution. With this complete “Hop-in-a-Box” solution delivering up to 100 Mbps throughput, deployments of all sizes will enjoy a quick return on investment.

This link provides a complete pair of Proxim 825 radios, operating at 50Mbps throughput, (300Mbps Radio Rate), and is software upgradable to 100Mbps. ($500 upgrade).  The pair of radios are very small, and include external LEDs for alignment and troubleshooting assistance.  Power over Ethernet injectors are included.  U-bolts are included to mount to an existing mast.

With excellent spectrum efficiency and a highly evolved prioritization platform tailored to deliver voice, video and data applications, Tsunami Quickbridge® 825 series satisfies carriers, wireless service providers and Government organizations with requirements for reliable cost optimized high performance wireless backhaul.

Leveraging the advantages of OFDM and the latest MIMO radio innovations, Tsunami Quickbridge® 825 series draws on Proxim’s proprietary Wireless Outdoor Router Protocol (WORP®) to deliver an unmatched outdoor wireless performance when compared to other products in the market today.

World-class Performance

  • Features a very small form factor and an outdoor rated IP67 Metal enclosure Available with 15 dBi integrated antenna
  • 50 Mbps (license upgradable to 100 Mbps) or directly 100 Mbps of throughput with maximum data rates of 300Mbps
  • Provides flexible channel planning with support for 5.150 to 5.925 GHz
  • Comes with a 2×2 MIMO high power radio capable of 26 dBm transmit power
  • Allows flexible bandwidth allocation for service tiers
  • Spectrum analysis feature helps to study frequency bands for interference, and select a relatively low interference channel

All-in-One Link with Security Features

  • Built-in feature rich network protocols for Bridging and Routing
  • Advanced encryption protects over-the-air transmission via AES-128
  • Radio mutual authentication eliminates unauthorized use of the system by rogue End Point and man-in-the middle attacks
  • MAC, Ether type, IP address packet filtering provides granular network security
  • Uses Proxim’s Wireless Outdoor Routing Protocol (WORP®) to prevent snooping
  • Features highly-secure remote management via SSL, SSH and SNMPv3

Cost Effective and Ease of Installation for Quick Return on Investment

  • Low-cost bundle including both radio and mounting kit provides the industry's most aggressive price point , enabling any deployment to enjoy a quick return on investment
  • License-free frequency bands worldwide provide reliable wireless broadband without the high cost of licensed frequencies
  • Comes as a complete "Hop-In-A-Box" compact outdoor form factor offering unprecedented ease of installation
  • Non Line-of-Sight capability provided by Advanced Orthogonal Frequency Division Multiplexing (OFDM) along with 2×2 MIMO eases deployment in challenging areas
  • Synchronization ready to optimize channel usage of collocated link


Additional information

Weight 25.0000 lbs
