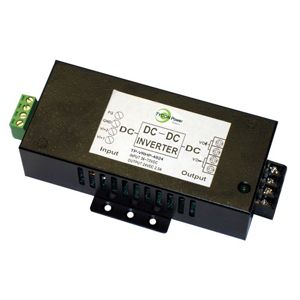

Voltage Regulator, 18-36VDC INPUT, 56VDC OUTPUT


Part #: TPVRHP-2456

Voltage Regulator, 18-36V Input, 56V Output

Availability: In Stock
Categories: , , ,


Voltage Regulator takes 18-36VDC Input, and provides 56V Output at 70W


  • High Output, Short Circuit Protected
  • Metal Enclosure, DIN rail mounting
  • Industrial Temperature Operation
  • Most Models Isolated Input to Output


  • Security Systems
  • Remote Power Systems
  • Telecom Applications
  • Wireless Base Stations

Voltage Converter 18-36VDC Input, 56VDC @ 1.25A 70W Regulated output.

The TPVRHP-2456 is a 70W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 56VDC @ 1.25A 70W. These units are perfect for providing 56VDC voltage from 24VDC battery banks. Input and outputs are wire terminals for wire up to 12AWG. Operates from -30 to +65 deg C.

Additional information

Weight 10.0000 lbs

In Stock


Voltage Regulator Spec Sheet Size: (2.97 MB)
