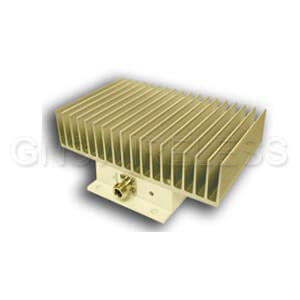

12-103, 900 MHz 10 Watt Outdoor Amplifier (Indoor DC injector & PS included)

$1,295.50

Part #: 12-103

12-103, 900MHz 10 Watt, Outdoor Amplifier

Brand:
Special Order
Availability: In Stock
MFG Part #: 12-103
Category:

Description

12-103, 900 MHz 10 Watt Outdoor Amplifier. Includes indoor DC Injector and Power Supply.

 10 Watt Outdoor 900 MHz Amplifier

Maximize wireless range and reliability with this high-power 900 MHz amplifier, ideal for long-range SCADA, IoT, and remote telemetry applications.

Boost your 900 MHz wireless signal with the 12-103 10 Watt AMP – a rugged, weatherproof amplifier delivering 10 Watts of output power with smart, automatic gain control for consistent performance in even the harshest environments.

Whether you’re extending the reach of a remote monitoring system or improving signal strength for a wireless link across miles of open terrain, this amplifier ensures stable, interference-resistant communication at all times.


🔧 Key Features

  • 10W Output Power – High-power RF performance with automatic power adjustment via AGC

  • Bi-Directional Amplification – Full support for TDD systems using frequency hopping or DSSS

  • Indoor DC Injector Included – Simplifies installation and power delivery

  • Rugged Outdoor Design – Weather-sealed housing with built-in lightning and surge protection

  • Wide Temperature Range – Reliable operation from -30°C to +70°C

  • Simple N-Type RF Connectors – Ensures quick integration with existing 900 MHz antennas and devices


📐 Technical Specifications

Specification Details
Frequency Range 902 – 928 MHz
Output Power +40 dBm (10 Watts)
Transmit Gain 28 dB (adjustable to 33 dB)
Receive Gain 12 dB ±1 dB
Noise Figure 3.5 dB typical
RF Connectors N-type, female, 50 Ohm
Operating Temperature -30°C to +70°C
Power Requirements 12–15VDC @ <2A
Dimensions 7.5″ x 6″ x 3″
Weight 2.8 lbs
Lightning Protection Integrated (Quarter-Wave)

📦 What’s Included

  • (1) 10 Watt Outdoor 900 MHz Amplifier (N-Female to N-Female)

  • (1) Indoor DC Power Injector (N-Female to N-Female)

  • (1) 120V Power Adapter

  • Mounting hardware (optional)


🧰 Perfect For:

  • Long-range wireless bridge links

  • Rural or remote broadband systems

  • SCADA and industrial automation networks

  • Agricultural and IoT telemetry systems

  • Government and military communication infrastructure


💬 Customer Feedback

“Using the 12-103 10 Watt amplifier, we were finally able to maintain a stable connection between our control center and a wellhead over 5 miles away. No more dropped packets, and no more site visits just to reset radios.”

Bryan T., Oilfield Systems Engineer


📞 Need Help Choosing the Right Amp?

Contact GNS Wireless at 877-209-5152 for expert advice or email support@gnswireless.com.


✅ Buy with Confidence

✔️ In Stock & Ready to Ship

✔️ 1-Year Warranty Included

✔️ Backed by GNS Wireless Tech Support

👉 Order Now and boost your 900 MHz signal range today!

Additional information

Weight 15.0000 lbs
Availability

In Stock

MFG Part #

12-103

Downloads

12-103_Datasheet.pdf Size: (329.92 KB)
