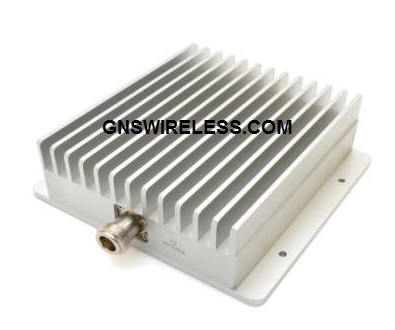

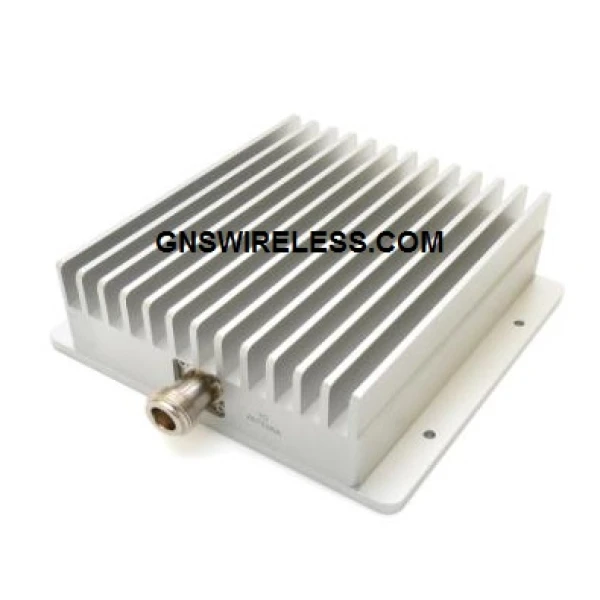

12-229RFW, 2.4 GHz, 15W Outdoor Amplifier with AGC (Automatic Gain Control)

2400

Part #: 12-229RFW

12-229RFW SmartAMP 2.4GHz 15W Amplifier with AGC

Availability: In Stock
MFG Part #: 15W Amplfiier
Categories: ,

Description

15W 2.4 GHz Amplifier with Automatic Gain Control (AGC)

SmartAmp™ is designed for extending the range of ISM Band of 900MHz, 2.4 GHz and 5.8GHz wireless radio devices, It support IEEE 802.11b/g/n or 802.11a/n radio. The SmartAmp™ is Bi-directional, in TDD Time Division duplex operation mode, provides the transmit power amplification as well as receive signal gain.  This amplifier is a 15W, 2.4GHz Amplifier supporting Automatic Gain Control.

The built-in dynamic power sensor in SmartAmp™ adjusts the Radio Frequency (RF) power output level by reading the input signal power. This Automatic Gain Control (AGC) Technology, Teletronics’ patented technology effectively making the RF amplifiers “Plug & Play” delivers the maximum output power at various input levels while keeping the distortion at a minimum.

This 15W 2.4 GHz Outdoor Amplifier with AGC (Automatic Gain Control) requires N-Male coaxial cables to connect to your wireless router, access point or other device.  GNS Wireless stocks custom coaxial cables for wireless networking such as N-Male to RP-TNC-Male, or N-Male to RPSMA-Male, and many others.  Contact us for more information.  Custom lengths are available.

FCC NOTICE:

The use of all indoor wirelss and outdoor wireless radio equipment is subject to radio regulations in each country. It is the responsibility of the purchaser/installer/operator to insure that only approved equipment/systems are deployed. For the ISM band (900MHz, 2.4GHz, 5.7GHz) equipment manufactured, sold/or used in the USA, FCC Title 47, Part 15 governs the sale, lease, use and manufacture of equipment (wireless LAN cards, wireless Access points, amplifiers, etc.) and prohibits the same unless such equipment is used in the FCC-certified system configuration with which such equipment is authorized.

Additional information

Weight 20.0000 lbs
Availability

In Stock

MFG Part #

15W Amplfiier

MSRP

2400

Downloads

12-229RFW Datasheet Size: (324.41 KB)
