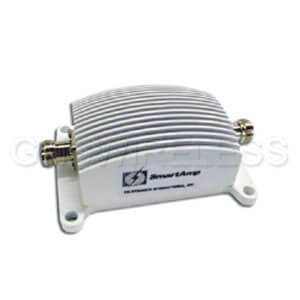

12-301, 2.5-2.7GHz, 10W, MMDS Outdoor Amplifier

Features:

10 Watt Outdoor

Operating Range:

2500 - 2700 MHz (MMDS)

Operating Mode:

Bi-directional, TDD

Transmit Gain*:

10 dB

Frequency Response:

± 1 dB

Output Power:

10 Watt (40 dBm ± 2 dB Across the Band)

TX Input Power:

28 - 32 dBm

Receiver Gain:

10 dB

Noise Figure:

<= 2.5 dB typical

Connectors:

N-Type Female

Power Consumption:

N-type, female, 50 Ohm

AMP Dimensions:

Tx = 4.7 A, @ 12 V DC

Heat Sink Dimensions:

4.75" L x 7.5" W x 1.75" H

Operating Temperature:

-40 °C to + 60 °C
