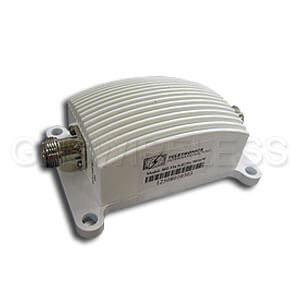

12-507, 5 GHz 1000mW Indoor Amplifier

$950.00

Part #: 12-507

5 GHz 1000mW Indoor Amplifier, 5.7 to 5.8

Brand:
Availability: Out of Stock
MFG Part #: 12-507
Categories: ,

Description

802.11A, 5 GHz, 5725-5875 Inline Amplifier, 1000mW



This 802.11a 1Watt amplifier is ideal for increasing the range of 802.11a radio devices and to compensate for cable loss in certain installations.

RF Amplifier 5.8GHz Series, 1Watt Outdoor Version

Designed for extending the range of wireless radio devices requiring high linearity amplfiication and is particularly effective when used with
802.11a Orthogonal Frequency Division Multiplexing (OFDM) radio devices.  This unit provides the transmit power amplification as well as receive signal gain.

Technical Specifications

Features:

1 Watt Indoor Amplifier for 5.8 GHz

Operating Range:

5725-5875 MHz

Operating Mode:

Bi-directional, TDD

Transmit Gain:

17dB

Frequency Response:

± 1 dB

Output Power:

1W (+30dBm) @ 13dBm input

TX Input Power:

1mW (0dBm) min, 20 mW
(13dBm) max

Receiver Gain:

12 dB typical

Noise Figure:

3.5 dB typical

LED Inidicators:

RED

GREEN/ORANGE

Solid On: Power
and Receiving mode
Off: No Power

Blinking: Transmitting

Connectors:

N-type Female

Lightning Protection:

Direct DC ground at antenna

DC Surge Protection:

600 Watts TVS @ 12 VDC

Power Consumption:

1.5A @ 12 VDC

Operating Temperature:

-40 °C to + 70 °C

Additional information

Weight 15.0000 lbs
Availability

Out of Stock

MFG Part #

12-507
