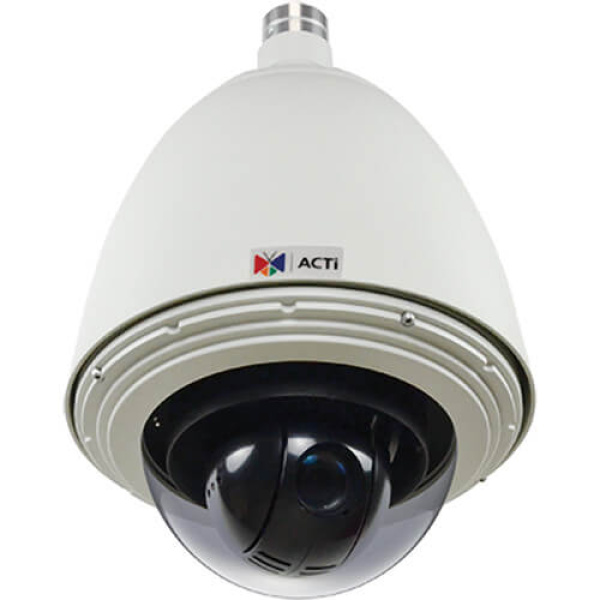

| Model | KCM-8211 |
| Product Type | PTZ |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux, B/W: 0.05 lux at F1.6 |
| Mechanical IR Cut Filter | Yes |
| IR LED | No |
| Lens | Zoom, f4.7-84.6mm / F1.6-2.8, DC iris, Auto focus |
| Zoom Ratio | 18x optical, 16x digital |
| Panning and Tilting Range | Pan: 0°-360° (with Auto-flip); Tilt: 0°-180° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 48.9°-3.6° |
| Compression | H.264, MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 15 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480 |
| Multi-Streaming | Dual streams |
| Wide Dynamic Range | Advanced WDR (80 dB) |
| Digital Noise Reduction | 2D+3D DNR |
| Defogging | Defogging |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Network Connector | RJ-45 |
| Digital Input/Output | 2/2 |
| Power Source | DC 12V; High PoE |
| Environmental Casing | Weatherproof (IP66); Vandal proof (IK10) |
| Bundled Accessories | Power adapter |
| Mount Type | Pendant, Wall, Corner, Pole |
| Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9 |
| ONVIF Compliant | Yes |
| Heater | Yes |
| Fan | Yes |
| Starting Temperature | -30°C ~ 45°C
(-22°F ~ 113°F) within 30 minutes |
| Operating Temperature | -40°C ~ 45°C
(-40°F ~ 113°F) |
| Approvals | CE, FCC, IP66, IK10, UL (for optional PoE injector and power adapter) |
| Warranty | 3 Years*
(1 Year in continuous motion) |
