Description

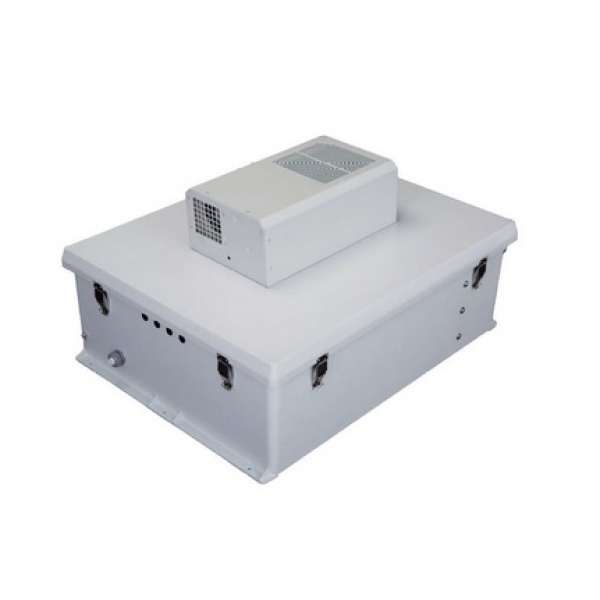

30x24x11 120VAC NEMA Weatherproof Enclosure with AC.

Built-in 300W (1,020BTU) DC powered A/C system

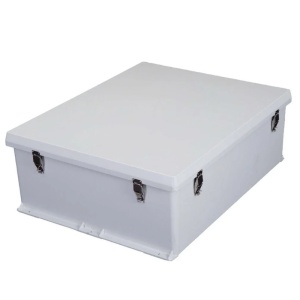

The box is a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications.  Constructed from molded fiberglass reinforced polyester, it is well suited for high temperature or corrosive environments. The mounting flange allows it to be wall mounted as well as on a flat surface. The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The raised lid is fully gasketed. The enclosure material is UV stabilized and comes in machine tool gray.
The internal plate features four standard surge protected 120 VAC outlets and a terminal strip to supply power to internal equipment.

Material  FRP (Fiberglass Reinforced Polyester)
Color Tool Gray – RAL 7035
Voltage | Vac 120
Heater | F° (C°) N/A
Heat Temperature ON/OFF | F° (C°) N/A
A/C Current, Max | Amp 4
A/C Temperature ON | F° (C°) 86 (30) | Adj. 60 (18) – 122 (50)
Mounting Plate Dimensions | in (mm) 23.3 (592) x 29.5 (749) x 0.1 (2.5)
Mounting Plate Material Anodized Aluminum
Weight | lb (kg) 44.8 (20.3)
Outside Dimensions, Max | in (mm) 31.5 (800) x 25.5 (648) x 17.0 (432)
Inside Dimensions | in (mm) 30.0 (762) x 24.0 (610) x 10.6 (269)
Flame Rating UL 94-5V
RoHS Compliant
Environmental Rating | NEMA – IP 4, 4X – 56
Cable Feed 1x 1/2in Conduit | 4x PG11
