320W Solar, 12V/24V 200Ah Battery Setup with 20A MPPT Controller. Remote system provides 50W continuous power.

$3,546.50

Part #: RPSTL1224M-200-320

50W Solar Package with 320W Solar Panels, 200Ah Battery

Availability: Out of Stock
Category:

Description

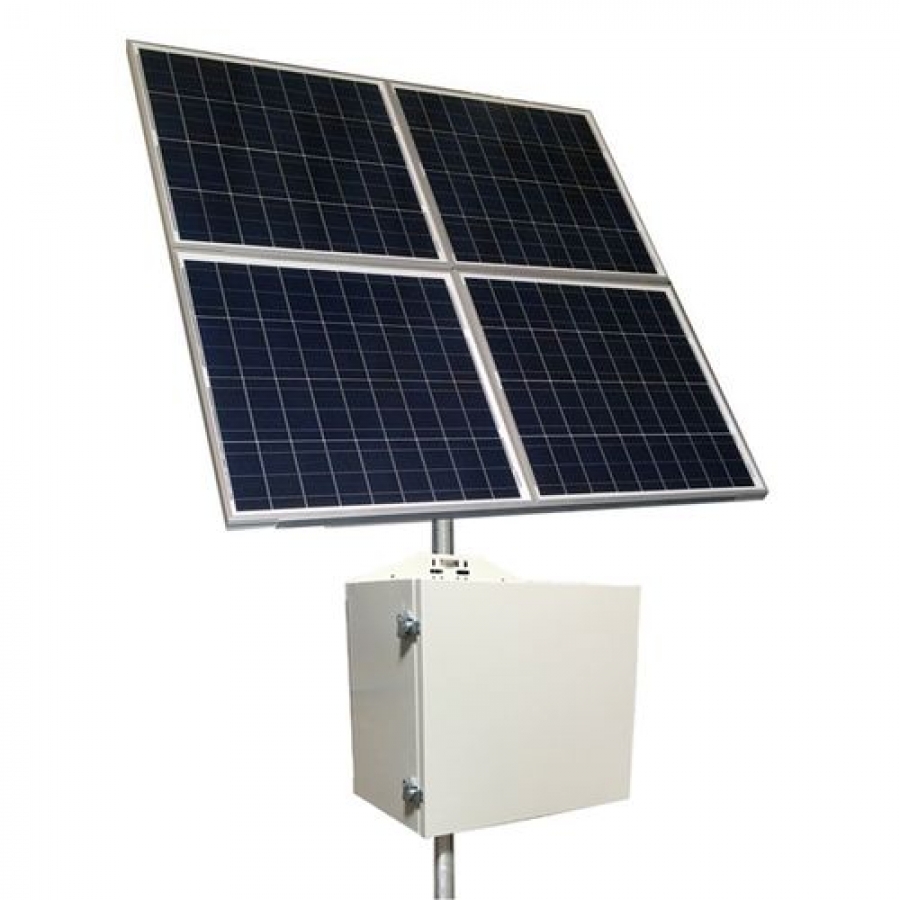

50W Solar Package using 320W Solar Panels with 12V or 24V POE Output, 200Ah Battery

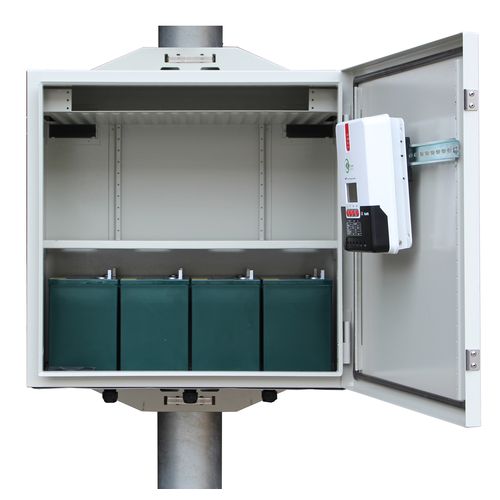

The RPST1224M RemotePro MPPT series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

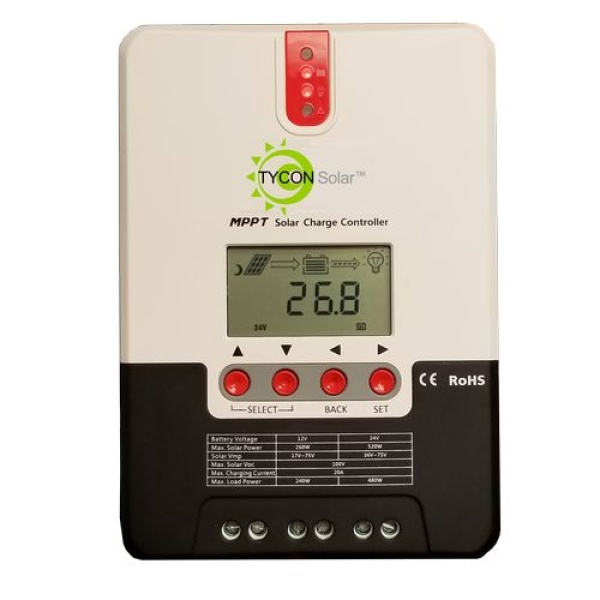

The remote solar systems can be configured as 12VDC or 24VDC for greater compatibility. The manageable MPPT solar controller improves system efficiency by about 15% meaning that more solar energy reaches the batteries. It supports up to 20A load control.

All enclosures are hinged and gasket sealed with tamper resistant locks for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 40°C.

The high quality 320W solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting systems.

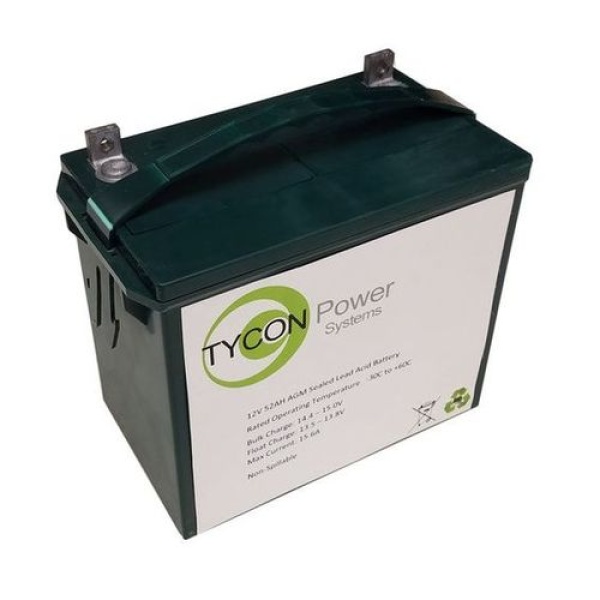

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

The remote solar package come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.



Features

  • Weatherproof (IP65), UV resistant, outdoor enclosures
  • Powered from AC mains power and/or Solar
  • Interior space for customer electronics
  • Wall or Pole Mounting
  • Isolates Customer Equipment from Power Line Surges
  • High Quality AGM Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Mission critical outdoor power
  • Backup Power Systems



Please contact us directly to order this product.  Shipping cost is not included.
