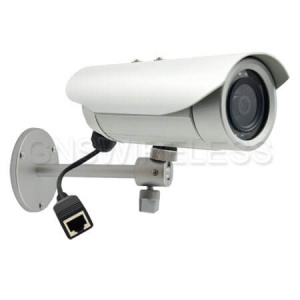

ACTi D42A Outdoor IR Day/Night 3 Megapixel Network Security Camera Specifications
- Device Type: Bullet Camera
- Image Sensor: Progressive Scan CMOS
- Sensor Size: 1/3.2"
- Day / Night: Yes
- Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
- Color to B/W switch: ISP based switch, configurable
- Mechanical IR Cut Filter: Yes
- IR Sensitivity Range: 700~1100nm
- IR LED: IR LED x 15 (850 nm)
- IR Working Distance: 10 m (0 lux, 30 IRE, Max exposure gain)
- Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
- Focal Length / Aperture: Vari-focal, f2.8 - 12 mm / F1.4
- Iris: Fixed iris
- Focus: Manual focus
- Mount Type: Board Mount
- Horizontal Viewing Angle: 70.5° ~ 28.2°
- Compression: H.264 HP, MJPEG
- Maximum Frame Rate vs. Resolution: 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Multi-Streaming: Simultaneous dual steams based on two configurations
- Bit Rate: 28 Kbps - 6 Mbps (per stream)
- Bit Rate Mode: Constant, Variable
- Image Enhancement: White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flicker less
- Privacy Mask: 4 configurable regions
- Text Overlay: User defined text on video
- On-Screen Graphics: User defined image layer on video
- Image Orientation: Image flip and mirror
- Protocol & Service: TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
- Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
- Alarm Trigger: Video motion detection (3 regions)
- Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server
- Power Source: PoE Class 2 (IEEE802.3af)
- Consumption: 4.61 W (IR on)
- Weight: 595g (1.31lb)
- Dimensions (Ø x L): 77 mm x 218 mm (3.03" x 8.58")
- Bundled Accessories: Bracket
- Environmental Casing: Weatherproof (IP66 rated)
- Mount Type: Wall, Ceiling, Corner, Pole
- Starting Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
- Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
- Operating Humidity: 10% ~ 85% RH
- Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, NEMA 4X
- Unified Solution: Fully compatible with ACTi software
- ISV Integration: Software Development Kit (SDK) available; ONVIF compliant
- Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
