BW-Eagle Base ODU 1Gbps, High Band ODU Spare Unit, 80GHz, -48VDC & PoE, 5 port GigE (3x RJ45, 2x SFP), upgradeable to 3 Gbps, 1 year warranty

$11,910.00

Part #: BW-EAGLE-H

BW-Eagle Base ODU 1Gbps, High Band ODU Spare Unit, 80GHz

Brand:
Availability: Contact Us
MFG Part #: BW-EAGLE-H
Category:

Description

BW-Eagle Base ODU 1Gbps, High Band ODU Spare Unit, 80GHz, -48VDC & PoE, 5 port GigE (3x RJ45, 2x SFP), upgradeable to 3 Gbps, 1 year warranty

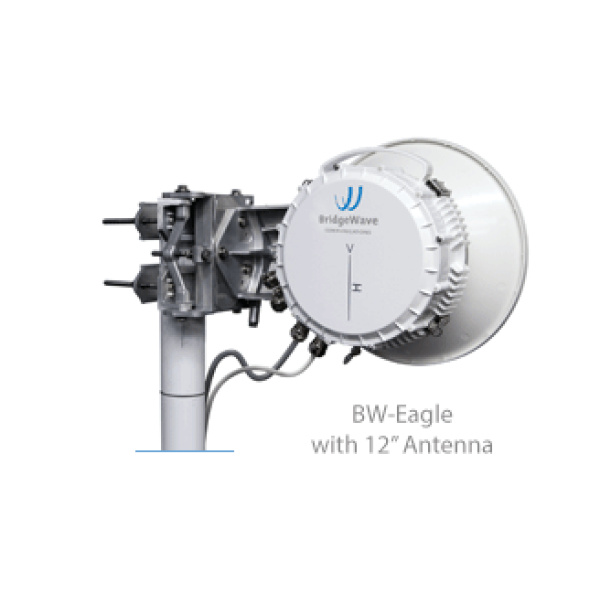

The all-outdoor BridgeWave Eagle is the highest availability 3Gbps radio on the market.

This carrier-grade system, operating in the 71-86 GHz frequency band, supports link distances up to 5 miles/8 km at 99.995%, and features hitless adaptive rate and modulation. Capacity can be increased from 1 Gbps to 2 Gbps or 3 Gbps with simple software license keys, eliminating the need for costly “forklift“ upgrades and offering maximum deployment flexibility. The BridgeWave Eagle is field-proven with thousands of links already in use worldwide.

Key Featurs of BridgeWave Eagle:

Performance
Spectrum efficient, highest availability with delivery at 64QAM of up to 3 Gbps full duplex per 1+0 radio or 6 Gbps full duplex per 2+0 radio
Hitless Adaptive Rate and Adaptive Modulation QPSK/8PSK/16/32/64QAM
Link distances up to 5 miles/8 km at 99.995% availability
Internal Carrier Grade L2 switch supporting SyncE and IEEE1588v2 timing synchronization and carrier-grade Ethernet features
Power over Ethernet or Direct DC Input

Applications
4G/LTE backhaul for access and aggregation
“Last Mile“ fiber extension for enterprises
Temporary high capacity links for disaster recovery
Local Area Network (LAN) Extensions
Long Range Point to Point Wireless Backhaul
Wireless Ethernet Microwave Bridge
Wireless Fiber Replacement Bridge
High Capacity WLAN Bridge
80 GHz Microwave Backhaul
Gigabit Point to Point Wireless Bridge

Additional information

Availability

Contact Us

MFG Part #

BW-EAGLE-H
