2.4 GHz + 5 GHz 802.11AC Campground Wi-Fi Hotspot Package | 500ft. Range, 802.11N/AC


Part #: GNS-1585

2.4GHz, 802.11N, 360º, Wireless Hotspot – 500ft. Range, 10dBi

Availability: In Stock


2.4 GHz 802.11AC Campground Wi-Fi Antenna Package for Long Range Wireless.  Now Dual-Band with Cloud Management Support.

Thousands of RV Parks and Campgrounds are requiring fast, reliable and easy to setup Wi-Fi at their park.  Using a pre-packaged Wi-Fi antenna package from GNS Wireless, it has never been easier.  Extend your wireless network instantly by simply connecting the outdoor antenna to your new or existing router, power up, and connect!  Each GNS-1585 hotspot package comes with everything you need to extend your Wi-Fi network up to 300ft. from wherever you have an Ethernet port.   The modules are extremely easy to deploy as they come pre-configured and pre-paired to connect…per your specifications.

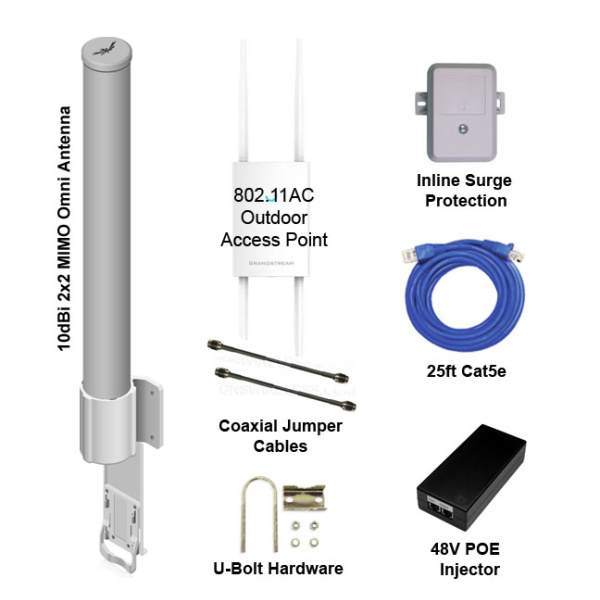

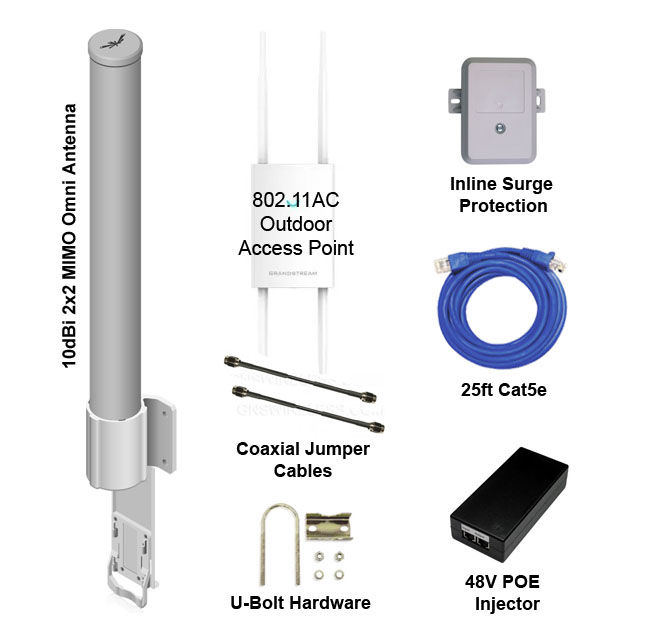

What’s included in this Wi-Fi Equipment Package:

1x Outdoor, Weatherproof, 802.11AC, 500mW, 1000 Mbps Access Point
1x 10dBi, 2.4GHz, 360º Omni Directional Antenna (2×2 MIMO)
1x POE/PS (Power-over-Ethernet)
1x Pole Mount Hardware for 1-2.5″ OD mast
1x 50ft. Cat5e Ethernet cable
1x Inline Surge Arrestor
2x RPSMA-Male to RPSMA-Male Pigtail Cable

The GNS-1585  Wireless Hotspot Equipment Package is now dual band, 802.11AC with cloud management control.  Customized for owners who are looking to add Wi-Fi to their location, where speed and reliability is equally important. This package can be the basis of your Wireless Hotspot network if you plan to expand the Wireless Network in the future, either by extending the range, or by increasing the number of available clients connected to the network.  This package greatly extends the wireless network in all directions.  External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum distance Access Point can be placed away from your router is 250ft. (Shielded cat5e is recommended).  There is a 1 year warranty on all items, which includes lifetime technical support.
Hotspot Package Description:

This 802.11B/G/N/AC Wi-Fi Hotspot includes a high gain, 10dBi, omni-directional antennas that operates at 2.4 GHz.  It also now includes a pair of dipole antennas that connect directly to the bottom of the access point for broadcasting 5 GHz.  The pole mount hardware, POE injector, and power supply are included. This Wi-Fi Hotspot will enable you to broadcast a Wi-Fi signal up to 500ft., assuming clear, unobstructed line of sight to your end user. Only a single cat5e cable is required to connect your indoor router, to the outdoor access point.  Keeping it in close proximity of the antenna will maximize signal and reliability.  We include a 3ft. coaxial cable for this reason.  If you feel you need longer coaxial cable, please contact us.   This Wireless Hotspot Equipment Package will allow you to reach RV’s, Campers, or boat slips that are 1000ft. away, with minimal obstruction. If you have a particular application you would like to discuss, please contact us anytime.

Need to go further?

If you have a larger campground and need multiple access points, order up to 10 of these GNS-1585 packages, and link them together with cat5e or cat6e cable.  If hardwiring them is out of the question, you can link them together using a wireless point to point bridge, GNS-5460.  This will mesh all the access points, and create one large wireless mesh network.  Easy to install, and ships pre-configured for fast installation.

Additional information

Weight 30.0000 lbs
