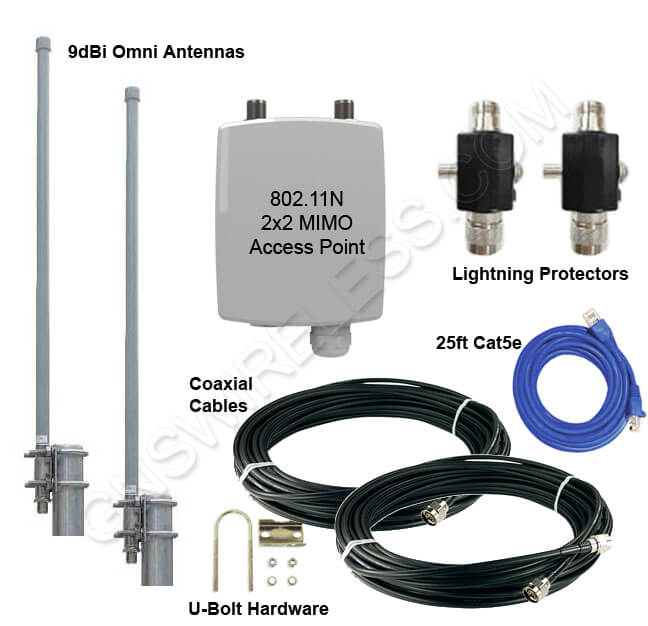

Whats included in this wireless hotspot equipment package:
1x Outdoor, Weatherproof, 802.11N, 250mW, 300Mbps Access Point
2x 9dBi, 2.4GHz Omni-Directional Antennas (N-Female)
2x Lightning Arrestors (NM/NF)
2x N-Male to N-Male, 3ft. coaxial cable
1x POE/PS (Power-over-Ethernet)
1x Pole Mount Hardware for 1-1.5" OD mast
1x 25ft. Cat5e Ethernet cable
The GNS-1446-1WN is customized for owners who are looking to add Wi-Fi to their location, where speed and reliability is equally important. This package, although cost effective, can be the basis of your Wireless Hotspot if you plan to expand the Wireless Network in the future, either by extending the range, or by increasing the # of available clients connected to the network. External Signal LED's will assist with alignment and troubleshooting procedures. Maximum distance Access Point can be placed away from your router is 250ft. (Shielded cat5e is recommended). There is a 1 year warranty on all items, which includes lifetime technical support.
This wifi hotspot package can ship pre-configured for "out of the box" installation. Please contact us for details. The included access point is enclosed in a outdoor, weatherproof enclosure, enabling you to mount it outside next to the included antenna(s). The AP is powered via a POE injector, which is included. We recommend using sheilded cat5e cables when connecting to this device. Pole mount hardware is also included for both the AP and Antennas. There is a lightning protector that will be positiioned inline between the Access Point and Antenna. The Access Point has web based configuration, meaning that the default IP address will allow you to manage the settings. SSID, Security type/phrase, power settings, and network settings can be changed using this IP address.
This 802.11B/G/N Wi-Fi Hotspot includes dual, 2.4GHz, 9dBi omni directional antennas, dual lightning protectors, pole mount hardware, POE injector, and power supply. This Wi-Fi Hotspot will enable you to broadcast a Wi-Fi signal up to 500ft., assuming clear, unobstructed line of sight to your end user. With the built in amplifier, maximum power of 1000mW will help to reach extended areas, or applications which have more obstructions. It is recommended to mount the AP/Antenna combination at a minimum of 10ft. and maximum of 20ft. high. This will allow you to reach RV's, Campers, or boat slips that are 500ft. away, with minimal obstruction. If you have a particular setup you would like to discuss, please contact us anytime.
Connection to Network:
To connect the access point to your network a single Cat5 Ethernet cable is used. A 25ft. cable is included for this hotspot package. (If you need more cable, a maximum length of up to 200ft. can be used) The Cat5 Ethernet cable connects directly from the outdoor access point using a weatherproof grommet, to an indoor POE (Power-over-Ethernet) injector. The POE injector plugs into a standard AC outlet for power, and another Cat5 Ethernet cable connects from the POE injector to your network (Router/PC/Switch etc.)
