802.11A/N Client Bridge/Subscriber Radio w/ 15 dBi dual polarity antenna, POE

$158.00

Part #: PROPELLER-5

5GHz, 802.11N AP w/ 15dBi dual polarity antenna, POE

Brand:
Availability: Contact Us
MFG Part #: PROPELLER-5
Category:

Description

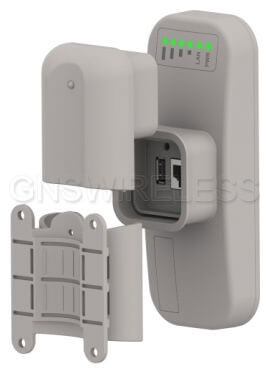

5 GHz Client Bridge, Small Size of Only 7″x3″x2″.  Mount it anywhere!

The APC Propeller 5 is a new generation wireless device designed for client and small scale base-station applications. It has a unique mechanism to do mechanical antenna parameter shifting and achieve the best performance in different operation modes (patent pending).

This product is equipped with a high output power MIMO radio (up to 28 dBm) and 15 dBi dual-polarized antenna which make the device ideal for short to medium range wireless communication.

Dual firmware image will allow safe software upgrades. The device will restart using the prior firmware in the event of an upgrade failure.

The APC Propeller 5 uses an advanced and feature-rich operating system which supports bridge/router and repeater modes (repeater mode allows the product to operate as an access point and as a station at the same time).

Deliberant OS also supports iPoll – proprietary wireless communication technology to increase throughput, packet per second rate and stabilize latency on your network. It has a user-friendly Adobe Flex based GUI with instant reconfiguration without a reboot, includes useful installation tools (site survey, delayed reboot, spectrum analyzer, ping, traceroute) and is compatible with our standalone and cloud based Wireless Network Management System (WNMS) – one of the most advanced management tools on the market.

The APC Propeller has a unique manual antenna characteristics adjustment, which allows using the device with a horizontal orientation for client mode. This greatly reduces interference, as the main noise source is on the azimuth. Alignment is easy as only left and right movement of the device is necessary (no need to move it upwards or downwards as the antenna angle on the elevation is wide).

FEATURES

160 Mbps capacity
50,000 PPS
4.780 – 6.100 GHz support
High output power 29 dBm radio
Integrated 15 dBi directional panel antenna
Powerful OS
iPoll 2  – enhanced communication protocol
Weather proof design
Free NMS (Infinity Controller)
Wall and pole mounting option

Additional information

Weight 15.0000 lbs
Availability

Contact Us

MFG Part #

PROPELLER-5

Downloads

Propeller 5 Datasheet Size: (1.74 MB)
