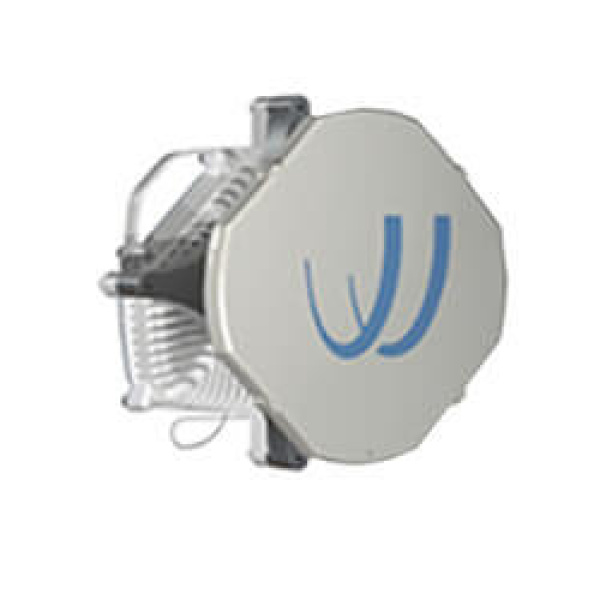

FL4G-5000-ANSI, Base ODU up to 3Gbps, full-duplex LINK, 80GHz, -48 VDC & PoE, 5 port GigE, upgradable to 5.3Gbps via software key

$16,900.00

Part #: FL4G-5000-ANSI

FL4G-5000-ANSI, Base ODU of 3Gbps, full-duplex 80GHz Link

Brand:
Availability: In Stock
MFG Part #: FL4G-5000-ANSI
Categories: ,

Description

FLEX4G-5000 ANSI Base ODU up to 3Gbps, full-duplex LINK, 80GHz, -48 VDC & PoE, 5 port GigE (1xRJ45, 4xSFP), TDM & CPRI Interfaces, upgradeable to 5350 Mbps via software key. 1 year warranty

The Flex4G-5000 is an E-band (70/80GHz) millimeter wave system delivering up to 5.35Gbps full-duplex data throughput per radio. It is available in two models: the Flex4G-5000 ANSI and Flex4G ETSI. The ANSI system delivers up to 5.35Gbps full duplex capacity per radio, and is scalable to 10.7Gbps in a 2+0 configuration; the ETSI system delivers 4.7Gbps full duplex throughput per radio and scales to 9.4Gbps in a 2+0 configuration. These ultra-high capacity systems boast increased system gain for the highest throughput at the longest distance. Each offers operators an alternative to fiber in dense urban areas, and provides public and private network operators with a backhaul system that quickly scales to meet future capacity requirements.

The all outdoor Flex4G-5000 alleviates the strain of backhaul connections by combining advanced radio and modem capabilities with carrier-grade 10G Ethernet, CPRI, and SONET/SDH features at the lowest total cost of ownership. The radio system supports highly integrated RF and spectrally efficient signal processing techniques to provide for the longest link distances, while maintaining multi-gigabit speeds and offering carrier grade features. Further enabling future-proof transport, Flex4G-5000 allows operators to flexibly provision links across multiple network topologies including mixing Ethernet, CPRI, and SONET/SDH traffic.

Key features of the FL4G-3000 include:

  • 5.35Gbps data rate (ANSI) per 1+0 radio, 10.7Gbps per 2+0; 4.7Gbps data rate (ETSI) per 1+0 radio, 9.4Gbps per 2+0;
  • 10Gbps Ethernet interface
  • Radio link aggregation to combine capacity from multiple radios to a single Ethernet cable, simplifying operational logistics and reducing costs
  • Adaptive Code Modulation to 64QAM ANSI or 256QAM ETSI
  • 1000/1250 MHz ANSI or 250/500/750MHz ETSI
  • Highest bit/Hz spectral efficiency at the longest link distances
  • Outstanding RF performance benefiting from highly integrated architecture
  • LDPC FEC providing threshold improvement over other FEC technologies
  • RF channel tuning across the entire 70/80 GHz band in 250 MHz steps
  • Automatic Transmit Power Control
  • Low power consumption and Power-over-Ethernet Optional
  • Optional 256-bit AES encryption

The new Flex4G-5000 radio systems have been designed for use in a wide range of applications:

  • Fiber extension/replacement – the last mile gap between the fiber backbone and commercial buildings not accessible by fiber, whether a fiber ring or a hop across the street. Much less costly than laying new fiber.
  • 3G/4G backhaul – multi-gigabit links that allow operators seamless transition to 5G.
  • Lease line replacement – eliminate recurring monthly leased line costs.
  • Redundancy – fiber-quality wireless backup to fiber for mission-critical data.
  • Disaster recovery – networks that need to be deployed quickly without fiber dependency, eliminating wait time for approvals, permits, etc.
  • Shared networks – ultra-high capacity hops shared among two or more network operators

The Flex4G-5000 sets a new standard in capacity, data throughput, flexibility, and value. Not only does the system offer exceptional performance and carrier-grade features, it dramatically lowers the cost per megabit to provide mobile operators, service providers, and enterprises with the lowest total cost of ownership.

Additional information

Weight 80.0000 lbs
Availability

In Stock

MFG Part #

FL4G-5000-ANSI

Downloads

Flex4G-5000_ANSI_datasheet.pdf Size: (156.26 KB)
