Description

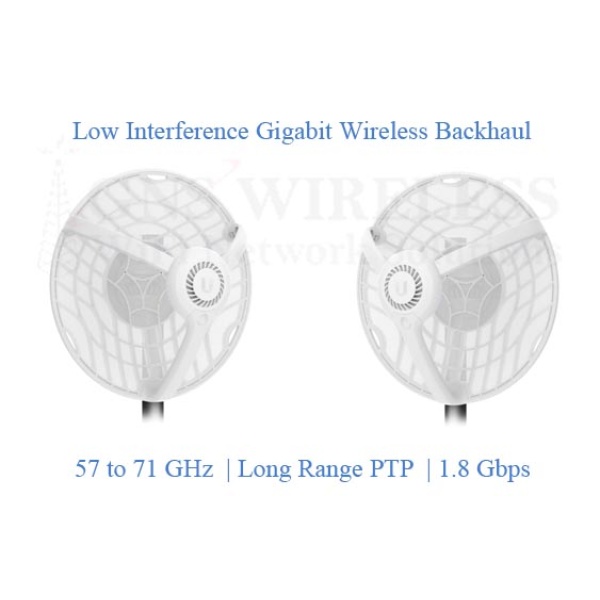

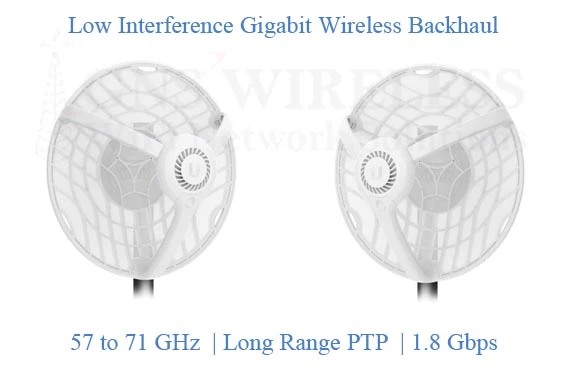

1.8 Gbps 60 GHz Long-Range Wireless Bridge Kit
Complete Pre-Configured Point-to-Point Wireless Ethernet Bridge
Need to connect two buildings without trenching fiber?
The GNS-5460-LR creates a dedicated wireless Ethernet bridge capable of delivering up to 1.8 Gbps throughput over distances of up to 1 mile with clear line of sight. Designed for high-capacity building-to-building networking, this complete bridge kit ships pre-configured, paired, tested, and ready for installation.
Operating in the 60 GHz spectrum, the GNS-5460-LR avoids the congestion commonly found on 2.4 GHz and 5 GHz networks, providing exceptional performance for high-bandwidth applications.
Why Choose the GNS-5460-LR?
✔ Up to 1.8 Gbps wireless throughput
✔ Up to 1 Mile with clear line of sight
✔ True point-to-point wireless Ethernet bridge
✔ Low interference 60 GHz operation
✔ Ultra-low latency
✔ Pre-configured and paired before shipment
✔ Complete installation kit included
✔ U.S.-based technical support
Ideal Applications
The GNS-5460-LR is perfect for:
- Building-to-building networking
- Extending Fiber Internet
- Sharing Starlink Internet
- Security camera backhaul
- Manufacturing facilities
- Warehouses
- Schools
- Campgrounds
- Marinas
- Municipal facilities
- Farms and agricultural buildings
- Remote office connectivity
Performance Specifications
| Specification | Value |
|---|---|
| Wireless Frequency | 60 GHz |
| Maximum Throughput | Up to 1.8 Gbps |
| Recommended Distance | Up to 1 Mile (Clear LOS) |
| Ethernet Interface | 10/100/1000 Mbps RJ45 |
| Radio Type | Point-to-Point Only |
| Encryption | WPA2-PSK (AES) |
| Channel Width | 2160 / 1080 MHz |
| GPS | Integrated |
| Operating Temperature | -40°F to 140°F |
| Maximum Power Consumption | 18 Watts |
| Power | 48V Passive Gigabit PoE |
| Weather Rating | Outdoor Industrial Design |
| Mounting | Precision Pole Mount Included |

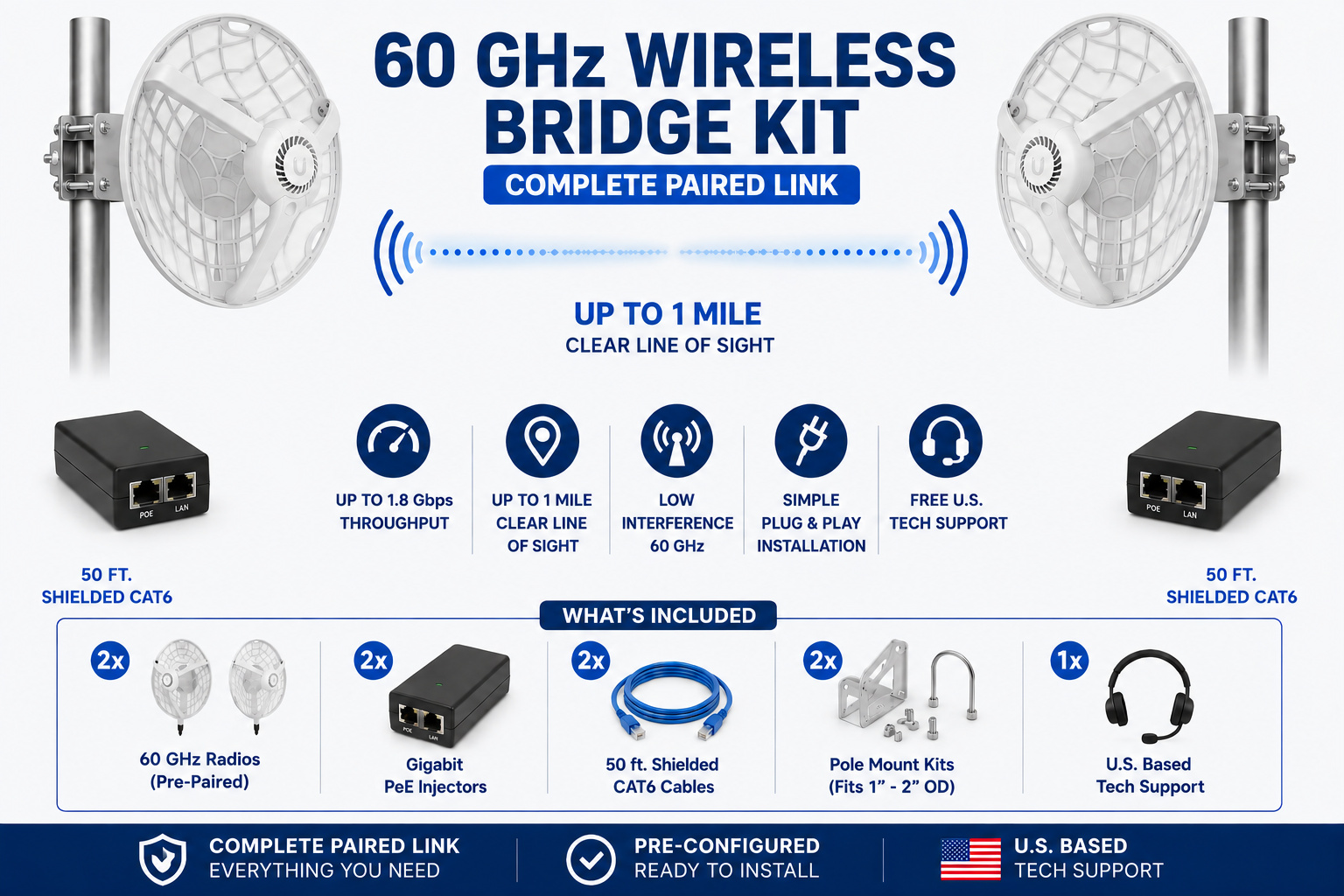

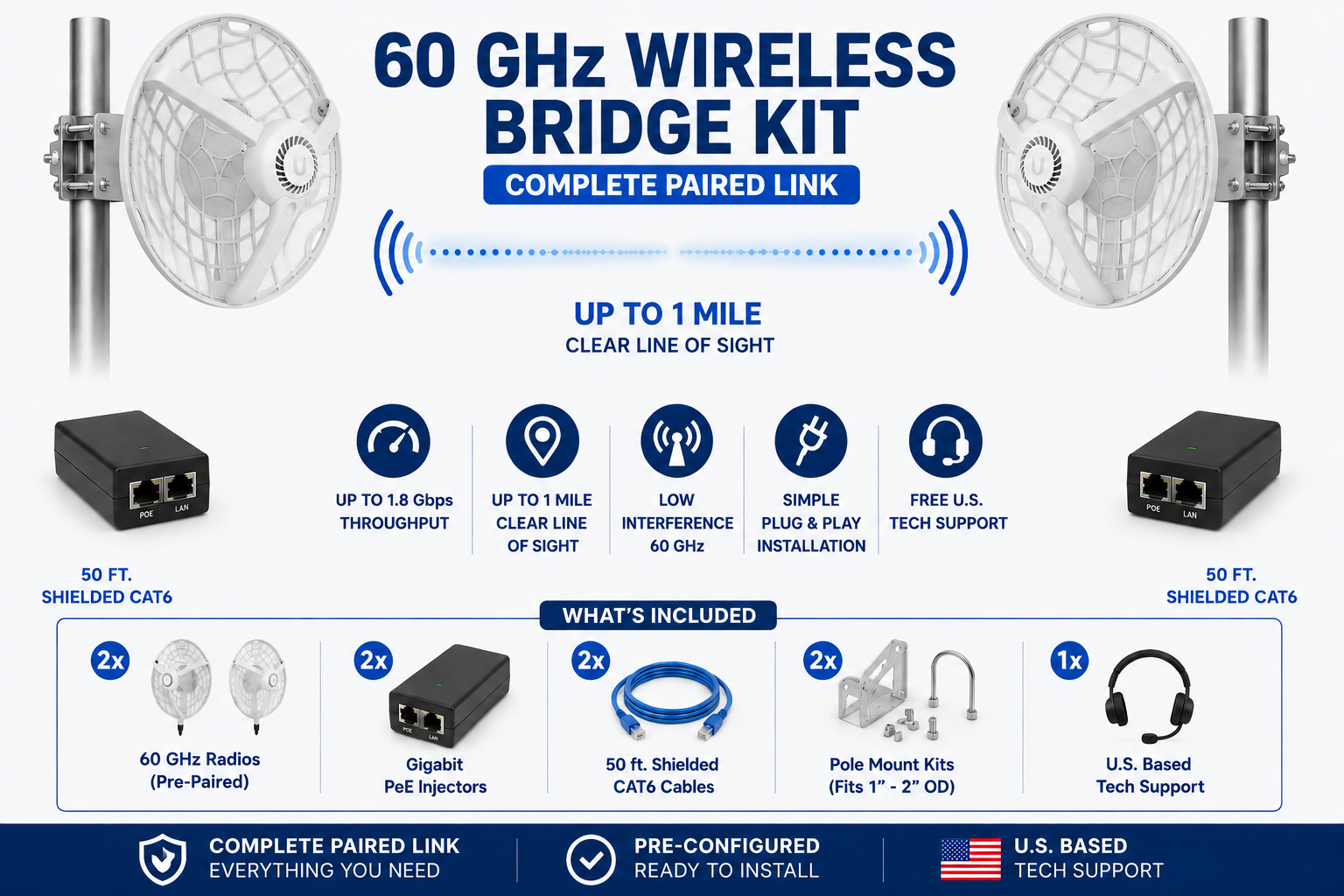

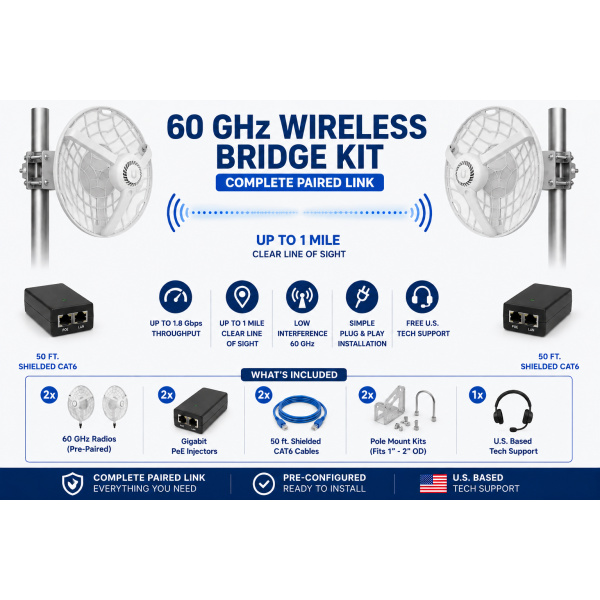

Complete Wireless Bridge Kit
Everything needed to create one complete wireless Ethernet bridge.
Included:
- (2) 60 GHz Long-Range Outdoor Bridge Radios
- (2) Precision Pole Mount Kits
- (2) 48V Gigabit PoE Injectors
- (2) 50 ft Shielded Outdoor CAT5e Ethernet Cables
- Pre-Configured & Paired
- Bench Tested Before Shipping
- U.S.-Based Technical Support
Why 60 GHz?
Unlike traditional wireless bridges operating in crowded Wi-Fi frequencies, 60 GHz provides a dedicated, low-interference connection for applications that demand maximum bandwidth and reliability.
Advantages include:
- Higher throughput than traditional 5 GHz links
- Extremely low latency
- Minimal RF interference
- Reliable Gigabit Ethernet performance
- Excellent for VoIP, IP cameras, video streaming, and large file transfers
Important: Because 60 GHz operates at a higher frequency, a clear line of sight is required for optimal performance.
Plug & Play Installation
Every GNS-5460-LR kit is professionally configured before shipment.
Simply:
- Mount both radios.
- Connect the supplied shielded Ethernet cables.
- Connect the included Gigabit PoE injectors.
- Align the antennas.
- You’re online.
No pairing. No programming. No complicated setup.
Compare Wireless Frequencies
Not sure if 60 GHz is the right choice?
Our Wireless Frequency Guide explains the differences between 900 MHz, 2.4 GHz, 5 GHz, 24 GHz, and 60 GHz, helping you choose the best wireless bridge for your environment.
👉 Read the Wireless Frequency Guide
Frequently Asked Questions
Does the GNS-5460-LR require line of sight?
Yes. 60 GHz performs best with a completely unobstructed path between antennas.
Can I share Starlink?
Yes. This kit is an excellent solution for extending Starlink, fiber, or cable Internet to a second building.
Is the bridge pre-configured?
Yes. Every kit ships paired, updated, and fully tested.
What Ethernet speed does it support?
Each radio includes a Gigabit Ethernet interface, supporting high-speed LAN connectivity while the wireless link delivers up to 1.8 Gbps under ideal conditions.
