Dual Polarity Panel Antenna 5.1-5.8 GHz, 21dBi Gain, 2×2 N-Female

$185.00

Part #: GNS-PA5821DP

5 GHz, Dual Polarity, 21dBi Panel Antenna, 2×2 NF

Availability: In Stock
MFG Part #: PA5821DP
Categories: , , ,

Description

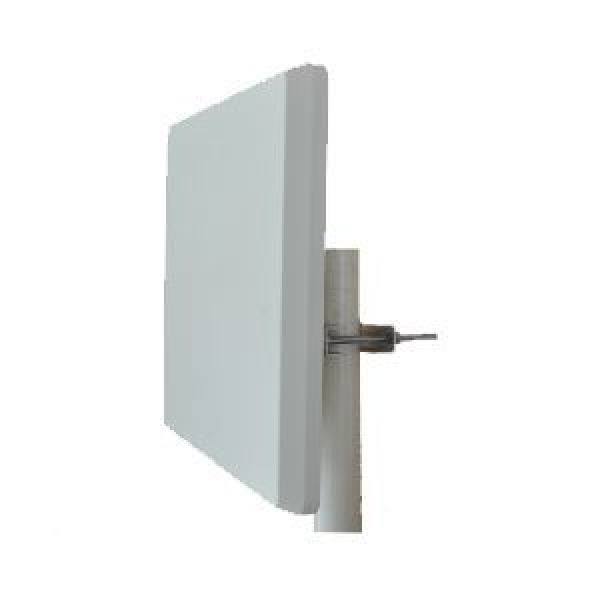

5 GHz Dual Polarity Panel Antenna 5.1-5.8 GHz, 21dBi Gain, 2×2 N-Female

The Wireless PD5821 is a professional high gain, dual polarized, outdoor rated flat panel antenna designed and optimized for use in the 5 GHz frequency band.  This innovative antenna has dual N-type female connectors, one for horizontal polarization and the other for vertical polarization, within the design of a single antenna package.

This antenna is designed to work with any 5GHz AP platform, 2×2 MIMO input/output.

The construction features a rugged UV resistant and stabilized polymer radome giving it long lasting durability in outdoor environments. The antenna is supplied with a robust articulating mounting bracket allowing the antenna to be mounted to a wall or pole.

For extended coaxial cable lengths, please contact GNS Wireless directly at (516) 214-0321

Frequency: 5150-5850 MHz

Bandwith: 700 MHz

Gain: 21 dBi

Horizontal Beamwidth: 15°

Vertical Beamwidth: 8°

VSWR: ≤2

Impedance-Ω: 50

Polarization: Vertical and Horizontal

Max Power: 50 W

Connector: N Female (2×2)

Dimensions: 14.9’x14.9’x1.3’ inches

Weight: 3.5 lbs. (without bracket)

Pole Diameter: 1.38’x2.95’ inches

Additional information

Weight 20.0000 lbs
Availability

In Stock

MFG Part #

PA5821DP

Downloads

PD5823C01 Datasheet Size: (413.37 KB)

Reviews

There are no reviews yet
