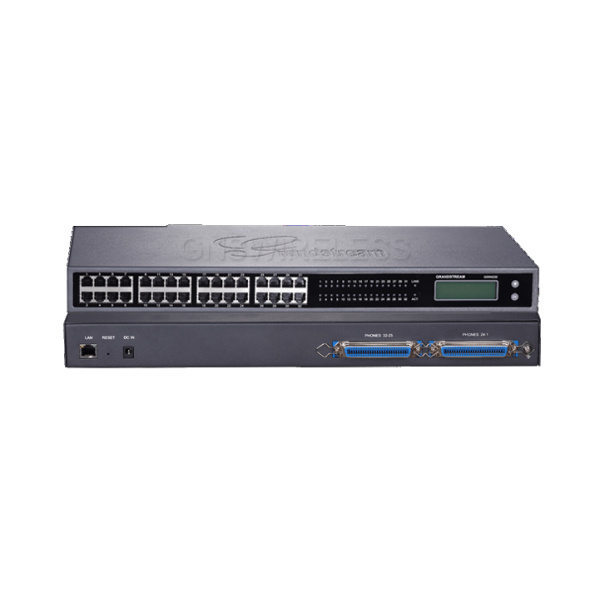

GXW4216 VoIP gateway w/ 16 telephone FXS ports

599

Part #: GXW4216

GXW4216 VoIP gateway w/ 16 telephone FXS ports

Brand:
Availability: In Stock
MFG Part #: GXW4216
Category:

Description

The GXW4216 VoIP Gateway offers small-to-medium sized business a cost-effective hybrid IP and analog telephone system that allows them to enjoy the benefits of VoIP communications while preserving investment on existing analog phones, Fax machines and legacy PBX systems. The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.

Technical Specs:

  • Telephone Interfaces: 16x RJ11 FXS ports plus 1x 50-pin Telco connector
  • Network Interfaces: 1x 10M/100M/10000Mbps auto-sensing RJ45 port
  • LED indicators: LAN Link, LAN Activity, Connection Per Telephone Port
  • LCD DIsplay: Backlit 128×32 graphic LCD display with support for multiple languages
  • Voice-over-Packet Capabilities: Carrier grade 128-ms-tail-length line echo cancellation, dynamic jutter buffer, modem detection & auto-switch to G.711
  • Voice Compression: G.711, G.723.1, G.726 (40/32/23/16), G.729 A/B, iLBC
  • Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kbps and auto-switch to G.711 for Fax Pass-through, Fax Datapump V.17, V.21, V.27ter, V.29 for T.38 fax relay
  • Telephony Features: Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial, flexible dial plan.
  • QoS: DiffServ, TOS, 802.1P/Q VLAN tagging
  • Network Protocols: TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, PPPoE, STUN, LLDP (pending)
  • DTMF Method: Flexible DTMF transmission methods including ln-audio, RFC2833, and/or SIP INFO
  • Signaling: SIP (RFC 3261) over UDP/TCP/TLS
  • SIP Server Profiles & Accounts Per System: 2 distinct SIP server profiles per system and an independent SIP account per telephone port
  • Provisioning: TFTP, HTTP, HTTPS, TR069
  • Security: SRTP, TLS/SIPS, HTTPS, 802.1x
  • Management: Syslog, HTTPS, Web browser, voice prompt, TR-069
  • Universal Power Supply: Output – 12VDC, 5A; Input – 100 ~ 240VAC, 50 ~ 60Hz
  • Environmental: Operating: 0° ~ 40°C; Storage: -20°C ~ 60°C; Humidity: 10% ~ 90% (non-condensing)
  • Electrical Protection: Over-voltage and over-protection (ITU-T Recommendation K.21, Basic Test Level)
  • Dimensions: 440mm (L) x 185mm (W) x 44mm (H)
  • Unit Weight: 2.39KG
  • Package Weight: 3.48KG
  • Mounting: Desktop and rack mount with front brackets
  • Short & Long Haul: 2 REN, up to 1500ft on 24 AWG wire
  • Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
  • Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current
  • Compliance: FCC: Part 15 (CFR 47) Class B; CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RoHS C-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950 ITU-T K.21 (Basic Test Level); UL 60950 (power adapter)
