900MHz, Non-Line of Sight, Short Range, Point to Point Wireless Bridge, 8dBi Antennas, High Power, WPA/WPA2 security, POE included, – Pre-Configured – Complete Link


Part #: GNS-1131N

900MHz NLOS, 500ft. Wireless Bridge,  – Complete Link

Availability: Out of Stock

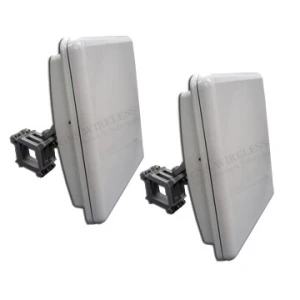

NOTE:  This is a discontinued item.  The 900 MHz replacement bridge is part# GNS-1138HP.

What’s included in this NLOS point to point 900 MHz wireless bridge package:

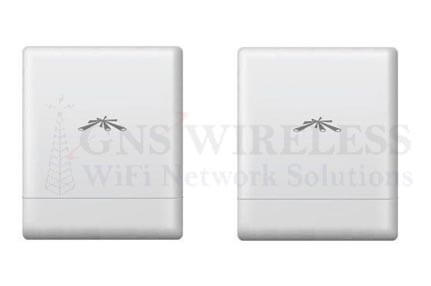

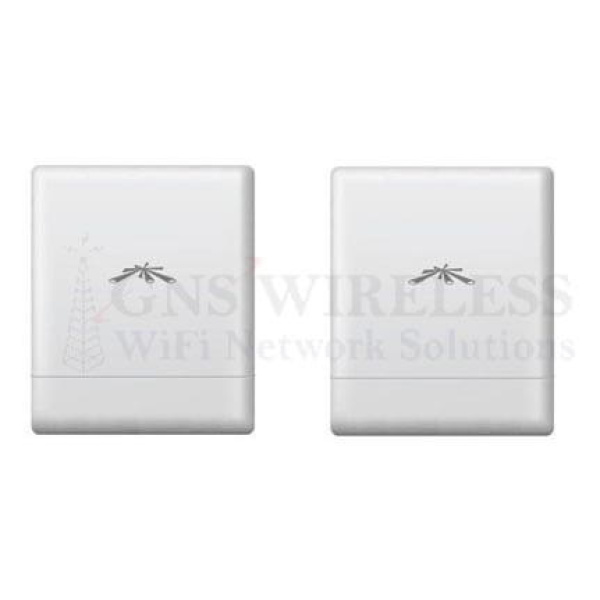

2x Outdoor Radios with 8dBi Integrated Antenna
2x Power over Ethernet Injector (PoE) | 10/100
2x Power Supply
2x 25ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-1.5″ OD mast

Bridge antennas are pre-configured for “out of the box” installation and operation. External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (25ft. Shielded cat5e is included).

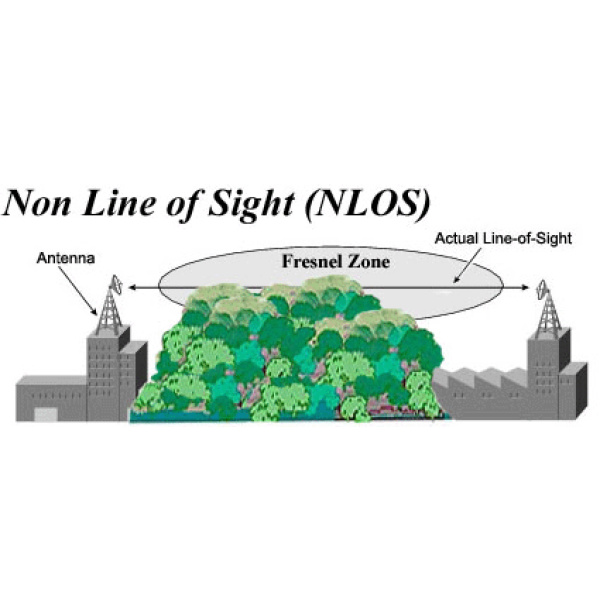

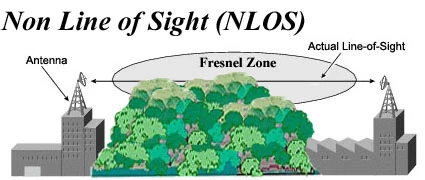

900MHz Point to Point Wireless Ethernet Bridge packages are used to connect 2 locations that are up to 500ft. apart, with trees blocking the signal path between them.  Maximum throughput of up to 150Mbps is available, however range, and obstructions will determine speed.  This is an aggregate data rate.  28dBm TX/RX power with adjustable output for closer installations is fully configurable using the web based interface on both radios.   The antennas have an integrated 8dBi panel antenna, external alignment LED’s, and will easily attach to a pole of 1″-2″ diameter. This non-line of sight wireless bridge will includes AES Encryption for maximum security, Power over Ethernet – Complete Link (Pair of Wireless Radios)

This 900MHz Point to Point Wireless Bridge includes a pair of outdoor access points, that have an integrated 8dBi directional patch antenna built into the outdoor enclosure. This means that only a single cat5e cable is required to connect the outdoor antenna to your indoor network switch at each end.   Once the AP’s are installed at each location, the Wireless Bridge operates as a transparent bridge, and will pass all network traffic between your two locations.   You will have the ability to share video, stream Netflix, have VoIP and stream video cameras across the wireless bridge package. The Non-Line of Sight Wireless Bridge operates similar to an invisible Ethernet cable connecting your two locations. Each antenna has a beam width of about 20°, so aligning the antennas is easy. Furthermore, you will have the ability to view real time signal strength, link quality, and noise level, using the web based configuration. Each AP has a static IP address, used strictly for web based configuration, and troubleshooting.

Maximum Range & Interference:

With clear, un-obstructed line of sight between your two locations, a maximum range of 500ft. can be achieved using this 900 MHz wireless bridge. When trees are present between your two locations, maximum distance will vary depending on density of trees. (Please note that exact distance with obstruction may depend on external interference) Please note that because this Point to Point Wireless Bridge operates at 900MHz, external interference from other cellular networks may slow down the transmission speed of the link, and even cause dropouts. To avoid interference between the Point to Point Wireless Bridge, and indoor wireless routers, or access points that may be present at each of your locations, you want to install the antennas as high as possible, and avoid as much obstruction as possible.

Additional information

Weight 20.0000 lbs
