900MHz, 100Mbps Point to Point Wireless Bridge, 12dBi Yagi Antennas, 25dBm TX/RX Power – 3/4 Mile Complete Link


Part #: GNS-1138HP

50Mbps, 900MHz, 3/4 Mile, Wireless Bridge,  – Complete Link

Availability: In Stock


No Line of Sight?  No Problem.

900 MHz Point to Point Wireless Bridge set of antennas will penetrate trees up to 3/4 mile distance.  Utilizing up to 20MHz channel width, connecting two locations with obstructions in the way has never been easier.


Whats included in this point to point link:

2x Outdoor Radios w/ 12dBi External Yagi Antenna
2x Power over Ethernet Injector (PoE) | 10/100
2x Power Supply
2x 50ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-1.5″ OD mast

Bridge antennas are pre-configured for “out of the box” installation and operation. Low power consumption and small form factor for quick wireless installation.  Excellent near and non line of sight propagation for reliable link speeds up to 1/2 or even 3/4 mile distance.  Up to 100Mbps capacity in a 20MHz channel width configuration.  Flexible channel selection of 5, 7, 10 and 20MHz.

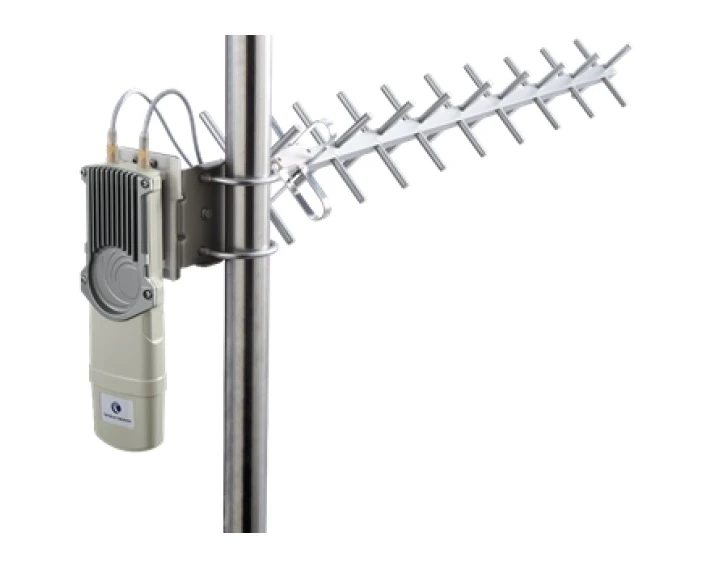

900 MHz Point to Point Wireless Bridge. Aggregate data rate will depend on your particular application.  25dBm transmit power with adjustable output for closer installations. The bridge radio will connect directly to the 12dBi yagi antenna with the included bracket. Includes 56-bi DES, FIPS-197, 128 bit AES Security.  Power over Ethernet injector included – Complete Link – 3/4 Mile NLOS

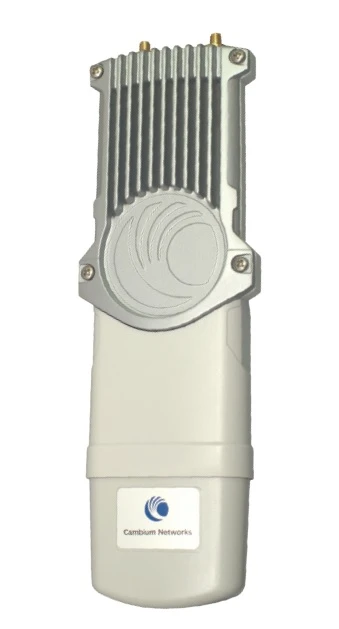

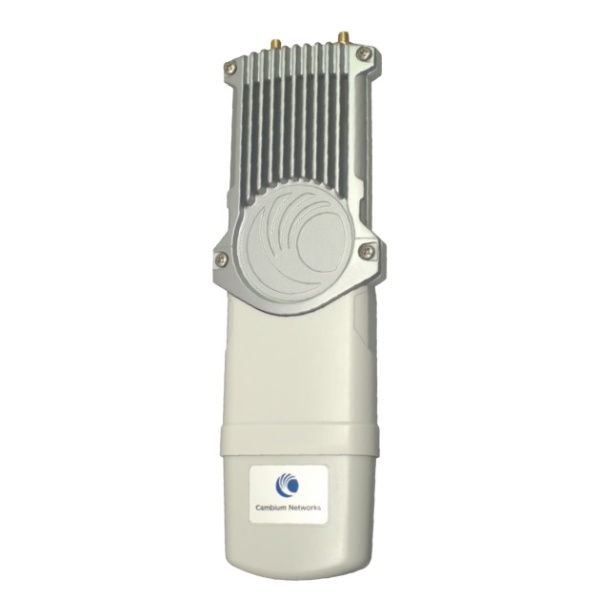

The 900 MHz Point to Point Wireless Bridge is great for data backhaul in conjected 2.4 or 5 GHz Wi-Fi areas, and even video surveillance applications.  The PTP 450 900MHz solution is based on the reliable and industry proven Cambium Networks 450 Platform.

The 12dBi Yagi antenna included with this kit is approximately 42″ in length.

Looking for Ubiquiti M900’s, or Nano M900, or RocketM900’s that are discontinued, we have this set of high power 900MHz point to point wireless bridge radios in stock, on the shelf, and ready to ship today.  Contact GNS WIRELESS for more information.

The maximum distance that a 900MHz point-to-point wireless link can reach depends on several factors, such as the terrain, line-of-sight, interference, antenna gain, and power output of the devices. Generally, a 900MHz point-to-point wireless link can cover distances up to several miles (2-5 miles or more) with a clear line of sight and high-gain directional antennas. However, in urban or densely populated areas, the range may be shorter due to interference from other wireless devices and obstacles such as buildings, trees, and hills.

It’s important to note that the effective range of a wireless link may vary significantly depending on the specific circumstances of the installation, and a site survey may be required to determine the optimal antenna placement and alignment to achieve the desired range and performance.

Additional information

Weight 40.0000 lbs

In Stock


900MHz Bridge Yagi Antenna Size: (735.93 KB)
