900MHz, 11Mbps Point to Point Wireless Bridge, 14dBi Yagi Antennas, 23dBm TX/RX Power, WPA/WPA2 security, POE/PS included, – Pre-Configured – 1/2 Mile Complete Link

Description

***Permanently discontinued from manufacturer.***  The only 900MHz Point to Point we carry in stock is now the GNS-1138HP.

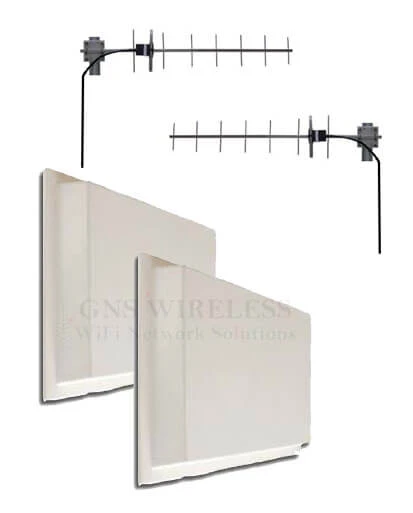

Whats included in this point to point link:

2x Outdoor Radios
2x 14dBi Yagi Antenna
2x  NM/NM Coaxial cable (5ft.)
2x Power over Ethernet Injector (PoE) | 10/100
2x Power Supply
2x 50ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-1.5″ OD mast

Bridge antennas are pre-configured for “out of the box” installation and operation. External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Shielded cat5e is recommended)

This Outdoor Access Point can be mounted outdoors, and connected directly to the outdoor 14dBi Yagi Antenna for maximum Wireless Range.  This unit can be powered through the integrated Power-over-Ethernet adapter that comes with the unit.  If you are looking to connect multiple locations without clear, unobstructed line of sight, then this solution will work for you.  When trees or other obstructions such as small homes or buildings are in between your two points, the GNS-1135 is the solution.

The 900MHz Outdoor Access Point can be placed up to 300ft. away from your network, with only a single cat5 cable connecting to it.  This makes your network Installation easier to install and maintain. Each Outdoor Access Point will be configured as a Point to Point Bridge, and will only communicate with each other.  These units can be configured with AES encryption for maximum security.  This means a safer, and more secure network connection for your LAN.

This Wireless Bridge is connecting at a frequency of 900 MHz, which means if you have large trees or other obstacles in the path of your Point-to-Point connection, you will still have a strong and solid wireless connection.  Simply mount the enclosure outside in the direction of your remote location, mount the yagi antenna, connect the cat5 network cable to your LAN, and you’re ready for connectivity.  This bridge includes security measures of 40 and 128bit  Access Control, and WPA.
