Description

802.3af/at/bt to 24V Passive PoE Converter

Features
• 10/100/1000Mb (Gigabit) Data Rate
• CAT5, CAT5e, CAT6, CAT6a Compatible.
• 802.3af, 802.3at, 802.3bt to 24V Passive PoE Converter
• PoE, PoE+ and PoE++ Compatible
• Shielded RJ45 Jacks and Full Metal Housing, Industrial Strength Operating Range -40C to +70C
• 12W Maximum Output Power, Patent Pending Functionality
• I.T.E. Power Supply, UL Listed

Applications
• Passive PoE Wireless Devices
• Passive PoE Security Cameras

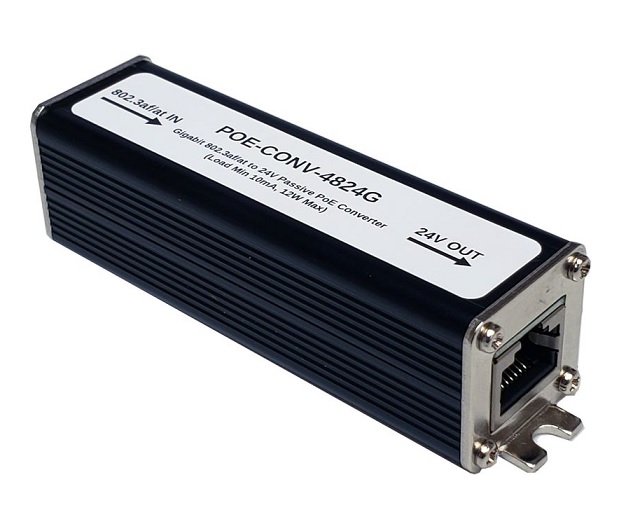

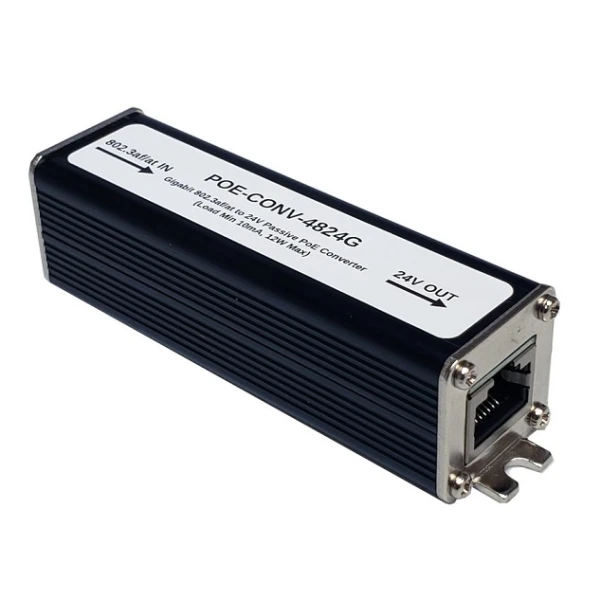

The Patent Pending Low-Cost POE-CONV-4824G is a Gigabit speed Active PoE(48VDC) to Passive PoE(24VDC) converter. The input can accept any standard PoE that meets IEEE802.3af/at/bt standards or 48V Passive PoE. The output is 24V Passive PoE up to 12W. They have a full metal body for improved EMI and surge suppression and have integral mounting tabs. The converters have built-in electrical surge, overload, and short circuit protections and a unique status indicator. Incorporating a rugged, compact, in-line design, they are perfect for indoor or outdoor use inside a weatherproof enclosure. Compatible with all 24V Passive PoE devices requiring 12W or less.
