Proxicast ANT810 Universal Adjustable Antenna Wall / Pole Mount

Description

Universal Articulating Mount for Outdoor Directional Antennas | Wall or Pole Mount | ±70° Tilt & Swivel

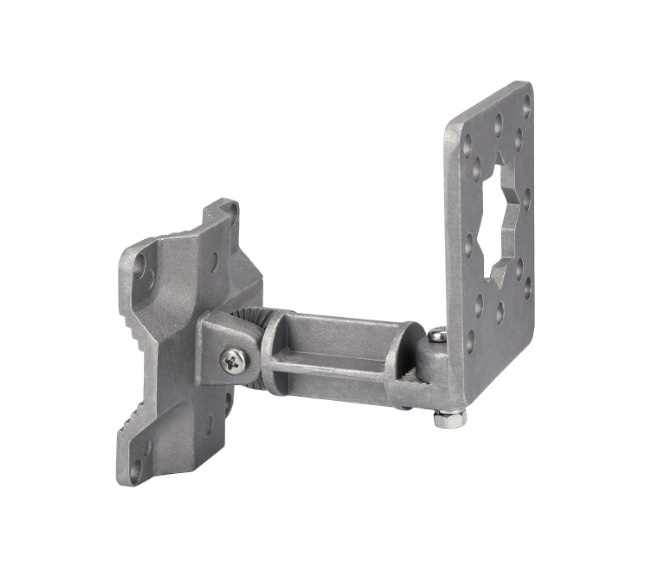

The Proxicast ANT-810 is a compact, adjustable mounting bracket designed for accurately positioning outdoor directional antennas and other equipment.

With independent up/down tilt and left/right swivel adjustment, the ANT-810 makes antenna alignment easier when a fixed mounting bracket does not provide enough flexibility. It is particularly useful for directional Wi-Fi, wireless bridge, cellular and other RF antenna installations where precise positioning can improve signal performance.

The bracket can be installed directly to a wall or other suitable flat surface, or attached to a mast or pole using the included mounting hardware.

Precise Antenna Alignment

Directional antennas work best when properly aimed toward the remote location. The ANT-810-AWB provides approximately ±70° of vertical tilt and ±70° of horizontal swivel, allowing the installer to fine-tune antenna position without relocating the mounting point.

Once the desired position is reached, the bracket can be securely locked into place.

Wall or Pole Mount Installation

The versatile mounting design supports both wall and pole installations.

For pole mounting, the bracket includes U-bolts and clamps and supports poles up to approximately 2 inches in diameter.

For wall or flat-surface installations, the mounting plate can be secured directly to the mounting surface using appropriate hardware.

Compact, Lightweight Design

Constructed from rust-resistant cast aluminum, the ANT-810 provides a durable mounting solution without the size and weight of larger antenna mounting assemblies.

The bracket weighs approximately 5.8 oz. while supporting equipment weighing up to 11 lbs.

Key Features

• Universal adjustable antenna mounting bracket

• Wall or pole mounting

• Up/down adjustment: ±70°

• Left/right adjustment: ±70°

• Supports mounting poles up to 2″ diameter

• Rust-resistant cast aluminum construction

• Adjustable bracket locks securely into position

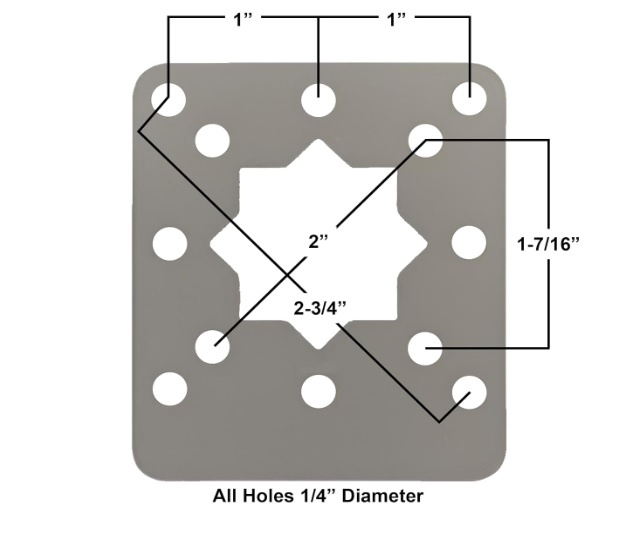

• Pre-drilled universal mounting plate

• Compatible with many 2-bolt and 4-bolt directional antennas

• Large center opening provides clearance for antenna connectors and cables

• Suitable for indoor and outdoor installations

• Maximum equipment load: 11 lbs.

• Pole mounting U-bolts and hardware included

Ideal Applications

The ANT-810 is an excellent mounting solution for:

• Outdoor Wi-Fi antennas

• Point-to-point wireless bridge antennas

• Point-to-multipoint antennas

• Directional panel antennas

• Cellular / 4G LTE / 5G antennas

• Wireless ISP equipment

• RF monitoring antennas

• Security cameras

• Outdoor lighting

• Speakers and other lightweight outdoor equipment

Specifications

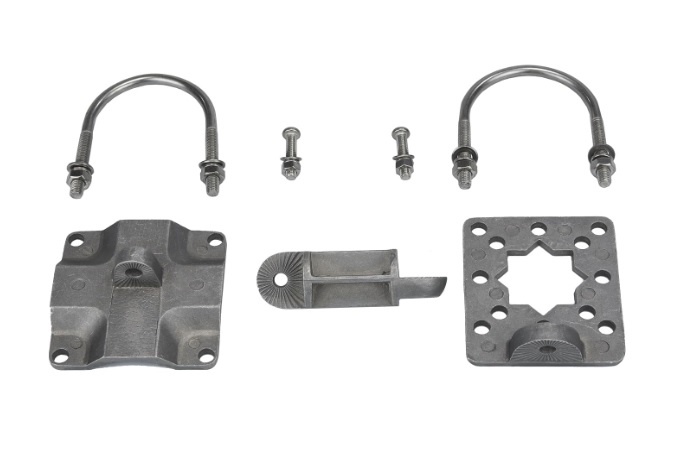

What’s Included

• Proxicast ANT810 articulating bracket

• 2-inch pole mounting U-bolts

• Pole clamps

• Mounting hardware

A Versatile Replacement for Older Articulating Antenna Mounts

The ANT810 is a practical option when replacing older or discontinued universal articulating antenna mounting brackets.

Its compact design, 2-inch pole capability, dual-axis adjustment and universal mounting plate make it suitable for many existing directional antenna installations where the original mounting hardware is no longer available.

Need help determining whether this bracket will fit your antenna?

Contact GNS Wireless with the antenna manufacturer and model number. We can help determine mounting compatibility before ordering.
