Description

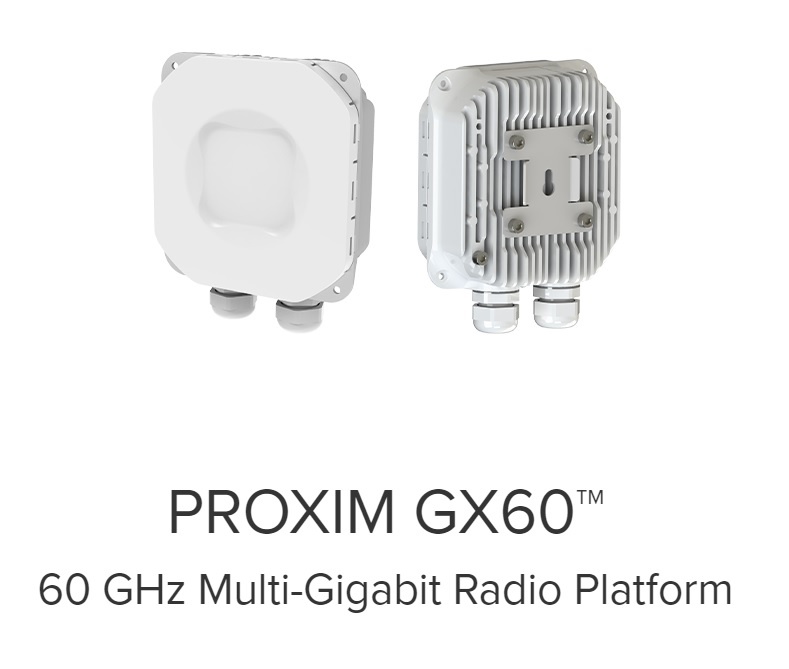

Compact 2 Gbps 60 GHz Wireless Infrastructure
The Proxim GX60-6019X-US combines high-capacity 60 GHz wireless performance with an exceptionally compact outdoor form factor. Designed for both point-to-point (PTP) and point-to-multipoint (PTMP) networks, the GX60 provides a flexible way to extend high-speed Ethernet connectivity without trenching or running fiber between network locations.
Why Choose the Proxim GX60?
A compact 60 GHz platform built for high-capacity outdoor network infrastructure.
Compact Form Factor
Approximately 5 × 5 × 2 inches. The GX60 delivers multi-gigabit wireless capability in a compact enclosure that is easy to integrate on poles, buildings and outdoor network structures.
Clean Wireless Spectrum
Operates in the 57–71 GHz spectrum, keeping high-capacity backhaul away from the 2.4 GHz and 5 GHz frequencies commonly used by Wi-Fi clients.
Point-to-Point
Create a high-capacity wireless Ethernet connection between two locations without installing new underground cable or fiber.
Point-to-Multipoint
Deploy the GX60 as an Access Point and distribute high-capacity connectivity to multiple GX60 Station locations across its beamforming coverage area.
High-Capacity 60 GHz Connectivity Without Running Fiber
The Proxim GX60 provides a flexible way to extend high-speed Ethernet connectivity between buildings, poles and remote network locations without the time and expense associated with trenching new cable.
Its use of the 60 GHz spectrum is particularly useful in environments where conventional 2.4 GHz and 5 GHz frequencies are already busy. Backhaul traffic can operate separately from the frequencies typically serving Wi-Fi clients.
The same GX60 hardware can operate as either an Access Point or Station, allowing it to support both dedicated point-to-point connections and larger point-to-multipoint network designs.
Small Radio. Serious Network Capacity.
One of the GX60’s biggest advantages is its physical size. Measuring approximately 5 × 5 × 2 inches and weighing less than one pound, the GX60 is exceptionally compact for a multi-gigabit outdoor backhaul radio.
Its integrated phased-array antenna can also eliminate the need for a separate sector antenna in many applications, resulting in a cleaner installation with less equipment mounted on the pole or structure.
Integrated 90° Beamforming Antenna
The GX60-6019X-US incorporates a 16 dBi 3D beamforming phased-array antenna directly into the compact radio enclosure.
±45° / approximately 90° total
±25° / approximately 50° total
This wide electronically controlled coverage is especially useful for point-to-multipoint installations because multiple Station radios can communicate with a central Access Point across the coverage sector.
Ideal GX60 Applications
- RV parks and campgrounds
- Marinas and yacht clubs
- Outdoor Wi-Fi infrastructure
- Industrial yards
- Warehouses
- Campus networks
- Security camera backhaul
- Municipal facilities
- Construction sites
- Storage facilities
- Farms and agricultural properties
- Building-to-building connectivity
2.5 Gigabit Ethernet + PoE Output
The GX60 includes a 2.5 GbE RJ45 Ethernet interface with 802.3at PoE input, providing a wired interface capable of supporting its high wireless capacity.
A secondary 1 GbE Ethernet interface provides 48VDC PoE output up to 0.5A. This can simplify installations where compatible network equipment is installed alongside the GX60 on the same pole or structure.
Built for Outdoor Networks
- IP67-rated outdoor enclosure
- Operating temperature: -22°F to 131°F (-30°C to 55°C)
- 100% relative humidity
- Wind loading up to 112.5 mph (180 km/h)
- Approximately 5 × 5 × 2 inches
- Approximately 0.94 lb.
Technical Specifications
| Model | GX60-6019X-US |
| Manufacturer P/N | 915-00001 |
| Wireless Capacity | Up to 2 Gbps |
| Frequency | 57–71 GHz, subject to country regulations |
| Network Configuration | Point-to-Point / Point-to-Multipoint |
| Operating Role | Access Point / Station |
| Integrated Antenna | 16 dBi 3D beamforming phased array |
| Antenna Coverage | 90° horizontal / 50° vertical |
| Primary Ethernet | 2.5 GbE RJ45, 802.3at PoE input |
| Secondary Ethernet | 1 GbE RJ45, 48VDC / 0.5A PoE output |
| Weather Rating | IP67 |
| Dimensions | Approx. 5 × 5 × 2 in. (130 × 120 × 55 mm) |
| Weight | Approx. 0.94 lb. (0.425 kg) |
| Warranty | 1 Year |
What’s Included
- 1 × Proxim GX60-6019X-US radio
- Integrated 90° beamforming phased-array antenna
- Weatherproof cable glands
- US power injector and applicable power cord
- Mounting backplate
- Hose clamp
Need Help Designing Your GX60 Network?
GNS Wireless can assist with GX60 radio placement, point-to-point and point-to-multipoint topology, line-of-sight planning, backhaul design and outdoor Wi-Fi integration.
For RV parks, marinas, industrial properties, campuses and other outdoor networks, send us a site layout or description of your application and we can help determine the appropriate network configuration.
