Description

60 GHz License Free PTP Wireless Backhaul

This 500Mbps Full Duplex Point to Point wireless backhaul is upgradable to 1000Mbps via software upgrade, EH-UPG-500-1000.

The EtherHaul-600TX complete link includes a pair of 60GHz radios delivering ultra high capacity wireless point-to-point Ethernet connectivity.  Ideally suited for the installation where a small form factor is critical.  The size of this wireless bridge antenna stands at only 6″x6″ and can be mounted virtually anywhere.  Mounting above a street light, on a public stret pole, or lamp post is no problem, as the included mounting bracket takes up hardly any room at all.
Operating over the unlicensed 60GHz band, the palm-sized radio provides backhaul to small cells, WiFi hotspots, security cameras or any device deployed on lamp posts, poles, traffic lights and buildings.

Product Features

• The EtherHaul 600-TX is the world’s smallest backhaul radio. Only 6″ square.
• Upgradable to 1000Mbps, Gigabit capacity using a optional software license upgrade
• Fast installation by a single technician
• Fast frequency planning and site acquisition in the interference free 57-64 GHz unlicensed band
• This all-outdoor small cell wireless backhaul box contains a built-in Gigabit switch and 2 extra Ethernet ports, so you can deploy in cascade, ring or any high resilience topology your network requires, all standards-based
• PoE-In and PoE-Out: eliminates need for external devices used for servicing network elements such as cameras and Wi-Fi APs

Typical Applications

• Small Cell Wireless Backhaul
• Wireless Security Networking
• Wi-Fi Hotspot Backhaul and Wi-Fi Hotspot Equipment
• Urban Fiber Extension and Fiber Replacement
• Urban Campus Wireless Connectivity

Product Specifications

• Frequency, duplexing scheme: 57-64 GHz, TDD
• Modulation: QPSK-2/QPSK-2/QPSK-3/QAM16/QAM64
• Adaptive rate: Hitless adaptive bandwidth, coding and modulation, boosting system gain by 15dB
• Throughput: Up to 1000Mbps aggregated (with asymmetric.symmetric downlink/uplink rate)
• Typical link distance: 200-500m / 650-1600ft
• Interfaces: 3x GbE copper ports
• Antenna: Integrated, 35dBi
• Power options: PoE+ (IEEE 802.3at) or wide range input
• Network topologies: Ring, daisy chain, mesh
• Encryption: AES 128-bit and 256-bit
• Management, provisioning & commissioning: Web GUI (one click management of local &remote units), embedded CLI,SNMPv2/3, in-band, out-of-band, Zero touch turn-up, TACACS+, RADIUS
• Environmental: Operating temperature: -45° – +55°C, Ingress protection rating: IP67
• Regulatory: ETSI EN 302 217, UK IR 2078 & IR 2000, USA FCC Part 15.255, EMC, IC Canada, safety
• Dimensions per ODU: (H x W x D) – 15 cm x 15.5 cm x 9cm (5.9″ x 6.1″ x 3.54″)
• Weight (ODU + Antenna): 1.8 kg (3.9 lbs)

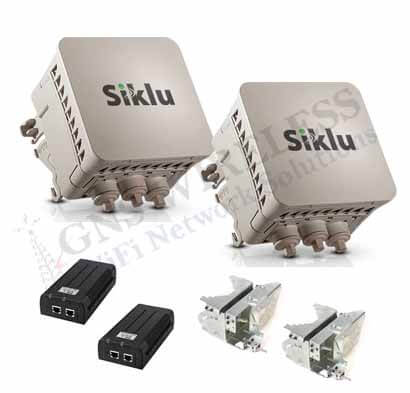

EH-600TX-KIT Package Includes

• (2) EH-600TX-ODU-PoE: Siklu Etherhaul-600TX ODU with Integrated Antennas
• (2) EH-600-MK: Siklu Mounting Kit for Etherhaul-600 ODU
• (2) EH-E-PSU-AC: 48VDC Extended Temp Power Supply for EtherHaul, 90-240VAC
