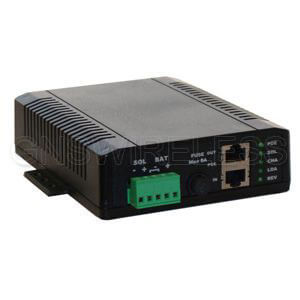

24V in 24V out POE/Solar Charge Controller

Description

PoE/Solar 8A Dual Input Battery Charging Controller 24V Battery; 24V Passive PoE out. Up to 270W panel. 2.6A  PoE Input. 60W Total Output.

Tycon Power Systems PoE/Solar charge controllers have dual inputs to charge batteries from a PoE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications.

The solar input can handle up to 8A. The PoE input up to 2.6A. They have a built in PoE inserter that delivers 24V 1A at the PoE out port. They also have a secondary wire terminal 24V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.

The built-in over discharge protection and low self consumption ensures the battery is not over discharged, which greatly increases the life of the batteries.

They have five LED indicators to give a quick visual status if current is being supplied by a PoE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.

Solar and Battery Connections are via 4 wire terminals for wire size up to 12AWG. PoE Input and Output is via 2 RJ45 shielded connectors.

The controllers are externally fused with a standard replaceable fuse.

Features
• Dual Input – Charges 24V Batteries from Solar Panel and / or Passive PoE
• Supports up to 60W Device Load
• Regulated Output Voltage
• Compact and high temperature operation
• Low self consumption < 0.5W

Applications
• Remote Power Systems; Surveillance, Sensors
• Wireless Stations ; AP / Client / Repeaters
• UPS Systems ; Lighting, Fences, Gates
