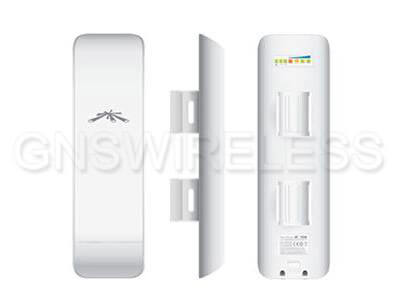

Ubiquiti NSM5, 5GHz NanoStation 2×2 MIMO AP


Part #: NSM5

Ubiquiti NSM5, 5GHz NanoStation 2×2 MIMO AP

Availability: Out of Stock
MFG Part #: NanoStation-M5


NanoStation M5: 5GHz Hi Power 2×2 MIMO AirMax TDMA Station.

The original NanoStation set the bar for the world’s first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2×2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.

Ubiquiti NSM-5 NanoStation M5:

  • Processor: Atheros MIPS 74KC, 560 MHz
  • Memory: 64 MB DDR2
  • Networking Interface: 2 x 10/100 Ethernet ports
  • Wi-Fi Standards: 802.11a/n
  • Operating Frequency: 5 GHz
  • Gain: 16 dBi
  • Polarization: Dual Linear
  • Max. Power Consumption: 8 Watts
  • Power Supply: 24V, 0.5A PoE Adapter (included)
  • Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
  • ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature: -30°C to 80°C (-22°F to 176°F)
  • Operating Humidity: 5% to 95% non-condensing
  • Dimensions: 294 x 31 x 80 mm (11.57 x 1.22 x 3.15 inches)
  • Weight: 0.4 kg (0.88 lb)
  • Certifications: CE, FCC, IC

The Ubiquiti NSM-5 NanoStation M5 is a high-performance outdoor wireless access point designed for point-to-point and point-to-multipoint applications. It features a sleek and compact design, making it suitable for deployments with space constraints. The device is powered by Ubiquiti’s airOS software, which provides a variety of advanced features such as wireless settings, device configuration, and management tools. The NSM-5 also includes a PoE adapter for easy installation and setup.


Additional information

Weight 10.0000 lbs

Out of Stock

MFG Part #



Ubiquiti_NanoStation_M_Datasheet.pdf Size: (7.43 MB)
