Description

XV2-23T Outdoor Wi-Fi 6 Access Point

Commercial Outdoor Wi-Fi Designed for Campgrounds, RV Parks, Marinas & Large Outdoor Properties

The XV2-23T Outdoor Wi-Fi 6 Access Point delivers enterprise-grade wireless performance in a compact, all-in-one outdoor design. Featuring integrated high-gain omni-directional antennas, advanced Wi-Fi 6 technology, and cloud-based management, the XV2-23T provides reliable outdoor coverage for guests, customers, staff, and connected devices.

Designed for demanding outdoor environments, this access point is ideal for RV parks, campgrounds, marinas, resorts, schools, industrial facilities, and outdoor event venues where dependable wireless coverage is critical.

The integrated antenna design simplifies installation while reducing equipment costs and visual clutter. In open outdoor environments, a single XV2-23T can provide Wi-Fi coverage up to approximately 250 feet in all directions.

Whether you’re building a new wireless network or upgrading an aging system, the XV2-23T delivers the speed, reliability, and scalability required for modern outdoor Wi-Fi deployments.

Need help designing a complete outdoor Wi-Fi system? Call GNS Wireless today at (877) 209-5152 for a free consultation.

Outdoor Access Point Buying Guide

Compare outdoor access point coverage, Wi-Fi 6 performance, mounting options, and recommended applications.

→ View Outdoor Wireless Access Point Guide

Wi-Fi 6 Performance

The XV2-23T utilizes the latest Wi-Fi 6 (802.11ax) technology to provide faster wireless speeds, increased network capacity, and improved performance in environments with many connected users.

Benefits of Wi-Fi 6

• Faster wireless speeds
• Increased device capacity
• Reduced network congestion
• Improved streaming performance
• Better voice and video quality
• Lower latency for real-time applications
• Improved battery efficiency for connected devices

Guests can stream video, browse the web, participate in video calls, and connect multiple devices simultaneously without the performance limitations often experienced on older Wi-Fi systems.

Integrated High-Gain Omni-Directional Antenna

Unlike traditional outdoor access points that require separate antennas, the XV2-23T includes integrated high-performance omni-directional antennas.

Antenna Specifications

• 5 GHz: 10 dBi Omni-Directional
• 2.4 GHz: 7 dBi Omni-Directional

Benefits

• Simplified installation
• Reduced wind load
• Fewer connection points
• Lower installation costs
• Professional appearance
• Consistent 360° coverage

This design makes the XV2-23T particularly popular for campground WiFi, RV park WiFi, marina WiFi, and outdoor hospitality applications.

Built for Harsh Outdoor Conditions

The XV2-23T is engineered for year-round outdoor operation.

Its rugged enclosure protects against:

• Rain
• Snow
• Dust
• Salt air
• High humidity
• Extreme temperatures
• UV exposure
• Wind-driven weather

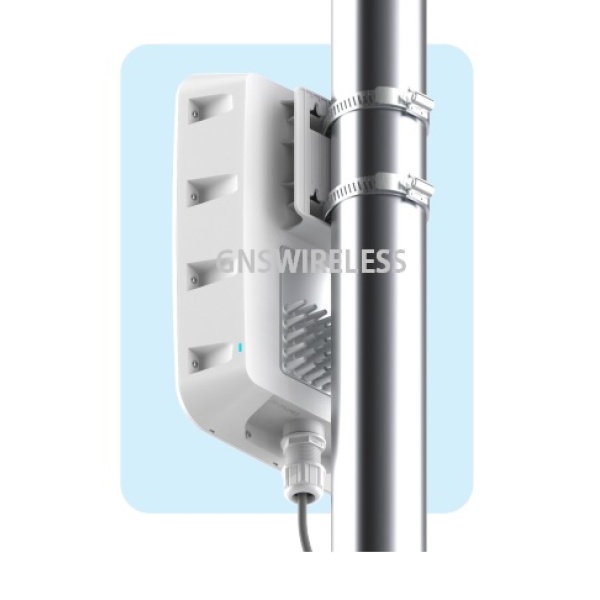

Whether mounted on a utility pole, building, marina dock, pavilion, or outdoor structure, the XV2-23T is built to deliver reliable performance in challenging environments.

Cloud-Based Network Management

Manage a single access point or hundreds of devices from anywhere.

The XV2-23T supports multiple management options including:

• cnMaestro Essentials
• cnMaestro X
• On-Premises Management
• Mobile App Management

Management Features

• Remote monitoring
• Firmware updates
• Network analytics
• Client visibility
• Device health monitoring
• Multi-site management
• Performance reporting

Unlike many competing access points, you are not locked into a single management platform.

Fast Roaming Support

For larger wireless networks utilizing multiple access points, the XV2-23T supports advanced roaming technologies including:

• 802.11r Fast Roaming
• Opportunistic Key Caching (OKC)
• Enhanced Roaming Support

Users can move throughout the property while maintaining a seamless connection.

This is especially important for:

• RV Parks
• Campgrounds
• Marinas
• Resorts
• School Campuses
• Outdoor Venues

Enterprise Security

Protect your network with advanced wireless security features including:

• WPA3 Security
• WPA2 Enterprise
• 802.1X Authentication
• AES Encryption
• Guest Isolation
• VLAN Support
• Multiple SSIDs

The XV2-23T supports up to 16 SSIDs, allowing separate wireless networks for:

• Guests
• Staff
• Security Cameras
• Point-of-Sale Systems
• IoT Devices
• Maintenance Personnel

Power Over Ethernet (PoE)

The XV2-23T supports both 802.3af and 802.3at Power over Ethernet.

Benefits

• Single cable installation
• Lower installation costs
• No local power outlet required
• Easier deployment on poles and buildings

56V PoE Injector Not Included

For optimal performance, use CAT6 Ethernet cable and keep cable lengths under 328 feet (100 meters).

Ideal Applications

The XV2-23T is commonly deployed for:

• Campground WiFi
• RV Park WiFi
• Marina WiFi
• Resort WiFi
• Outdoor Hospitality Networks
• School Campuses
• Public Parks
• Outdoor Event Venues
• Industrial Facilities
• Municipal Properties
• Storage Facilities
• Agricultural Operations

Technical Specifications

Wireless Standards

• IEEE 802.11a/b/g/n/ac Wave 2/ax
• Dual-Band Wi-Fi 6

Radio Configuration

• 5 GHz: 2×2 MIMO
• 2.4 GHz: 2×2 MIMO

Maximum PHY Rates

• 5 GHz: 2.4 Gbps
• 2.4 GHz: 573 Mbps

Ethernet

• 1 x 10/100/1000 Mbps Ethernet Port

Antennas

• 5 GHz: 10 dBi Omni
• 2.4 GHz: 7 dBi Omni

Maximum EIRP

• 5 GHz: 36 dBm
• 2.4 GHz: 34 dBm

Security

• WPA3
• WPA2 Enterprise
• WPA2 AES
• 802.1X Authentication

Frequently Asked Questions

How far will the XV2-23T cover?

Coverage depends on client device capability, obstructions, and environmental conditions. In open outdoor areas, a single XV2-23T can typically provide usable Wi-Fi coverage up to approximately 250 feet in all directions. For larger properties, multiple access points can be deployed to provide seamless coverage.

Is the XV2-23T a good choice for RV parks and campgrounds?

Yes. The integrated omni-directional antenna, Wi-Fi 6 performance, cloud management, and outdoor-rated enclosure make it one of the most popular access points for RV parks, campgrounds, and outdoor hospitality environments.

Can guests stream Netflix, YouTube, and other services?

Absolutely. When paired with adequate internet service, the XV2-23T provides the capacity needed for modern streaming applications, video conferencing, web browsing, and multiple connected devices.

Does the XV2-23T support roaming between access points?

Yes. The XV2-23T supports 802.11r Fast Roaming and enhanced roaming features, allowing users to move throughout a property without manually reconnecting to Wi-Fi.

Does this access point require a controller?

No. The XV2-23T can operate independently or be managed through cnMaestro cloud management for centralized administration.

Can I power the XV2-23T using PoE?

Yes. The access point supports both 802.3af and 802.3at PoE, allowing power and data to be delivered through a single Ethernet cable.

How many devices can connect?

The XV2-23T is designed for high-density wireless environments and can support dozens of active users simultaneously. Actual capacity depends on bandwidth requirements, application usage, and available internet service.
